CanRemoteFinalV2

STDCanRemoteFinalV2

tag

138
0
0
0
Mode:Full

License

GPL 3.0

Cloned fromCanRemoteFinal
Creation time:2024-08-21 16:17:20Update time:2024-08-21 17:46:26

Description

This is the "Final" (at least ... the latest / workable / usable version).

For cost savings, this is a "hybrid" version: not a full on-pcb component board.

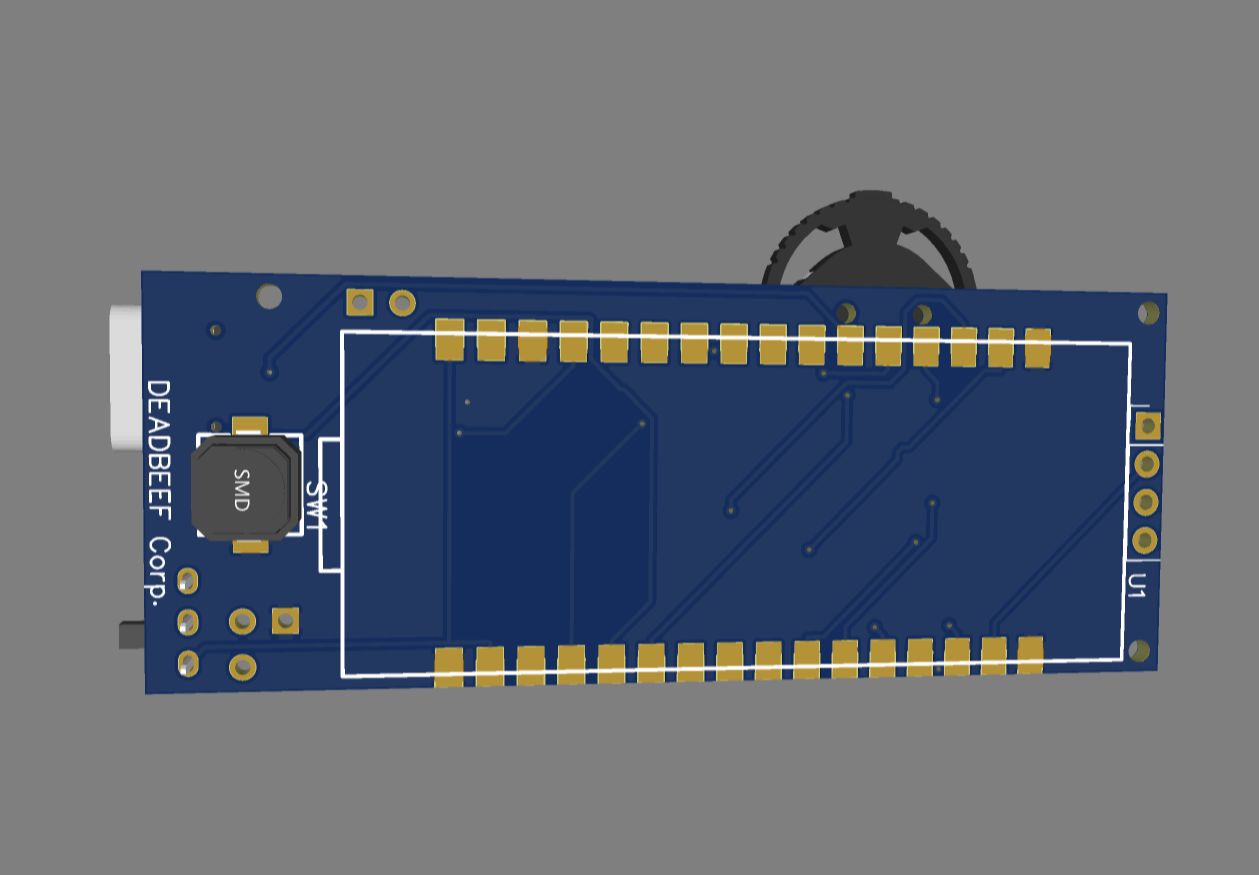

The PCB from this project allows to easily put together the needed modules :

- LuatOS ESP32-C3

- E220-400T22D (or ... any other 7 pin lora EBYTE module ...)

- Whatever power / BMS Module you prefer : LX-LCBSD, J5019 ... must accept 5V input (USB), manage battery and deliver 5V output

- 4 pin I2C OLED screen



Design Drawing

The preview image was not generated, please save it again in the editor.

BOM

Bom empty
