STD GSL檢察機3軸-松下-中文版 copy
License: Public Domain
Mode: Editors' pick
Cloned from GSL檢察機3軸-松下-英文版
- 0
Update time：
2020-08-25 00:02:06
Creation time：
2020-06-06 04:15:18
Description
20200606
Design Drawing
schematic diagram
（
1
/
）
-
IO copy copy
Open in Editor -

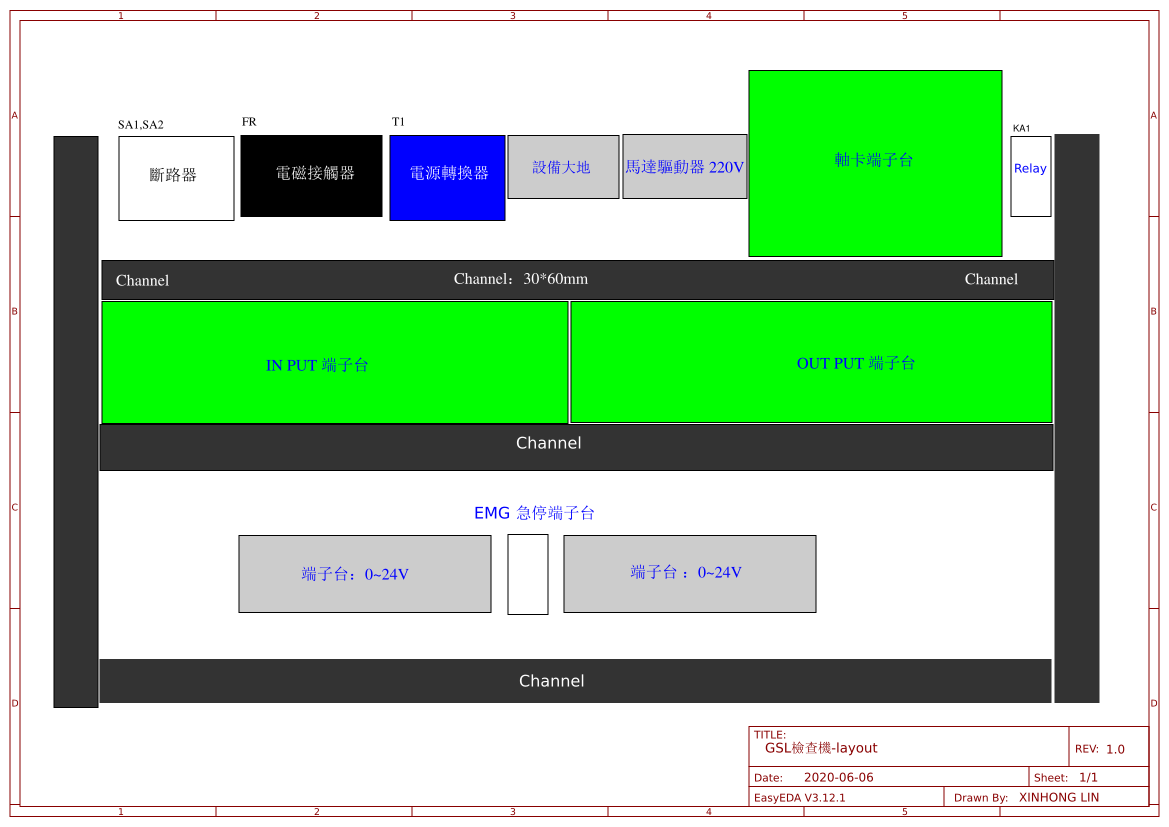

Layout copy copy
Open in Editor -
Computer copy copy
Open in Editor -
MotorDriver Upper copy copy
Open in Editor -
MotionControl Upper copy copy
Open in Editor -
Button copy copy
Open in Editor -
Sensor copy copy
Open in Editor -
Power 單相 copy copy
Open in Editor -

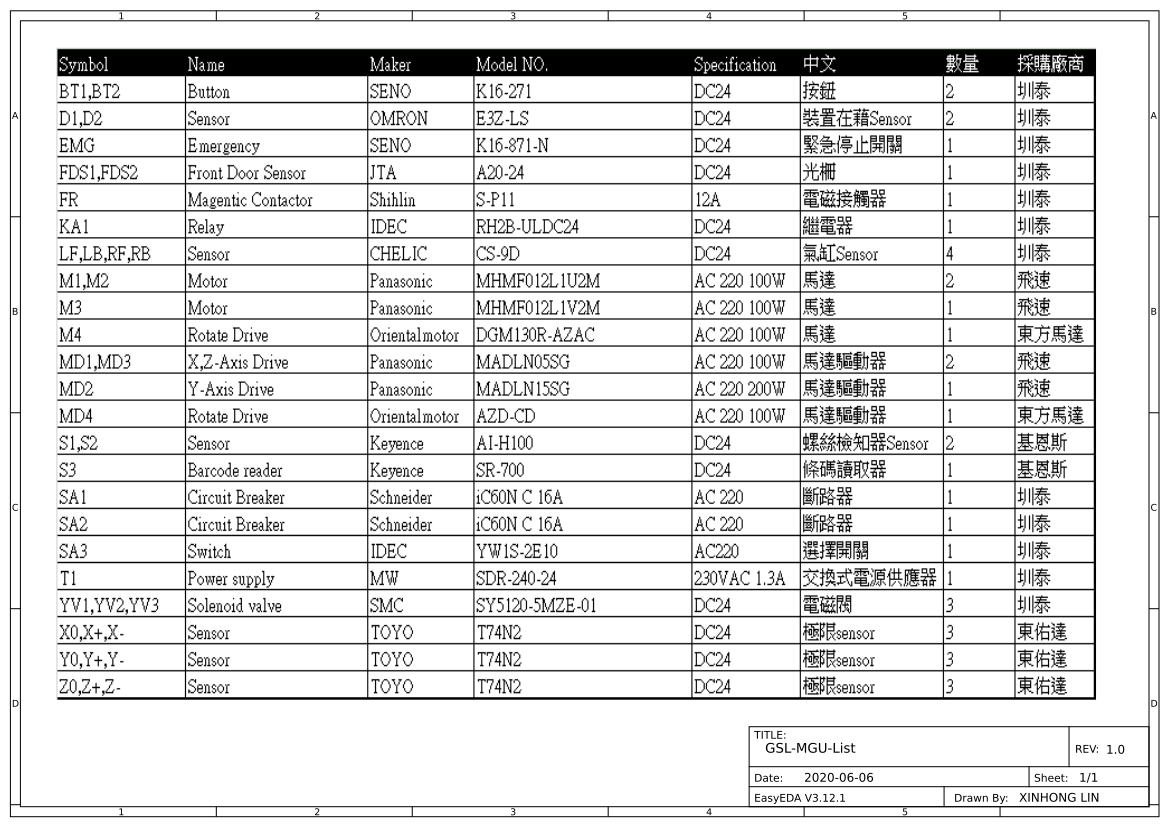

List copy
Open in Editor -
電路符號
Open in Editor
PCB
（
1
/
）
The preview image was not generated, please save it again in the
editor.
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | RH2B-ULDC24 | K1 | PY08-02 | 1 |
| 2 | CAMERA | U1,U2,U3,U4,U5,U6,U8,U9,U10 | 3-PIN CONNECTOR | 9 |
| 3 | LED | LED1,LED2,LED3 | LED-603 | 3 |
| 4 | DS1037-09FNAKT74-0CC | COM5,COM3 | DSUB9-1 | 2 |
| 5 | COM6 | COM6 | DSUB9-1 | 1 |
| 6 | COM3 | COM24 | DSUB9-1 | 1 |
Unfold
