STD BTN7971双电机驱动
No Profile
Description
BTN7971电机驱动
Design Drawing

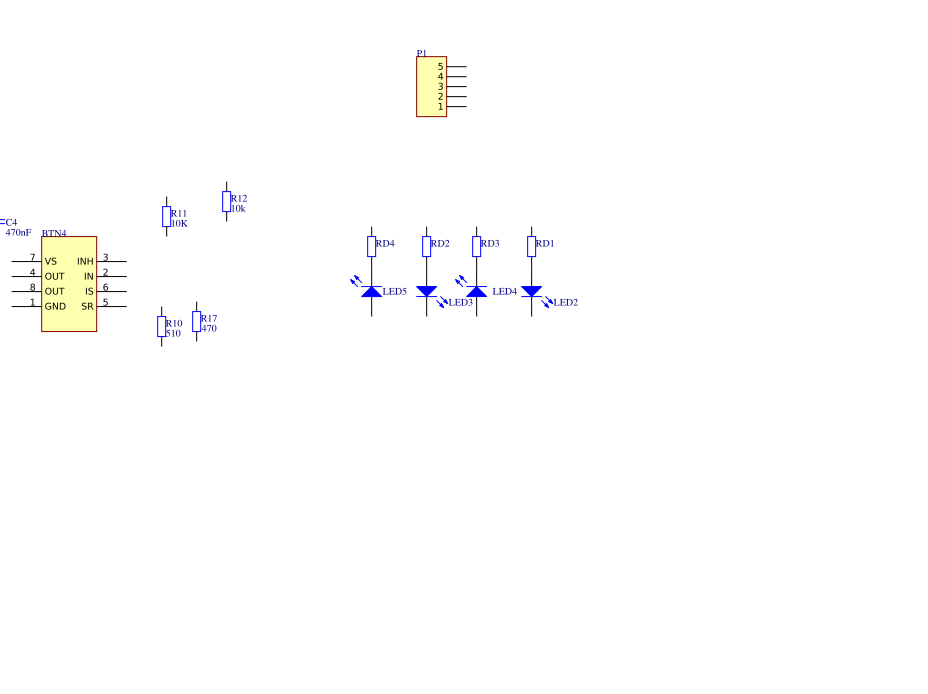

schematic diagram
（
1
/
）
PCB
（
1
/
）
Empty
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | 2K | R1,RD1,RD3,RD2,RD4 | 0805 | 5 |
| 2 | LED3 | LED1,LED2,LED4,LED3,LED5 | 0805 | 5 |
| 3 | KEY | ! | KEY | 1 |
| 4 | Header 2 | J1,J2,J3 | 电源线插座 | 3 |
| 5 | BTN7960 | BTN2,BTN4,BTN1,BTN3 | BTS7960 | 4 |
| 6 | ! | BTN1,BTN3,BTN2,BTN4 | BTS7960 | 4 |
| 7 | 470nF | C11,C12,C4,C3,C1,C2 | 0805 | 6 |
| 8 | 510 | R14,R21,R34,R41,R2,R8,R10,R16 | 0805 | 8 |
| 9 | 10K | R12,R32,R3,R11 | 0805 | 4 |
| 10 | 10k | R13,R22,R23,R33,R42,R43,R4,R5,R6,R12,R14 | 0805 | 11 |
| 11 | 470R | R24,R44,R7,R15 | 0805 | 4 |
| 12 | 470 | R11,R31,R9,R17 | 0805 | 4 |
| 13 | Header 5 | P1 | HDR1X5 | 1 |
| 14 | 470UF | C?,C5 | 电容 | 2 |
