Std edition Arduino weld timer
No Profile
Description
spot weld timer based on arduino
Design Drawing
schematic diagram
（
1
/
）

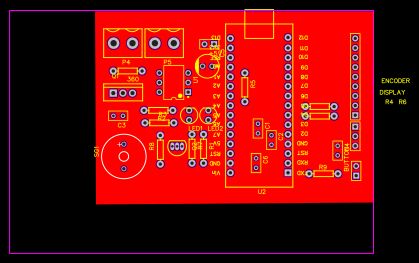

PCB
（
1
/
）
Empty
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | 1k | 360,R7,R9,R5,R4,R6 | AXIAL-0.3 | 6 |
| 2 | 0.1u | C1,C2,C4 | RAD-0.1 | 3 |
| 3 | 100 | R1 | AXIAL-0.3 | 1 |
| 4 | 360 | R2 | AXIAL-0.3 | 1 |
| 5 | 10 | R3 | AXIAL-0.3 | 1 |
| 6 | MOC3062M | U1 | DIP-6 | 1 |
| 7 | BTA16-600BRG | Q1 | TO-220 | 1 |
| 8 | pulse | LED1 | LED-3MM/2.54 | 1 |
| 9 | 1u | C3,C6 | RAD-0.1 | 2 |
| 10 | 2N3904 | Q2 | TO-92(TO-92-3) | 1 |
| 11 | 10k | R8 | AXIAL-0.3 | 1 |
| 12 | ARDUINO NANO | U2 | ARDUINO_NANO | 1 |
| 13 | 1u | C5 | CAP-D3.0XF1.5 | 1 |
| 14 | button | P1 | HDR-1X2/2.54 | 1 |
| 15 | ENCODER | P2 | HDR-3X1/2.54 | 1 |
| 16 | +5v | P3 | HDR-1X2/2.54 | 1 |
| 17 | 204-10UYC/S530-A3 | LED2 | LED-3MM/2.54 | 1 |
| 18 | BUZZER | SG1 | BUZZER-12MM-NS | 1 |
| 19 | transformator | P4 | WJ2EDGVC-5.08-2P | 1 |
| 20 | 220V IN | P5 | WJ2EDGVC-5.08-2P | 1 |
| 21 | display | P6 | HDR-9X1/2.54 | 1 |
