STD New Mobile Single

Project Status: Ongoing

License:

  • 348
  • 0
  • 1
Creation time： 2020-03-06 21:46:41
Update time： 2022-08-23 08:26:52
Description
Empty
Design Drawing
schematic diagram
（ 1 / ）

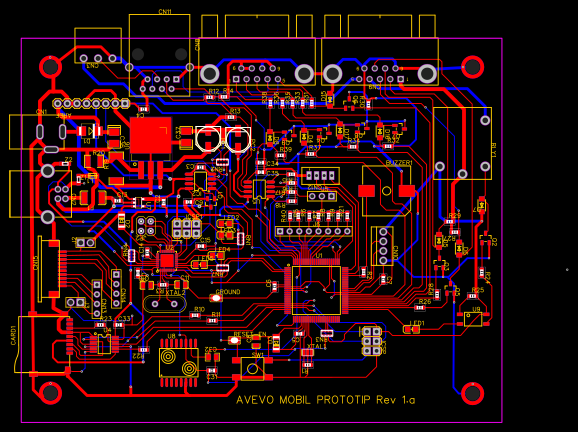

PCB
（ 1 / ）
The preview image was not generated, please save it again in the editor.
BOM
BOM download Purchase Parts
ID Name Designator Footprint Quantity
1 ATMEGA2560 U1 TQFP100 1
2 RESONATOR XTAL1 RESONATOR 1
3 1M R1,R3 R0603-ROUND 2
4 M7 D1 SMB 1
5 100nF C4,C5,C6,C7,C3,C9,C12,C13,C15,C33,C34,C16 C0603-ROUND 12
6 8X1F-H8.5 AREF 1X08 1
7 3X2M ICSP,ICSP1 2X03 2
8 1uF C2,C14,C21,C17 C0603-ROUND 4
9 LP2985-33DBVR U6 SOT23-DBV 1
10 FDN340P Q1 SSOT-3_L2.9-W1.6-P0.95-LS2.8-BR 1
11 2X2M - NM JP2 2X02 1
12 16MHZ XTAL2 QS 1
13 MF-MSMF075/24-2 F1 L1812 1
14 CG0603MLC-05E Z1,Z2 CTCN0603 2
15 BLM21 L1 LP0805 1
16 SJ GROUND,RESET-EN,SDCARD_VCC SJ 3
17 ATMEGA16U2 U2 QFN-32L_L5.0-W5.0-P0.50-EP 1
18 1k R25,R24 R0603-ROUND 2
19 100R R2 R0603-ROUND 1
20 47UF PC1,PC2 PANASONIC_D 2
21 CD1206-S01575 D3,D2 MINIMELF 2
22 1N4148WL D17,D16,D15,D5,D6,D7,D4,D8 SOD-123F_L2.8-W1.8-LS3.7-RD 8
23 10nF C20 0805 1
24 GSD128065YB-3V2400 BUZZER1 BUZ-SMD_GSD128XX 1
25 DS1128-02-S80B CN11 DS1128-02-S80B 1
26 Bas.Sen.02 CN4 CONN-TH_B3B-XH-2 (LF)(SN) 1
27 Bas.Sen.01 CN5 CONN-TH_B3B-XH-2 (LF)(SN) 1
28 3.3K R11,R10,R22,R23,R9 R0603-ROUND 5
29 LCDGPIO-2 CN14 HDR-4X1/2.54 1
30 LCDGPIO-1 CN13 HDR-4X1/2.54 1
31 Membran Buton CN12 HDR-4X1/2.54 1
32 LCD Pin CN6 HDR-4X1/2.54 1
33 ON LED2 LED0805-R-RD 1
34 TX2 LED1 LED0805-R-RD 1
35 BC817 Q8,Q7,Q6,Q3,Q5,Q2,Q4,Q9 SOT-23-3_L2.9-W1.3-P1.90-LS2.4-BR 8
36 TQ2SA-5V RLY2 RELAY-SMD_TQ2SA-3V 1
37 J-Header-Male-2.54_1x2 J2,J3 HDR-2X1/2.54 2
38 MAX485CSA+ U4 SOIC-8_150MIL 1
39 POT-MOTOR CN3 CONN-TH_3P-P3.81-L9.2-W12.2 1
40 10uF C35 C0603-ROUND 1
41 DIGITAL INPUTS CN8 DSUB-TH_DMR-9S 1
42 USB CN2 USB-B_TH_BF90 1
43 DIGITAL OUTPUTS CN9 DSUB-TH_DS1037-09MNAKT74-0CC 1
44 20k R14,R13 R0603-ROUND 2
45 120 R12 R0603-ROUND 1
46 LM1085ISX U5 TO-263-3L_L10.0-W9.2-P2.54-TL 1
47 470pF C18,C19 C0603-ROUND 2
48 10uF C36,C37 CAP-SMD_L3.5-W2.8-R-RD 2
49 74LVC125APW,118 U3 TSSOP-14 1
50 B4B-XH-2 (LF)(SN) CN10 CONN-TH_B4B-XH-2 (LF)(SN) 1
51 1K R28,R29,R27,R26 R0603-ROUND 4
52 TLP3906 U7 SMD-4_L4.6-W3.7-P2.54-LS7.0 1
53 Header-Female-2.54_1x8 J6 HDR-8X1/2.54 1
54 LCD-IO-Con CN15 FPC-SMD_10P-L17.5-W5.6-P1.00 1
55 10K R34,R35,R32,R33,R31,R30,R37,R36,R39,R38,R15,R16,R17,R18 R0603-ROUND 14
56 22pF C8,C10,C11 C0805 3
57 COM LED3 LED0805-R-RD 1
58 TX LED4 LED0805-R-RD 1
59 RX LED5 LED0805-R-RD 1
60 TF-15×15 CARD1 SD-MICRO-1 1
61 POWER12V CN1 DC-IN-TH_DC-005-5A-3.0 1
62 RESET SW1 SW-SMD_4P-L5.1-W5.1-P3.70-LS6.4 1
63 LMV358IDR IC2 SOIC-8_150MIL 1
64 1K RN1,RN7 0603-ARC 2
65 10K RN2,RN3 0603-ARC 2
66 22R RN4 0603-ARC 1
