STD Arduino drone PCB
Arduino drone PCB
License
Public Domain
License: Public DomainMode:
Mode
Editors' pickEditors' pick
- 0
Update time：
2024-10-17 18:04:49
Creation time：
2023-01-30 00:23:33
Description
Description
Arduino based micro drone using small DC motors, MPU6050, TOF and single 1S LiPo and DC-DC boost converter.
Project is based on https://www.instructables.com/Arduino-micro-Quadcopter/
Design Drawing
Design Drawing

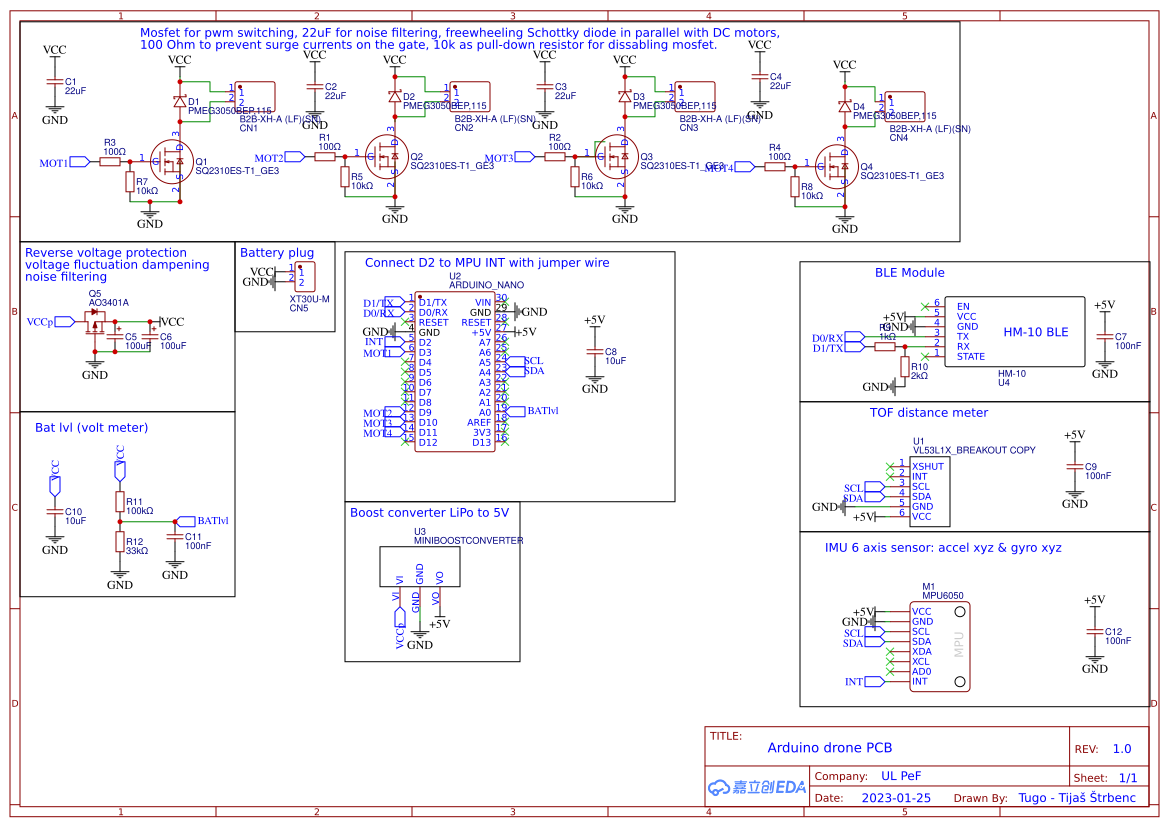

schematic diagram
（
1
/
）
PCB
（
1
/
）
The preview image was not generated, please save it again in the
editor.
| ID | Name | Designator | Footprint | Quantity | |
|---|---|---|---|---|---|
| 1 | 22uF | C1,C2,C3,C4 | C1206 | 4 | C5672 |
| 2 | 100uF | C5,C6 | CAP-SMD_L3.5-W2.8-R-RD | 2 | C116740 |
| 3 | 100nF | C7,C9,C11,C12 | C0402_NEW | 4 | C1525 |
| 4 | 10uF | C8,C10 | C1206 | 2 | C13585 |
| 5 | B2B-XH-A (LF)(SN) | CN1,CN2,CN3,CN4 | CONN-TH_B2B-XH-A-LF-SN | 4 | C158012 |
| 6 | XT30U-M | CN5 | CONN-TH_XT30U-M | 1 | C99101 |
| 7 | PMEG3050BEP,115 | D1,D2,D3,D4 | SMAF_L3.8-W2.5-LS4.7-RD | 4 | C456148 |
| 8 | MPU6050 | M1 | MPU6050-MODULE | 1 | |
| 9 | SQ2310ES-T1_GE3 | Q1,Q2,Q3,Q4 | SOT-23_L2.9-W1.3-P1.90-LS2.4-BR | 4 | C145342 |
| 10 | AO3401A | Q5 | SOT-23_L2.9-W1.3-P1.90-LS2.4-BR | 1 | C15127 |
| 11 | 100Ω | R1,R2,R3,R4 | R0402 | 4 | C25076 |
| 12 | 10kΩ | R5,R6,R7,R8 | R0402 | 4 | C25744 |
| 13 | 1kΩ | R9 | R0402 | 1 | C11702 |
| 14 | 2kΩ | R10 | R0402 | 1 | C4109 |
| 15 | 100kΩ | R11 | R0402 | 1 | C25741 |
| 16 | 33kΩ | R12 | R0402 | 1 | C25779 |
| 17 | VL53L1X_BREAKOUT COPY | U1 | VL53L1X_BREAKOUT | 1 | |
| 18 | ARDUINO_NANO | U2 | COMM-TH_ARDUINO_NANO | 1 | C9900017879 |
| 19 | MINIBOOSTCONVERTER | U3 | MINIBOOSTCONVERTER | 1 | |
| 20 | HM-10 | U4 | HM-10 LATEST | 1 |
