STD Bela ACETT Cape
Project Status:
Ongoing
License: Public Domain
- 0
Description
Revision to Irerobot's HW cape for BBB
Design Drawing
schematic diagram
（
1
/
）
-
Connectors
Open in Editor -
Microphones
Open in Editor -
Codecs
Open in Editor -
Battery Connection
Open in Editor

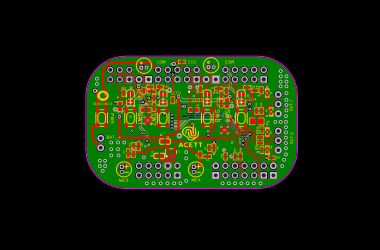

PCB
（
1
/
）
The preview image was not generated, please save it again in the
editor.
| ID | Name | Designator | Footprint | Quantity | BOM_Supplier | BOM_Manufacturer | BOM_Manufacturer Part | BOM_Supplier Part |
|---|---|---|---|---|---|---|---|---|
| 1 | Z-211-0211-0021-001 | H1,H2,H3,H9 | HDR-TH_2P-P2.54-V-M-1 | 4 | LCSC | Nextron(正凌) | Z-211-0211-0021-001 | C152154 |
| 2 | 210S-2*5P L=11.6MMGold-plated black | H4,H5,H6,H8 | HDR-TH_10P-P2.54-V-M-R2-C5-S2.54 | 4 | LCSC | Ckmtw(灿科盟) | B-2100S10P-B110 | C124387 |
| 3 | PIN HEADER - 2.54_2X3 | H7 | HDR-TH_6P-P2.54-V-R2-C3-S2.54_A2541WV-2X3P | 1 | LCSC | PINREX | 210-72-03GB01 | C402781 |
| 4 | SZYY0805G | LED1,LED2,LED3,LED4 | LED0805-R-RD | 4 | LCSC | Yongyu Photoelectric | SZYY0805G | C434432 |
| 5 | 10K | R1,R2,R3,R4 | R0603 | 4 | LCSC | YAGEO(国巨) | RC0603FR-0710KL | C98220 |
| 6 | 220Ω | R23,R24,R25,R26,R13,R14,R17,R20 | R0402 | 8 | LCSC | UNI-ROYAL(厚声) | 0402WGJ0221TCE | C25151 |
| 7 | 22Ω | R27,R28 | R0402 | 2 | LCSC | UNI-ROYAL(厚声) | 0402WGJ0220TCE | C25152 |
| 8 | 2.2kΩ | R29,R30,R31,R32 | R0402 | 4 | LCSC | UNI-ROYAL(厚声) | 0402WGF2201TCE | C25879 |
| 9 | PTS810SJK250SMTRLFS | SW1,SW2,SW3,SW4,SW5 | KEY-SMD_4P-L4.2-W3.2-P2.20-LS4.6 | 5 | LCSC | C&K | PTS810SJK250SMTRLFS | C221896 |
| 10 | 100nF | C1,C2,C3,C4 | C0402 | 4 | LCSC | YAGEO(国巨) | CC0402KRX5R6BB104 | C129131 |
| 11 | 1uF | C5,C6,C7,C8 | C0603 | 4 | LCSC | SAMSUNG(三星) | CL10A105KO8NNNC | C1592 |
| 12 | B4012AP422-003 | MIC1,MIC2 | MIC-TH_BD4.0-P1.40-D0.3-L | 2 | LCSC | Goertek(歌尔) | B4012AP422-003 | C233791 |
| 13 | GMI4015P-42DB | MIC3,MIC4 | MIC-TH_BD4.0-P1.4-D0.4-L-FD | 2 | LCSC | INGHAi(赢海) | GMI4015P-42DB | C529900 |
| 14 | 2.2K | R5,R6,R7,R8 | R0402 | 4 | LCSC | YAGEO(国巨) | RC0402FR-072K2L | C114762 |
| 15 | MIC5317-2.5YD5-TR | U1 | SOT-23-5_L2.9-W1.6-P0.95-LS2.8-BR | 1 | LCSC | MICROCHIP(美国微芯) | MIC5317-2.5YD5-TR | C626020 |
| 16 | 10uF | C9,C10,C25,C26 | C0603 | 4 | LCSC | SAMSUNG(三星) | CL10A106MO8NQNC | C92487 |
| 17 | 100nF | C11,C12,C13,C22,C23,C24 | C0402_NEW | 6 | LCSC | SAMSUNG(三星) | CL05B104KO5NNNC | C1525 |
| 18 | 47uF | C14,C15,C19,C20 | C0805 | 4 | LCSC | TDK | C2012X5R1A476MTJ00E | C76636 |
| 19 | 47pF | C16,C17,C18,C21 | C0402 | 4 | LCSC | YAGEO(国巨) | CC0402JRNPO8BN470 | C541362 |
| 20 | PESD0402-140 | D1,D2,D3,D4 | D0402-BI | 4 | LCSC | Littelfuse(美国力特) | PESD0402-140 | C10662 |
| 21 | 120Ω | L1 | L0603 | 1 | LCSC | TDK | MPZ1608S121ATAH0 | C114770 |
| 22 | 15.4Ω | R9,R10,R15,R16 | R0402 | 4 | LCSC | Walsin(华新科) | WR04X15R4FTL | C172006 |
| 23 | 3.3kΩ | R11,R12,R18,R19 | R0402 | 4 | LCSC | KOA | RK73B1ETTP332J | C131565 |
| 24 | MIC5317-1.8YM5-TR | U4 | SOT-23-5_L2.9-W1.6-P0.95-LS2.8-BR | 1 | LCSC | MICROCHIP(美国微芯) | MIC5317-1.8YM5-TR | C626019 |
| 25 | TLV320AIC3104IRHBR | U5,U6 | HVQFN-32_L5.0-W5.0-P0.50-TL-EP | 2 | LCSC | TI(德州仪器) | TLV320AIC3104IRHBR | C181753 |
| 26 | BM03B-ACHSS-GAN-TF | U7,U8 | CONN-SMD_3P-P1.20_BM03B-ACHSS-GAN-TF | 2 | LCSC | null | BM03B-ACHSS-GAN-TF | C2875067 |
| 27 | 10KΩ | R21 | R0402 | 1 | LCSC | VISHAY(威世) | NTHS0402N02N1002JE | C142625 |
| 28 | 75kΩ | R22 | R0402 | 1 | LCSC | Walsin(华新科) | MR04X7502FTL | C431813 |
| 29 | BM02B-ACHSS-GAN-TF(LF)(SN) | U9 | CONN-SMD-2P-P1.20_BM02B-ACHSS-GAN-TF-LF-SN | 1 | LCSC | JST | BM02B-ACHSS-GAN-TF(LF)(SN) | C265007 |
