Description
Empty
Design Drawing

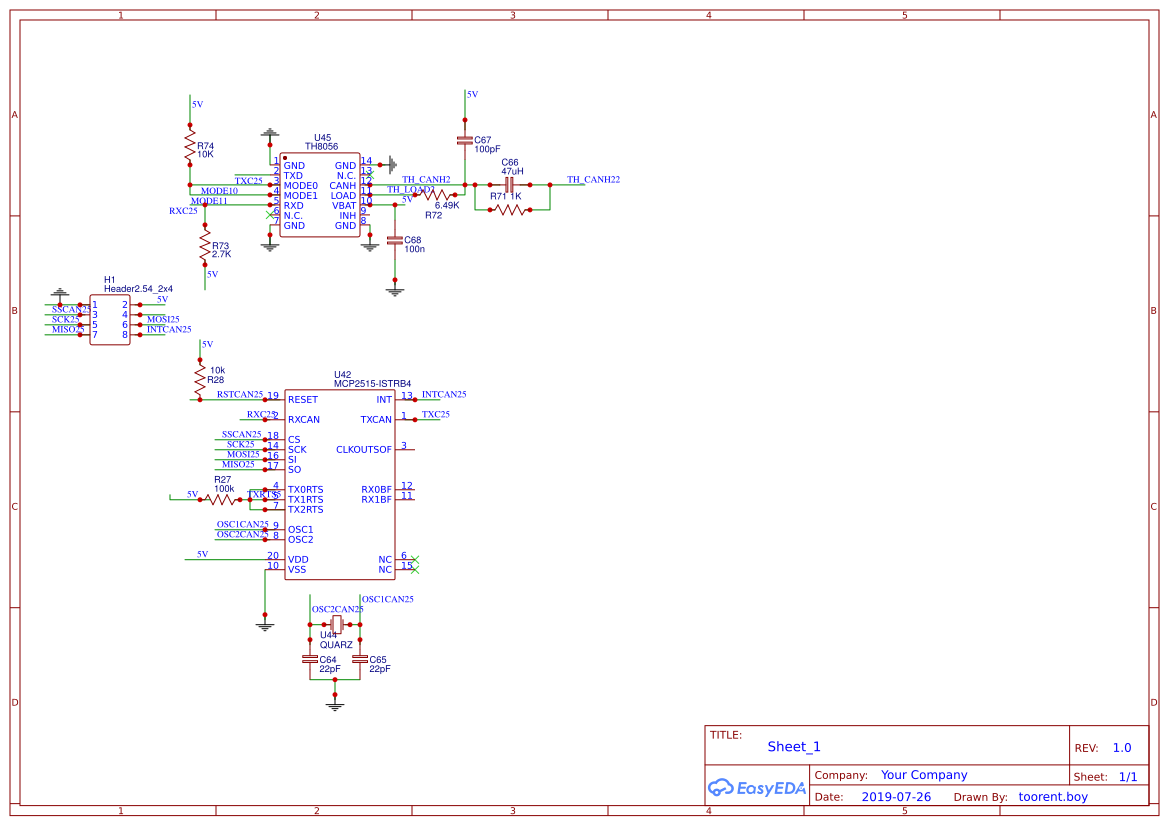

schematic diagram
（
1
/
）
-
Can_TH
Open in Editor -
m328p
Open in Editor -
Can_TJA
Open in Editor -
STM32
Open in Editor -
m128a
Open in Editor -
m32
Open in Editor -
Provider
Open in Editor
PCB
（
1
/
）
-
Lego
Open in Editor -
Lego_TH
Open in Editor -
LegoTJA
Open in Editor -
Lego328p
Open in Editor -
Lego32
Open in Editor -
Lego128
Open in Editor -
LegoSTM
Open in Editor
The preview image was not generated, please save it again in the
editor.
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | 22pF | C64,C65,C33,C34,C2,C9,C7,C8,C14,C16 | 0603 | 10 |
| 2 | 47uH | C66 | 1206 | 1 |
| 3 | 100pF | C67 | 0603 | 1 |
| 4 | 100n | C68,C3,C6,C17,C20,C21,C24,C57 | 0603 | 8 |
| 5 | Header2.54_2x4 | H1,H2,H6 | DIP-2X4P-2.54 | 3 |
| 6 | 100k | R27,R7 | 0805 | 2 |
| 7 | 10k | R28,R14 | 0805 | 2 |
| 8 | 1K | R71 | 0805 | 1 |
| 9 | 6.49K | R72 | 0603 | 1 |
| 10 | 2.7K | R73 | 0805 | 1 |
| 11 | 10K | R74 | 0805 | 1 |
| 12 | MCP2515-ISTRB4 | U42,U23 | TSSOP20 | 2 |
| 13 | QUARZ | U44,U31,U25,U43,U22,U3 | 3225 | 6 |
| 14 | TH8056 | U45 | SOIC-14_150MIL | 1 |
| 15 | 4.7n | C1 | 0805 | 1 |
| 16 | 100n | C4,C5,C15,C13,C26,C27,C28,C10,C11,C12,C25,C29 | CAP_0603 | 12 |
| 17 | Header2.54 | H3,H4,H5,H7 | DIP-2X5P-2.54 | 4 |
| 18 | 10Uh | L1,L2,L3,L4,L5,L6 | FUSE_1206 | 6 |
| 19 | ATMEGA328P-AU | U1 | TQFP-32_7X7X08P | 1 |
| 20 | Header-Female-2.54_1x2 | P3 | HDR-1X2/2.54 | 1 |
| 21 | 10 | R59 | 0805 | 1 |
| 22 | TJA1040T/CM,118 | U24,U21 | SOIC-8_150MIL | 2 |
| 23 | 20pF | C18,C19,C62,C63 | 0603 | 4 |
| 24 | 10uF | C22,C31 | CAP-D3.0XF1.5 | 2 |
| 25 | 22uF | C23,C30 | CAP-D3.0XF1.5 | 2 |
| 26 | Header-Female-2.54_1x4 | P1 | HDR-4X1/2.54 | 1 |
| 27 | Header-Female-2.54_2x6 | P2 | HDR-6X2/2.54 | 1 |
| 28 | BSS138 | Q1,Q2,Q3,Q4 | SOT-23(SOT-23-3) | 4 |
| 29 | 10K | R1,R2,R3,R4,R9,R10,R11,R12,R13,R15,R17,R18,R16 | RES_0603 | 13 |
| 30 | 1M | R5 | RES_0603 | 1 |
| 31 | 330 | R6,R20 | 1206 | 2 |
| 32 | 590 | R8,R19 | 1206 | 2 |
| 33 | STM32F103C8T6 | U2 | LQFP48 | 1 |
| 34 | QUARZ | U6 | 32768 KHZ | 1 |
| 35 | AMS1117-ADJ | U7,U10 | SOT-223 | 2 |
| 36 | TXS0108EPWR | U19 | TSSOP-20 | 1 |
| 37 | Header-A | P4 | HDR-1X2/2.54 | 1 |
| 38 | ATMEGA128A-AU | U5 | TQFP-64_14X14X08P | 1 |
| 39 | NL7SZ19DFT2G | U8,U9 | SC-70-6 | 2 |
| 40 | ATMEGA32A-AU | U4 | TQFP-44_10X10X08P | 1 |
| 41 | Header-Male-2.54_1x3 | P7 | HDR-3X1/2.54 | 1 |
