STD PlacaCP_LoRA - v2.0
License: MIT
- 0
Description
Nova versão da placa Chupa Cabra com LoRa
Design Drawing

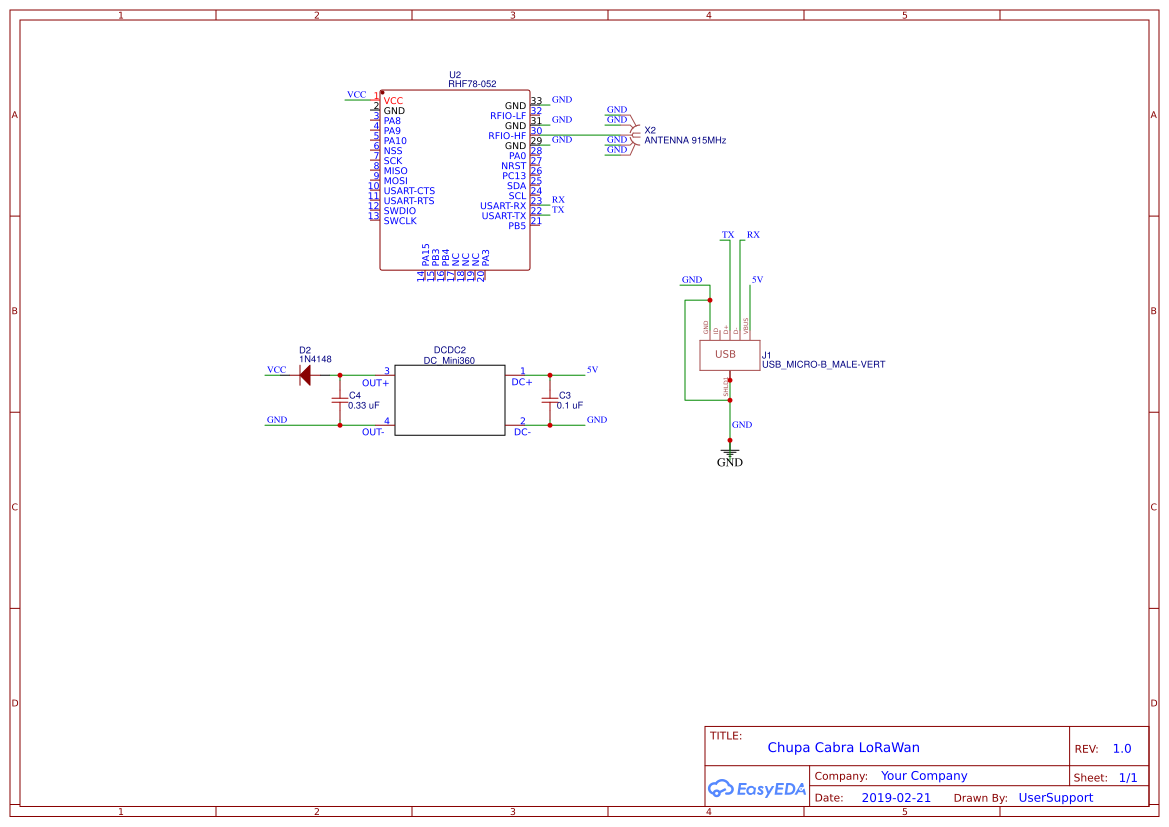

schematic diagram
（
1
/
）
PCB
（
1
/
）
-
Board_CP_v2.1
Open in Editor -
Board_CP_v2.0
Open in Editor -
Board_CP_v2.2 - USB
Open in Editor -
Board_CP_v2.2 - Micro USB
Open in Editor
The preview image was not generated, please save it again in the
editor.
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | 1N4148 | D2,D1 | PKG-DO-35 | 2 |
| 2 | ANTENNA 915MHz | X2,X1 | SMA-F-S-TH | 2 |
| 3 | 0.1 uF | C3,C1 | RAD-0.1 | 2 |
| 4 | 0.33 uF | C4,C2 | RAD-0.1 | 2 |
| 5 | USB_MICRO-B_MALE-VERT | J1 | USB_MICROB_VERTICAL | 1 |
| 6 | DC_Mini360 | DCDC2,DCDC1 | MINI360 DCDC | 2 |
| 7 | RHF78-052 | U2,U1 | RHF76-052 | 2 |
| 8 | USB_A_PTH_MALE | J2 | USB-A-H | 1 |
