Std edition import Project
No Profile
Description
Design Drawing

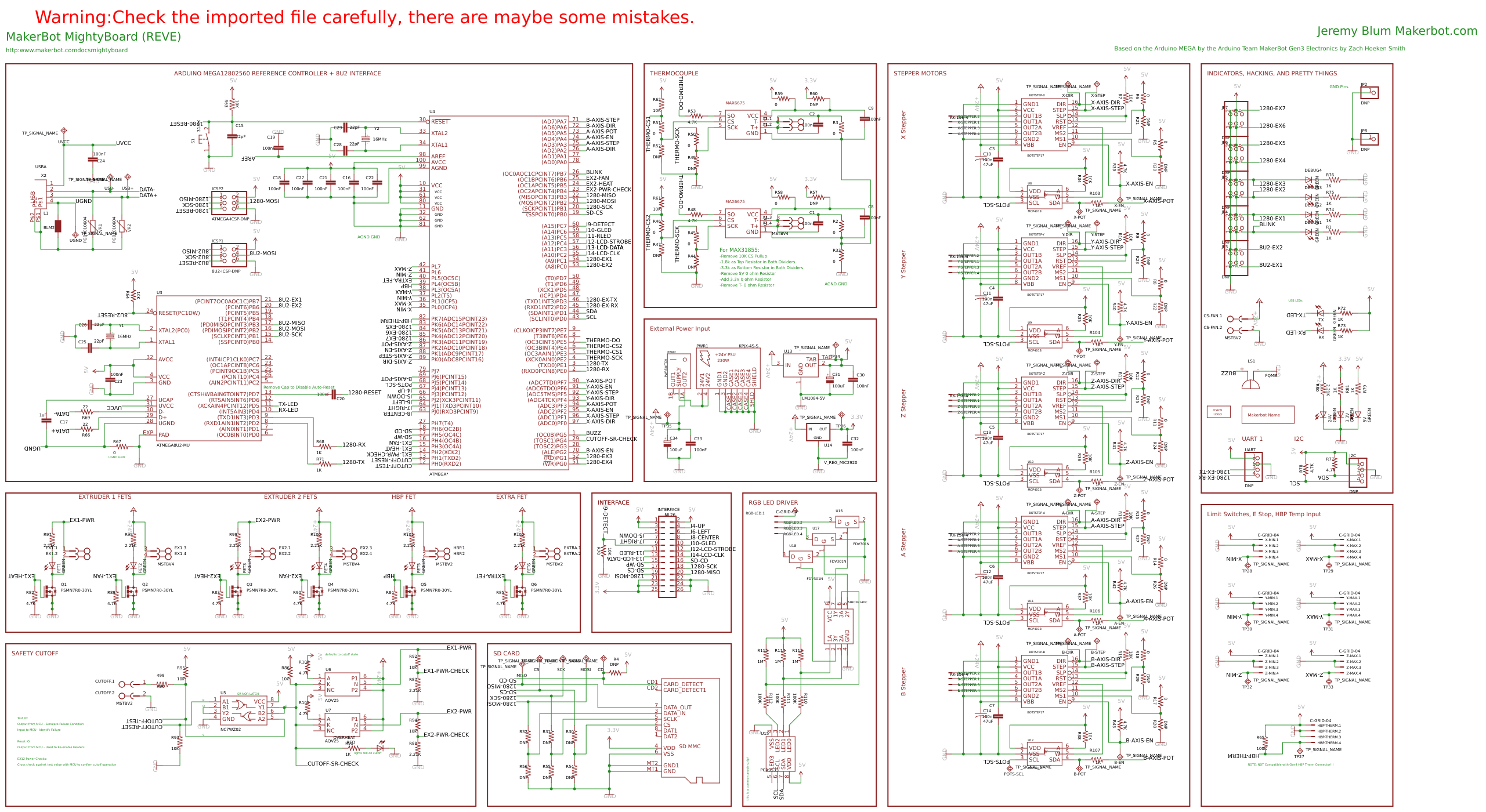

schematic diagram
（
1
/
）
PCB
（
1
/
）
Empty
| ID | Designator | Footprint | Quantity |
|---|---|---|---|
| 1 | 3,5V,24V,FET1,FET3,FET5,DEBUG1,DEBUG2,DEBUG3,FET6,FET2,FET4,DEBUG4,RX,TX | LED-0805 | 15 |
| 2 | R79,R81,R1,R74,R75,R76,R72,R73,R68,R71,R91,R103,R104,R105,R106,R107 | 0805 | 16 |
| 3 | INTERFACE | ML26 | 1 |
| 4 | S1 | B3F-31XX | 1 |
| 5 | X-MIN,X-MAX,Y-MIN,Y-MAX,Z-MIN,Z-MAX,HBP-THERM,RGB-LED | 70543-04 | 8 |
| 6 | TP28,TP29,TP30,TP31,TP32,TP33,TP34,TP35,TP36,MOSI,SCK,CS,CD,MISO,X-DIR,X-STEP,X-EN,Y-DIR,Y-STEP,Z-DIR,Z-STEP,A-DIR,A-STEP,B-DIR,B-STEP,Y-EN,Z-EN,A-EN,B-EN,TP27,X-POT,Y-POT,Z-POT,A-POT,B-POT,POTS-SCL,UVCC,USB-,USB+,UGND | TP09R | 40 |
| 7 | R99,R97,R101,R102,R100,R98,R87,R88,R80 | 0805 | 9 |
| 8 | R82,R83,R84,R77,R78,R85,R89,R90,R53,R48,R39,R40,R41,R42,R43,R109,R108 | 0805 | 17 |
| 9 | Q1,Q3,Q5,Q6,Q2,Q4 | SOT669 | 6 |
| 10 | C30,C2,C9,C1,C8,C19,C21,C16,C22,C23,C20,C24,C33,C32,C3,C4,C5,C6,C7,C27,C18 | 0805 | 21 |
| 11 | I2C,UART | 1X04 | 2 |
| 12 | C34,C31 | E3,5-8 | 2 |
| 13 | U2,U1 | SO08 | 2 |
| 14 | R62,R61,R63,R64,R70,R7,R34,R10,R35,R13,R36,R16,R37,R19,R38 | 0805 | 15 |
| 15 | JP7,JP6,JP5,JP4,JP3 | 2X03 | 5 |
| 16 | LS1 | FQMB | 1 |
| 17 | X1,EX1,EX2 | MSTBV4 | 3 |
| 18 | R65,R110,R111,R112 | 0805 | 4 |
| 19 | R33,R51,R50,R59,R46,R45,R58,R67,R3,R2,R6,R5,R9,R8,R12,R11,R15,R14,R18,R17 | 0805 | 20 |
| 20 | JP2,JP8 | 1X01 | 2 |
| 21 | MP1 | MICROSD | 1 |
| 22 | R54,R30,R55,R31,R56,R32,R4,R52,R49,R60,R47,R44,R57,R21,R20,R23,R22,R25,R24,R27,R26,R29,R28 | 0805 | 23 |
| 23 | LOGO2 | OSHW_10X200_NOTEXT | 1 |
| 24 | LOGO1 | MAKERBOTNAME1 | 1 |
| 25 | U4 | TQFP100 | 1 |
| 26 | C15,C29,C28,C26,C25 | 0805 | 5 |
| 27 | ICSP2 | 2X03 | 1 |
| 28 | U3 | QFN32 | 1 |
| 29 | ICSP1 | 2X03 | 1 |
| 30 | L1 | 0805 | 1 |
| 31 | VR1,VR2 | CTCN0603 | 2 |
| 32 | Y2,Y1 | HC49S | 2 |
| 33 | R69,R66 | 0805 | 2 |
| 34 | X2 | SMARTPRJ_PN61729 | 1 |
| 35 | C17 | 0805 | 1 |
| 36 | U15 | SO8 | 1 |
| 37 | U6,U7 | AQV25-DIPSM | 2 |
| 38 | PWR1 | JPJX-4S-S | 1 |
| 39 | U13 | TO-263 | 1 |
| 40 | U14 | SOT223 | 1 |
| 41 | CS-FAN,CUTOFF,HBP,EXTRA | MSTBV2 | 4 |
| 42 | R96 | 0805 | 1 |
| 43 | R95,R93,R92,R94,R86 | 0805 | 5 |
| 44 | BOTSTEP-X,BOTSTEP-Y,BOTSTEP-Z,BOTSTEP-A,BOTSTEP-B | BOTSTEP17-INV | 5 |
| 45 | X-STEPPER,Y-STEPPER,Z-STEPPER,A-STEPPER,B-STEPPER | KK-156-4 | 5 |
| 46 | U8,U9,U10,U11,U12 | SC70-6L | 5 |
| 47 | OVERHEAT | LED-0805 | 1 |
| 48 | C10,C11,C13,C12,C14 | CAP2917 | 5 |
| 49 | U5 | US8 | 1 |
| 50 | PWR2 | D501JT2S2APQF | 1 |
| 51 | U16,U18,U17 | SOT-23 | 3 |
| 52 | R113,R114,R115 | 0805 | 3 |
| 53 | U19 | VSSOP8 | 1 |
