CompletedSuper Scorpio FeatherWing v3
STDSuper Scorpio FeatherWing v3
233
0
0
0
Mode:Schematic/Simulation
License
：BSD License
Cloned fromDRGB Controller 3
Creation time:2024-01-18 20:03:44Update time:2025-08-14 02:01:38
Description

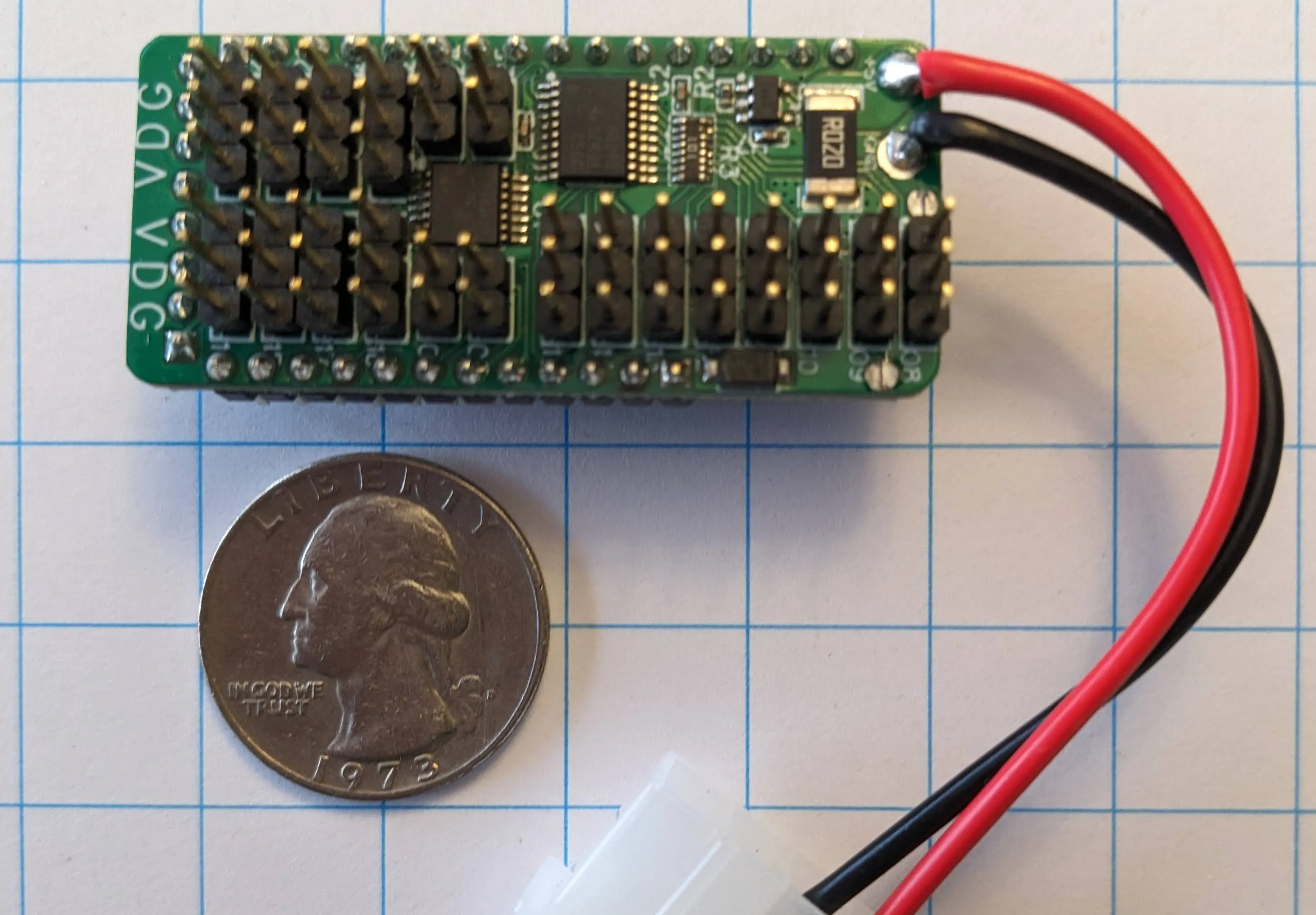

This custom built "Super Scorpio" FeatherWing is designed for controlling multiple NeoPixel/ARGB led strips inside a computer case.
It extends Adafruit's Feather RP2040 SCORPIO board to support the following features:
- 4 ARGB data input channels
- 16 ARGB data output channels
- Molex power connection for multi-amp 5v ARGB power distribution
- ARGB 5v power/current monitoring via the RP2040's A0 ADC pin
- Channel I/O provided using compact DG/VDG pin headers
Design Drawing
