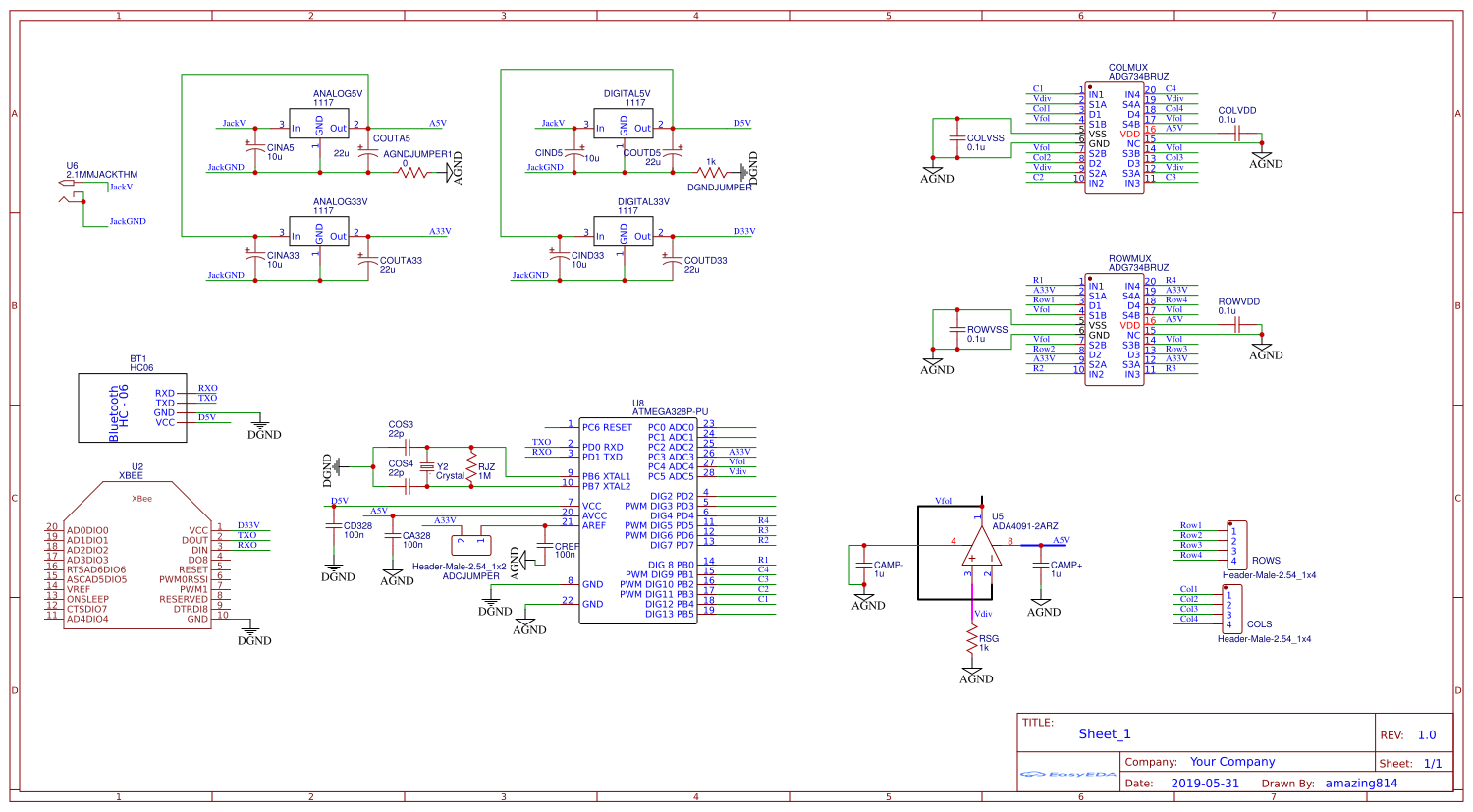

Std EditionVFCtype1

License: Public Domain

Published Time:2019-06-04 21:37:51
  • 126
  • 0
  • 0
Description
Documents
ID Name Designator Footprint Quantity
1 1k RSG,DGNDJUMPER AXIAL-0.3 2
2 1u CAMP-,CAMP+ RAD-0.1 2
3 ADA4091-2ARZ U5 SOIC-8_150MIL 1
4 HC06 BT1 HDR1X6 1
5 XBEE U2 XBEE 1
6 ATMEGA328P-PU U8 DIP-28_300MIL 1
7 Crystal Y2 HC-49SU 1
8 100n CA328,CREF,CD328 RAD-0.1 3
9 1M RJZ AXIAL-0.3 1
10 22p COS3,COS4 RAD-0.1 2
11 1117 ANALOG5V,DIGITAL5V,ANALOG33V,DIGITAL33V AMS_1117 4
12 2.1MMJACKTHM U6 PJ-102A 1
13 22u COUTD5,COUTA5,COUTA33,COUTD33 CAP-D6.3XF2.5 4
14 10u CIND5,CINA5,CINA33,CIND33 CAP-D6.3XF2.5 4
15 0 AGNDJUMPER1 AXIAL-0.3 1
16 ADG734BRUZ ROWMUX,COLMUX TSSOP-20 2
17 0.1u ROWVSS,ROWVDD,COLVSS,COLVDD RAD-0.1 4
18 Header-Male-2.54_1x4 ROWS,COLS DIP-1X4P-2.54MM-M 2
19 Header-Male-2.54_1x2 ADCJUMPER HDR-2X1/2.54 1
