STD Serial BOB-232

  • 725
  • 0
  • 0

No Profile

License: Public Domain

Creation time: 2018-11-09 03:21:56
Update time: 2019-11-14 07:21:57
Description

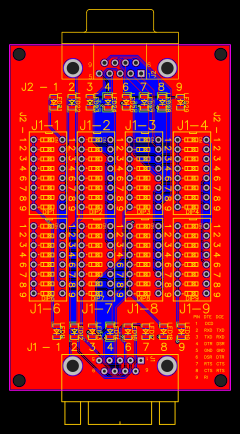

RS-232 DE-9 Break-out Board Allows for special wiring of RS-232 connections. Jack 1 Pins 1,2,3,4,6,7,8,9 can be connected to Jack 2 Pins 1,2,3,4,6,7,8,9 in any combination. Allows for easy handshaking and DTE/DCE adaptation. Use Bi-directional, dual color LEDs for signal status indicators.
Design Drawing
schematic diagram
1 /
PCB
1 /
Empty
ID Name Designator Footprint Quantity Mounted
1 DS1034-09FUNSi44 J1 DSUB9-1 1 Yes C77831
2 DS1034-09MUNSi44 J2 DSUB9-3 1 Yes C75752
3 VDG/S-08L-H-R DIP1,DIP2,DIP3,DIP4,DIP6,DIP7,DIP8,DIP9 VDG/S-08L-H-R 8 Yes C3663
4 LED-Red(0805) LED11,LED12,LED13,LED14,LED16,LED17,LED18,LED19,LED21,LED22,LED23,LED24,LED26,LED27,LED28,LED29 LED-1206 16 Yes C131244
5 1k R11,R12,R13,R14,R16,R17,R18,R19,R21,R22,R23,R24,R26,R27,R28,R29 1206 16 Yes
