STD płytka alarmu opto
License: Public Domain
Mode: Editors' pick
- 0
Update time：
2022-09-05 18:40:58
Creation time：
2022-02-10 23:41:42
Description
parametry
Design Drawing
schematic diagram
（
1
/
）
PCB
（
1
/
）
-

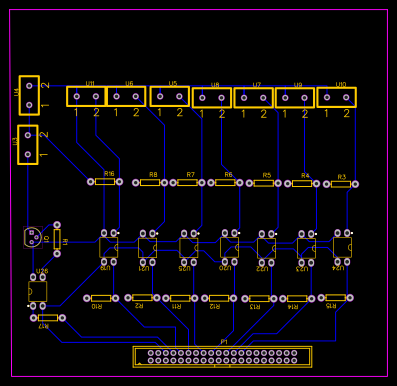

PCB_płytka alarmu opto
Open in Editor -
PCB_płytka alarmu opto_2
Open in Editor -
prawie gotowe
Open in Editor -
poprawiona
Open in Editor -
Gotowiec_1
Open in Editor
The preview image was not generated, please save it again in the
editor.
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | Horn connector/2.0mm2*20P | P1 | IDC-TH_40P-P2.00-C30420 | 1 |
| 2 | BC338 | Q1 | TO-92_MOLDED_NARROW | 1 |
| 3 | 12k | R1 | AXIAL-0.3 | 1 |
| 4 | 10k | R2,R10,R11,R12,R13,R14,R15 | AXIAL-0.3 | 7 |
| 5 | 620 | R3,R4,R5,R6,R7,R8,R16 | AXIAL-0.3 | 7 |
| 6 | 330 | R17 | AXIAL-0.3 | 1 |
| 7 | Złącze_ARK2 | U3,U4,U5,U6,U7,U8,U9,U10,U11 | ZŁACZE ARK2 | 9 |
| 8 | UPC817CG-D04-T | U19,U20,U21,U22,U23,U24,U25,U26 | DIP-4_L4.6-W6.5-P2.54-LS7.6-BL | 8 |
