Description

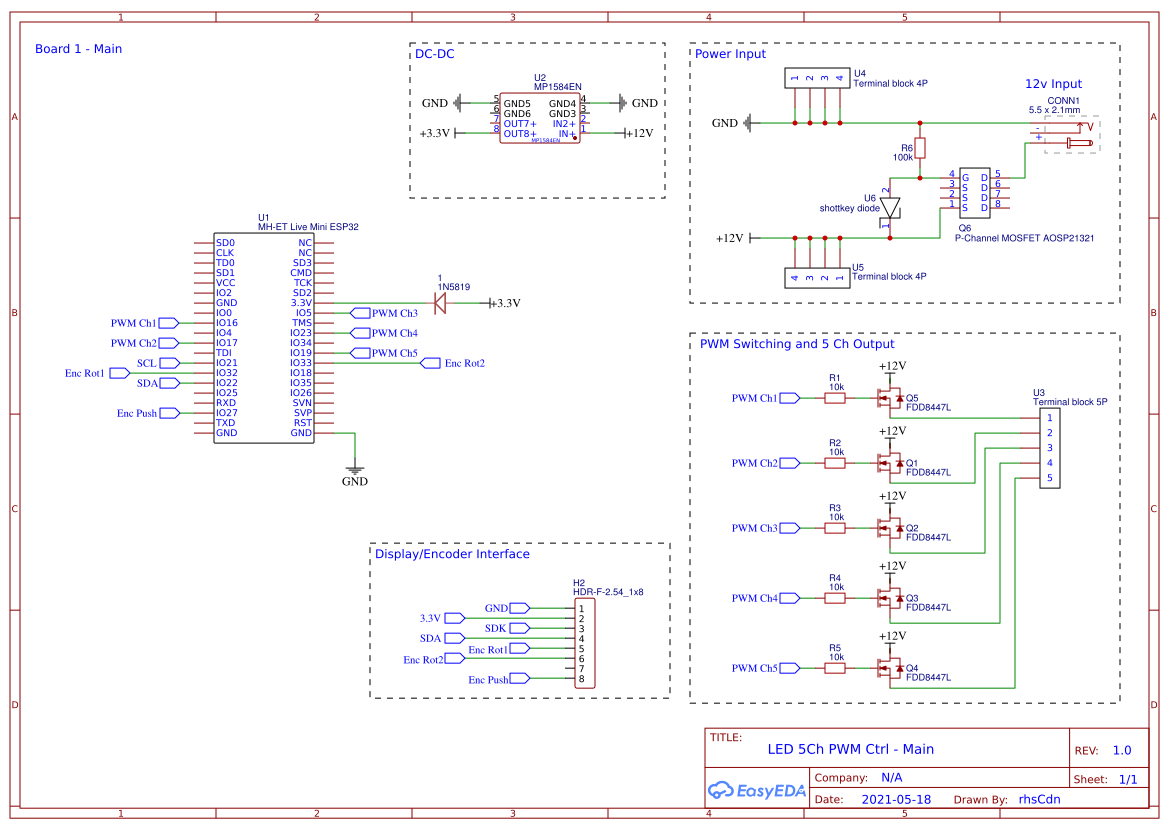

5 channel PWM Controller for LED strip lights
Design Goals:
- Basic 5 channel LED controller using PWM
- Online control using BLE/WiFi (ESP32 - MH-ET Live Mini)
- Optional physical controls using OLED and a rotary encoder
- Protection from reverse polarity of the input (I'm a little unsure on this)
- Protection from backfeeding the DC-DC converter when flashing software on ESP32.
