STD PCB Akuisisi Data WEHEDEV Updated
License: Public Domain
Mode: Editors' pick
Cloned from PCB Akuisisi Data WEHEDEV copy

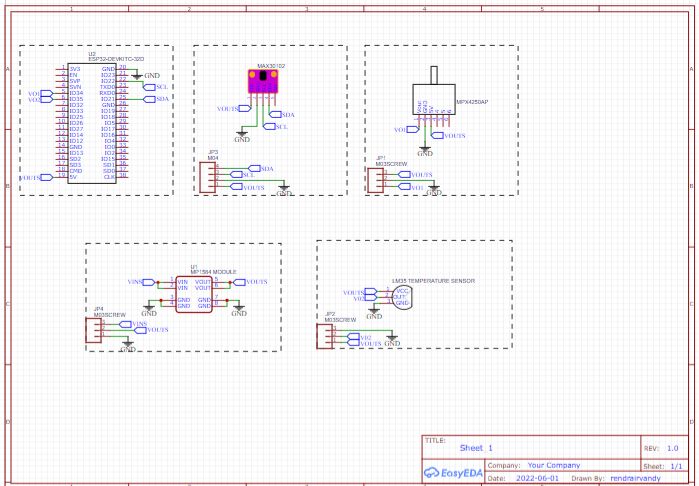

PCB untuk Akuisisi Data WEHEDEV
PCB_PCB Akuisisi Data WEHEDEV copy copy
Open in EditorPCB_PCB Akuisisi Data WEHEDEV copy copy_2
Open in EditorID | Name | Designator | Footprint | Quantity |
---|---|---|---|---|
1 | M03SCREW | JP1,JP2,JP4 | SCREWTERMINAL-3.5MM-3 | 3 |
2 | M04 | JP3 | SCREWTERMINAL-3.5MM-4 | 1 |
3 | MPX4250AP | MPX | MPX4250AP | 1 |
4 | MP1584 MODULE | U1 | MP1584 MODULE | 1 |
5 | ESP32-DEVKITC-32D | U2 | ESP32-DEVKITC-32D | 1 |
6 | LM35 TEMPERATURE SENSOR | U4 | LM35 TEMPERATURE SENSOR | 1 |
7 | MAX30102 | VIN | MAX30102-MODULE-FOOTPRINT | 1 |
Unfold
