STD Clock In 12
No Profile
License: Public Domain
Description
Design Drawing
schematic diagram
（
1
/
）

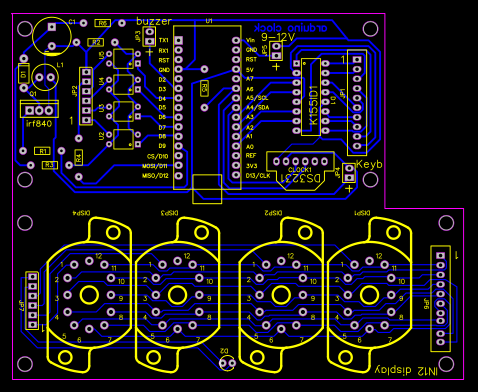

PCB
（
1
/
）
Empty
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | DS3231 | CLOCK1 | DS3231 | 1 |
| 2 | ARDUINO-NANO-V3.0 | U1 | ARDUINO_NANO V3 | 1 |
| 3 | TLP627 | U2,U3,U4,U5 | DIP4_MOD | 4 |
| 4 | 220µ | L1 | RLB0712 | 1 |
| 5 | IRF840 | Q1 | TO-220_MOD | 1 |
| 6 | HER106 | D1 | DO-41 | 1 |
| 7 | 4.7u 350В | C1 | CP_10X13MM | 1 |
| 8 | 22 | R1 | RC06 | 1 |
| 9 | 470 | R2 | RC06 | 1 |
| 10 | 10k | R3,R5 | RC06 | 2 |
| 11 | 10PIN | JP1,JP6 | B10B_MOD | 2 |
| 12 | К155ИД1 | DС1 | DIP16_MOD | 1 |
| 13 | 6PIN | JP2,JP7 | 6PIN | 2 |
| 14 | 150 | R4 | RC06 | 1 |
| 15 | Buzzer | JP3 | 2PIN_MOD | 1 |
| 16 | keyboard | JP4 | 2PIN_MOD | 1 |
| 17 | Power | JP5 | 2PIN_MOD | 1 |
| 18 | LED | D2 | LED3MM | 1 |
| 19 | 330k | R6 | RC06 | 1 |
