STD Smart be ca V.1
No Profile
Description
Design Drawing
schematic diagram
（
1
/
）

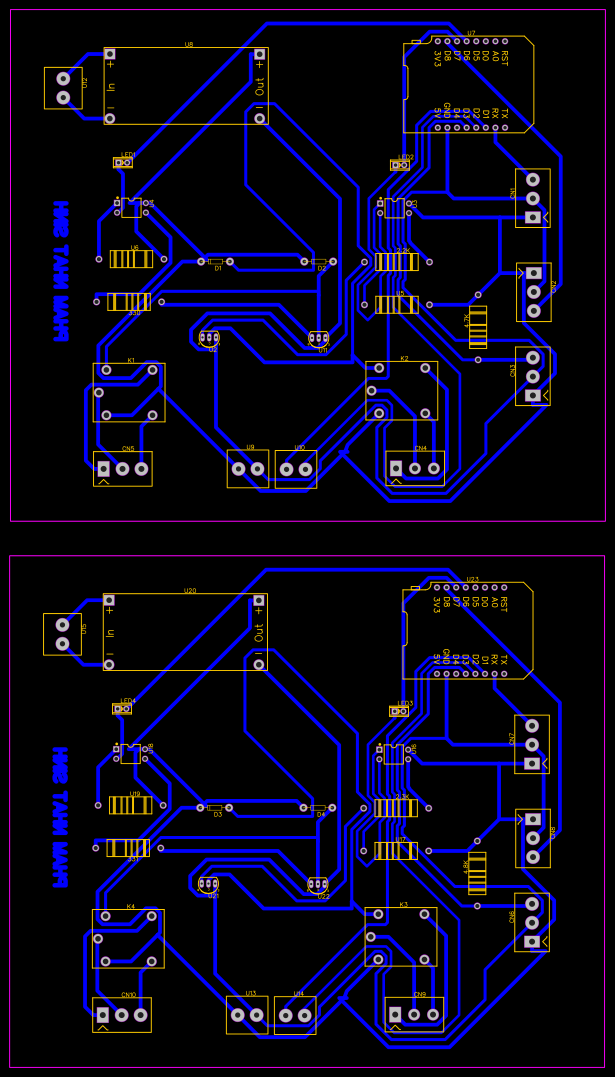

PCB
（
1
/
）
Empty
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | NGUON LCD | U9 | 5MM_TERMINALBLOCK | 1 |
| 2 | SCL CDA | U10 | 5MM_TERMINALBLOCK | 1 |
| 3 | 5mm_TERMINALBLOCK | U12 | 5MM_TERMINALBLOCK | 1 |
| 4 | DIODE | D1,D2 | DIODE-1N4001-KIT | 2 |
| 5 | C1815 | U2,U11 | C1815 | 2 |
| 6 | Wemos D1 mini | U7,U1 | WEMOS D1 MINI | 2 |
| 7 | RelayHT3F-12VDC-SHG | K2,K1 | RELAY-TH_5PIN_HT3F-12VDC-SHG | 2 |
| 8 | ISP620-1GB | U3,U4 | OPTO-TH_4PIN-L5.08-W7.62-PITCH2.54-BL | 2 |
| 9 | DS18B20 | CN3,CN2,CN4,CN5 | SCREW TERMINAL 5MM 3P | 4 |
| 10 | DHT11 | CN1 | SCREW TERMINAL 5MM 3P | 1 |
| 11 | lm2596 | U8 | LM2596-MODULE | 1 |
| 12 | 2A5Y3UD09 LED | LED2,LED1 | LED-2*5*7 | 2 |
| 13 | MOF2WS-330Ω±5% T | 4.7K,U5,2.2K,U6,330 | RES-11.5MMX4.5MM-2WS | 5 |
