charger

3 weeks ago

Profile:charger circuit incomplete

Open source license: Public Domain

  • 36
  • 0
  • 0

Description

dfsfhdh fh f

Documents

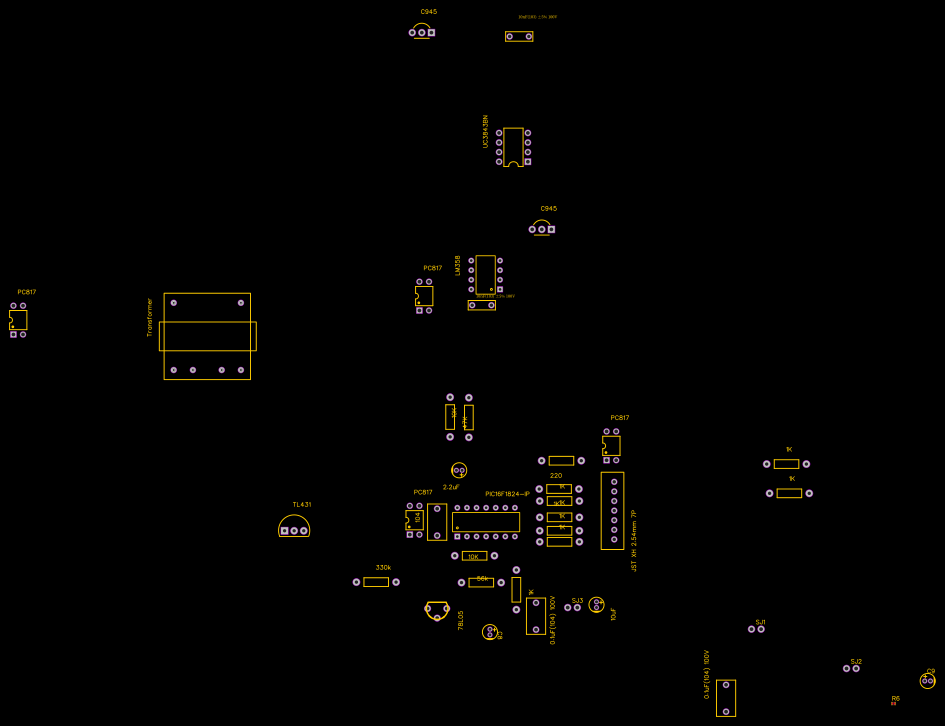

PCB_2020-11-01_21-58-49

Open in editor

BOM

ID Name Designator Footprint Quantity
1 PC817 U3,U4,U5,U6 DIP-4 4
2 C945 Q1,Q2 C945 2
3 SOLDERJUMPERPTH SJ1,SJ2,SJ3 SJ_2S-PTH 3
4 10nF(103) ±5% 100V C1,C2 CAP-2.5*6*7 2
5 UC3843BN U1 DIP-8_L10.0-W6.5-P2.54-LS7.6-BL 1
6 78L05 U8 TO92-XM 1
7 TL431 U9 TL431 1
8 PIC16F1824-IP U7 DIP14 1
9 2.2uF C6 CAP-TH_BD4.0-P1.50-D0.8-FD 1
10 10uF C7,C8,C9 CAP-TH_BD4.0-P1.50-D0.8-FD 3
11 1K R1,R2,R3,R5,R7,R10,R4,R14 RES-TH_BD2.3-L6.5-P10.50-D0.5 8
12 220 R11 RES-TH_BD2.3-L6.5-P10.50-D0.5 1
13 47K R8 RES-TH_BD2.3-L6.5-P10.50-D0.5 1
14 10K R9,R12 RES-TH_BD2.3-L6.5-P10.50-D0.5 2
15 330k R13 RES-TH_BD2.3-L6.5-P10.50-D0.5 1
16 56k R15 RES-TH_BD2.3-L6.5-P10.50-D0.5 1
17 LM358 CI1 DIP8 1
18 0.1uF(104) 100V C3,C4 CAP-9.5*11.5*5 2
19 104 C5 CAP-9.5*11.5*5 1
20 Transformer T1 TRANSFORMER 1
21 1k R6 R0201 1
22 JST XH 2.54mm 7P U2 JST XH 2.54MM 7P 1
