STD Tablero Electrico
License: LGPL
Mode: Editors' pick
- 0
Update time：
2023-02-17 15:29:33
Creation time：
2022-03-18 18:25:52
Description
Diagramas electricos de proyecto
Design Drawing
schematic diagram
（
1
/
）
-
Power
Open in Editor -
Inputs Arrive PLC
Open in Editor -
Outputs Arrive PLC
Open in Editor -

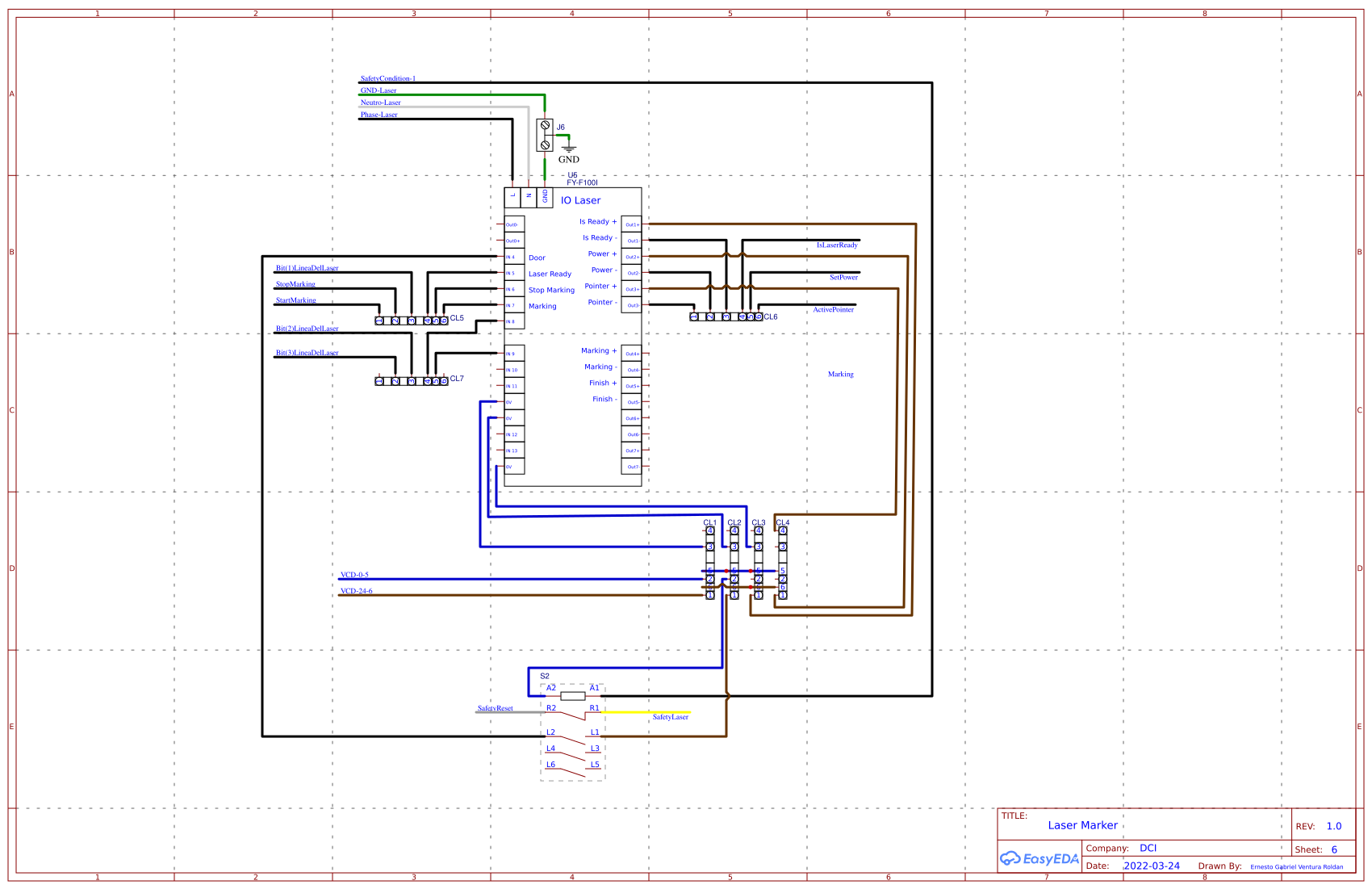

Laser Marker
Open in Editor -
Safety
Open in Editor -
Control
Open in Editor -
Robot
Open in Editor -
Index Table
Open in Editor -
Index IOs
Open in Editor
PCB
（
1
/
）
The preview image was not generated, please save it again in the
editor.
| ID | Name | Designator | Quantity |
|---|---|---|---|
| 1 | clema 2 levels | C1,C2,C3,C4,C5,C23,C201,C220,C221,C230,C231,C232,C240,C10,C22,C401,C402,C420,C421,C422,C423,C430,C431,C450,CL1,CL2,CL3,CL4,C6,C7,C8,C9,C24,C25,C26,C27,C28,C29,C30,C31,CR1,CR2,CR3,CI206,CI207,CI200,CI201,CI202,CI203,CI204,CI205 | 51 |
| 2 | Enchufe 120v | E1,E2,E3 | 3 |
| 3 | Clema GND | J1,J2,J3,J4,J5,J6,J7,J8 | 8 |
| 4 | Lamp | L1,L2 | 2 |
| 5 | Contactor 3p 1aux | S7,S2,S3,S6 | 4 |
| 6 | Interruptor | SW9 | 1 |
| 7 | Bloque distribución | U4 | 1 |
| 8 | Control | SW1 | 1 |
| 9 | Auxiliar | SW2 | 1 |
| 10 | Laser | SW6 | 1 |
| 11 | Robot | SW7 | 1 |
| 12 | Index | SW8 | 1 |
| 13 | clema 3 levels | C11,C12,C13,C14,C15,C16,C17,C18,C19,C20,C21,C32,C101,C102,C103,C104,C105,C106,C107,C108,C109,C110,C111,C301,C302,C303,C304,C305,C306,C307,C308,C309,C310,C311,CL5,CL6,CL7,CR4,CI123,CI124,CI125,CI1,CI2,CI100,CI101,CI102,CI103,CI104,CI105,CI106,CI107,CI108,CI109,CI110,CI111,CI112,CI113,CI114,CI115,CI116,CI117,CI118,CI119,CI121,CI122 | 65 |
| 14 | Reset | RELAY4,RELAY1,RELAY3,RELAY2 | 4 |
| 15 | presostato | U8 | 1 |
| 16 | FY-F100I | U5 | 1 |
| 17 | SFC-R212 | S1,S5 | 2 |
| 18 | Emergency Stop 2 | SW4 | 1 |
| 19 | Interlock | SW5 | 1 |
| 20 | PTFIX 6/18 | B1,B2 | 2 |
| 21 | 6EP1334-2BA20 | U1 | 1 |
| 22 | S7-1200 1215C AC/DC/RLY | U2 | 1 |
| 23 | 6ES72231PL320XB0 | U3 | 1 |
| 24 | SM1221 DC | U7 | 1 |
| 25 | NANO2SMF_R451.062L | F1 | 1 |
| 26 | CFD Controller | ROBOT1 | 1 |
| 27 | MDDLN45se | D1 | 1 |
| 28 | clema | J13,J14,J15 | 3 |
| 29 | MHMF102L1G6M | M1 | 1 |
| 30 | Electrovalve | EV1,EV2,EV3,EV4 | 4 |
| 31 | K2-3.6×6.1_SMD | KEY1,KEY2 | 2 |
| 32 | Safety Light Curtain | S4 | 1 |
| 33 | Sensor 24V | SN1,SN2,SN3,SN4,SN5,SN6,SN7,SN8,SN9,SN10,SN11,SN12,SN13,SN14,SN15,SN16,SN17,SN18 | 18 |
| 34 | Emergency Stop 1 | SW3 | 1 |
| 35 | Tower Lamp Signal | U6 | 1 |
