STD 01 Display 4D 2.2 7Seg
- 0
Description
Mostrador para númers 99.99 com display de 7 segmentos.
Design Drawing

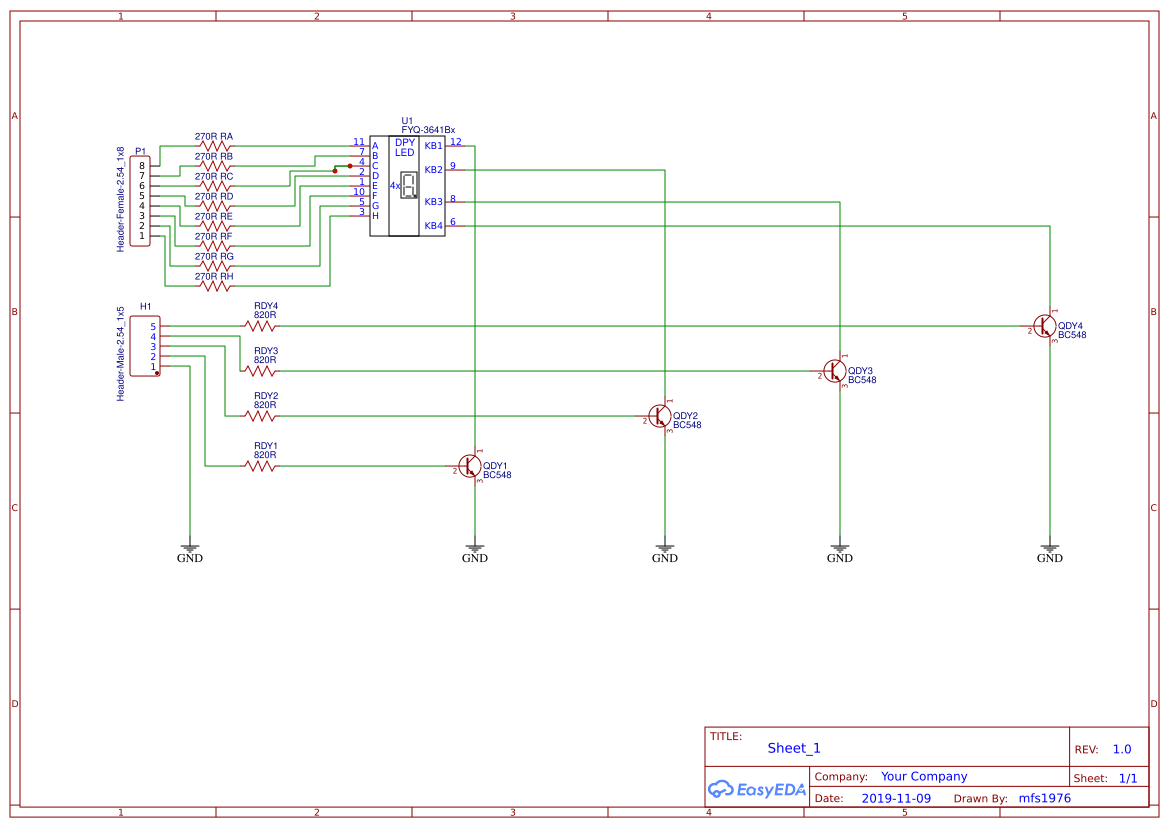

schematic diagram
（
1
/
）
PCB
（
1
/
）
The preview image was not generated, please save it again in the
editor.
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | Header-Male-2.54_1x5 | H1 | DIP-1X5P-2.54MM-M | 1 |
| 2 | Header-Female-2.54_1x8 | P1 | HDR-8X1/2.54 | 1 |
| 3 | BC548 | QDY1,QDY2,QDY3,QDY4 | BC548 | 4 |
| 4 | 270R | RA,RB,RC,RD,RE,RF,RG,RH | AXIAL-0.4 | 8 |
| 5 | 820R | RDY1,RDY2,RDY3,RDY4 | AXIAL-0.4 | 4 |
| 6 | FYQ-3641Bx | U1 | FYQ-3641AX/BX-XX | 1 |
