Std edition 10 Watt 50ohm QRP Dummy Load

No Profile

License: Public Domain

Published Time: 2018-06-07 15:45:18
  • 861
  • 0
  • 0
Description

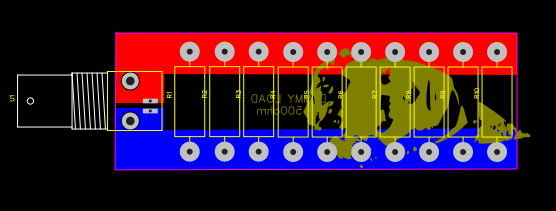

10x 500ohm 1 watt resistors for QRP 50ohm dummy load at 10 watts. Georg Ohm is silk screened on the back of the circuit board from a public domain image.
Design Drawing
schematic diagram
1 /
PCB
1 /
Empty
ID Name Designator Footprint Quantity
1 500 R1,R2,R3,R4,R5,R6,R7,R8,R9,R10 AXIAL-1.0 10
2 BNCPTH U1 BNC 1
