STD 14s breakout

  • 312
  • 0
  • 0

No Profile

License: CC-BY 3.0

Creation time: 2020-09-23 07:24:55
Update time: 2020-10-03 09:08:34
Description

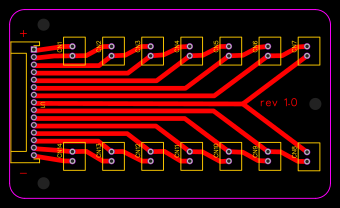

Single 15pin JST to 14 2pin JST breakout board. Original use case related to my intention of using diyBMS: https://github.com/stuartpittaway/diyBMSv4
Design Drawing
schematic diagram
1 /
PCB
1 /
Empty
ID Name Designator Footprint Quantity BOM_Supplier BOM_Supplier Part BOM_Manufacturer BOM_Manufacturer Part
1 B2B-XH-A-R(LF)(SN) CN12,CN13,CN14,CN1,CN2,CN3,CN7,CN11,CN10,CN9,CN8,CN4,CN5,CN6 CONN-TH_B2B-XH-A 14 LCSC C495685 JST Sales America B2B-XH-A-R(LF)(SN)
2 S15B-PH-K-S-(LF)(SN) U1 CONN-TH_15P-P2.00_S15B-PH-K-S(LF)(SN) 1 LCSC C157936 JST Sales America S15B-PH-K-S-(LF)(SN)
