STD Pinetime NRF52840
Pinetime NRF52840
License
Public Domain
License: Public DomainMode:
Mode
Editors' pickEditors' pick
- 0
Update time：
2023-10-03 19:59:32
Creation time：
2022-11-19 12:11:40
Description
Description

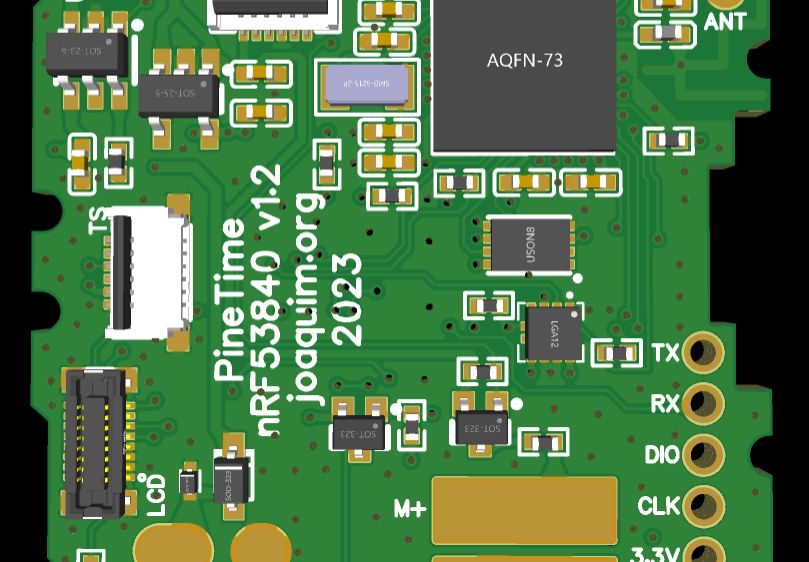

Pinetime replacement board with NRF52840
https://www.joaquim.org/pinetime-upgrade-board/
https://wiki.pine64.org/index.php/PineTime
https://www.instagram.com/p/CnuhBwHLC5l/?utm_source=ig_web_copy_link
Design Drawing
Design Drawing
schematic diagram
（
1
/
）
PCB
（
1
/
）
-
PCB_Pinetime40 V1.0
Open in Editor -
PCB_Pinetime40 V1.1
Open in Editor -
PCB_Pinetime40 V1.2
Open in Editor -
PCB_Pinetime40 V1.4 L2
Open in Editor -
PCB_Pinetime40 V1.3
Open in Editor -
PCB_Pinetime40 V1.5 L2
Open in Editor -
PCB_Pinetime40 V1.6 L2
Open in Editor
The preview image was not generated, please save it again in the
editor.
| ID | Name | Designator | Footprint | Quantity | BOM_Supplier | BOM_Manufacturer Part | BOM_Manufacturer | BOM_Supplier Part |
|---|---|---|---|---|---|---|---|---|
| 1 | 4.7uF | C1,C6 | C0402 | 2 | LCSC | CL05A475MP5NRNC | SAMSUNG(三星) | C23733 |
| 2 | 1uF | C2,C3,C14,C15 | C0402 | 4 | LCSC | CL05A105KA5NQNC | SAMSUNG(三星) | C52923 |
| 3 | 100nF | C4 | C0402 | 1 | LCSC | GCM155R71C104KA55D | muRata(村田) | C85857 |
| 4 | 100nF | C9,C5,C7,C8,C12 | C0402_NEW | 5 | LCSC | CL05B104KO5NNNC | SAMSUNG(三星) | C1525 |
| 5 | RB501V-40 | D1 | SOD-323_L1.8-W1.3-LS2.5-RD | 1 | LCSC | RB501V-40 | CJ(江苏长电/长晶) | C8528 |
| 6 | ESD9B3.3ST5G | D3 | SOD-923_L0.8-W0.6-LS1.0-BI | 1 | LCSC | ESD9B3.3ST5G | onsemi(安森美) | C96512 |
| 7 | HR | FPC1 | FFC-SMD_6P-P0.50_F0504-H-06-10G-R | 1 | LCSC | F0504-H-06-10G-R | XFCN | C510962 |
| 8 | TP | FPC2 | FFC-SMD_6P-P0.50_F0504-H-06-10G-R | 1 | LCSC | F0504-H-06-10G-R | XFCN | C510962 |
| 9 | WST2005 | Q1,Q2 | SOT-323_L2.0-W1.3-P1.30-LS2.1-BR | 2 | LCSC | WST2005 | WINSOK微硕 | C719081 |
| 10 | 10kΩ | R2 | R0402 | 1 | LCSC | 0402WGF1002TCE | UNI-ROYAL(厚声) | C25744 |
| 11 | 100kΩ | R3,R4,R6,R9,R18 | R0402 | 5 | LCSC | QR0402F100KQ10 | Ever Ohms Tech | C176106 |
| 12 | 30 | R5,R19 | R0402 | 2 | LCSC | AF0402JR-0730RL | YAGEO | C144058 |
| 13 | 2.2K | R7,R10,R11 | R0402 | 3 | LCSC | RC0402JR-072K2L | YAGEO(国巨) | C163447 |
| 14 | 100K | R14 | R0402 | 1 | LCSC | QR0402F100KQ10 | UNI-ROYAL(厚声) | C176106 |
| 15 | 1M | R16,R17 | R0402 | 2 | LCSC | RC0402FR-071ML | YAGEO(国巨) | C138033 |
| 16 | XT25F32BDFIGT-S | U1 | DFN-8_L3.0-W2.0-P0.50-BL-EP_XT25XXX | 1 | LCSC | XT25F32BDFIGT-S | XTX | C558849 |
| 17 | 1.3" RGB TFT LCD | U2 | 1.3" 240X240 RGB TFT LCD | 1 | LCSC | N133-2424TCBIG01-H12 | Shenzhen Allvision Tech | C2890617 |
| 18 | AP2112K-3.3TRG1 | U3 | SOT-25-5_L3.0-W1.8-P0.95-LS3.0-BR | 1 | LCSC | AP2112K-3.3TRG1 | DIODES | C51118 |
| 19 | SE9017-HF_C115751 | U4 | SOT-23-6_L2.9-W1.6-P0.95-LS2.8-BR | 1 | LCSC | SE9017-HF | Seaward Elec | C115751 |
| 20 | AXE516127D | U6 | CONN-SMD_16P-P0.40_PANASONIC_AXE516127D | 1 | LCSC | AXE516127D | PANASONIC(松下) | C2982241 |
| 21 | BMA400 | U7 | LGA-12_L2.0-W2.0-P0.50-BL | 1 | LCSC | BMA400 | Bosch(博世) | C437655 |
| 22 | 1.5pF | C10 | C0402 | 1 | LCSC | 0402CG1R5C500NT | FH(风华) | C1552 |
| 23 | 100pF | C11 | C0402 | 1 | LCSC | 0402CG101J500NT | FH(风华) | C1546 |
| 24 | 12pF | C13,C16,C17,C18 | C0402 | 4 | LCSC | 0402CG120J500NT | FH(风华) | C1547 |
| 25 | 4.7nH | L1 | L0402 | 1 | LCSC | SDCL1005C4N7STDF | Sunlord(顺络) | C13595 |
| 26 | NRF52840-QIAA-R | U5 | AQFN-73_L7.0-W7.0-P0.50-BL-EP4.8 | 1 | LCSC | NRF52840-QIAA-R | NORDIC | C190794 |
| 27 | 32.768kHz | X1 | OSC-SMD_L3.2-W1.5 | 1 | LCSC | X321532768KGD2SI | YXC(扬兴晶振) | C620155 |
| 28 | 32MHz | X3 | CRYSTAL-SMD_4P-L2.0-W1.6-BL | 1 | LCSC | X201632MKB4SI | YXC(扬兴晶振) | C718072 |
