Std EditionPiDuino Shift Registers

License: MIT

Published Time:2017-04-14 21:53:54
  • 951
  • 0
  • 1
Description

Schematics for a robot control system that uses a Raspberry Pi Zero, an Arduino Pro Mini, some voltage regulators, some motor controllers, and a rat's nest of wire.

These shift registers connect to the Arduino and help control the motors.

Documents

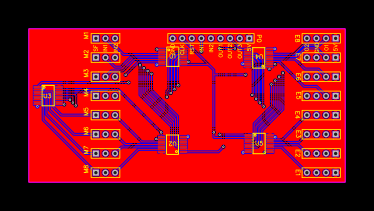

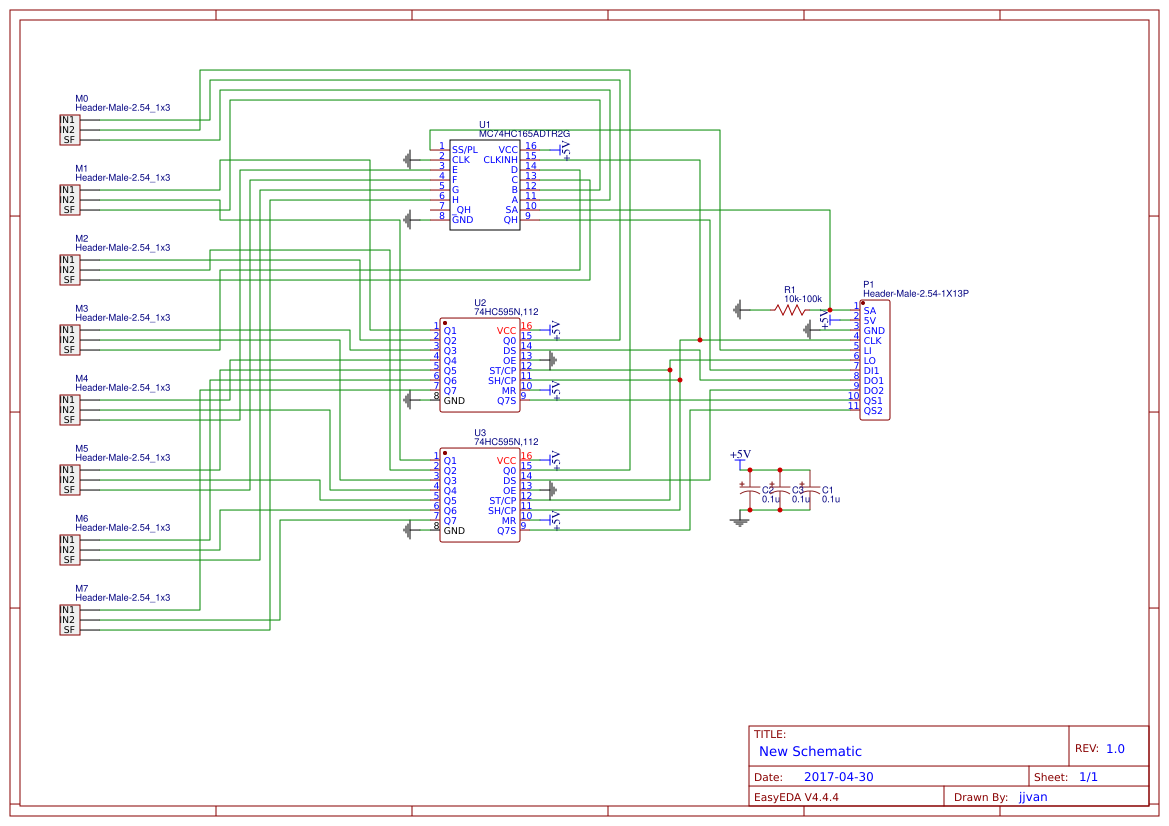

Shift Registers

Open in editor

Shift Registers v1

Open in editor

Shift Registers v2

Open in editor

Shift Registers v3

Open in editor

Shift Registers 2 v1

Open in editor

Shift Registers 2 v2

Open in editor
ID Name Designator Footprint Quantity
1 MC74HC165ADTR2G U1 DIP-16 1
2 Header-Male-2.54_1x3 M1,M2,M3,M4,M5,M6,M7,M0 HDR-3X1/2.54 8
3 74HC595N,112 U2,U3 DIP-16 2
4 0.1u C1,C2,C3 0603 3
5 10k-100k R1 0603 1
6 Header-Male-2.54-1X13P P1 HDR1X11 1
