Low-cost Bluetooth Scanning Code Scanning Payment Module
License
：Public Domain
Description
Video link: https://www.bilibili.com/video/BV12F411a7eN?
Application areas:
♦ Scan code to pay socket
♦ Scan the QR code to pay for the washing machine
♦ Scan the QR code to pay for various recreational vehicles
♦ Scan and pay for various engineering vehicles
♦ Scan the QR code to pay at the mahjong machine
♦ Scan the QR code to pay for the air purifier
♦ Scan the QR code to pay for the massage chair
Module features :
√ Bluetooth 5.1 protocol
√ Countdown display
√ Timing voice reminder
√ Communication distance within 15 meters
Product overview

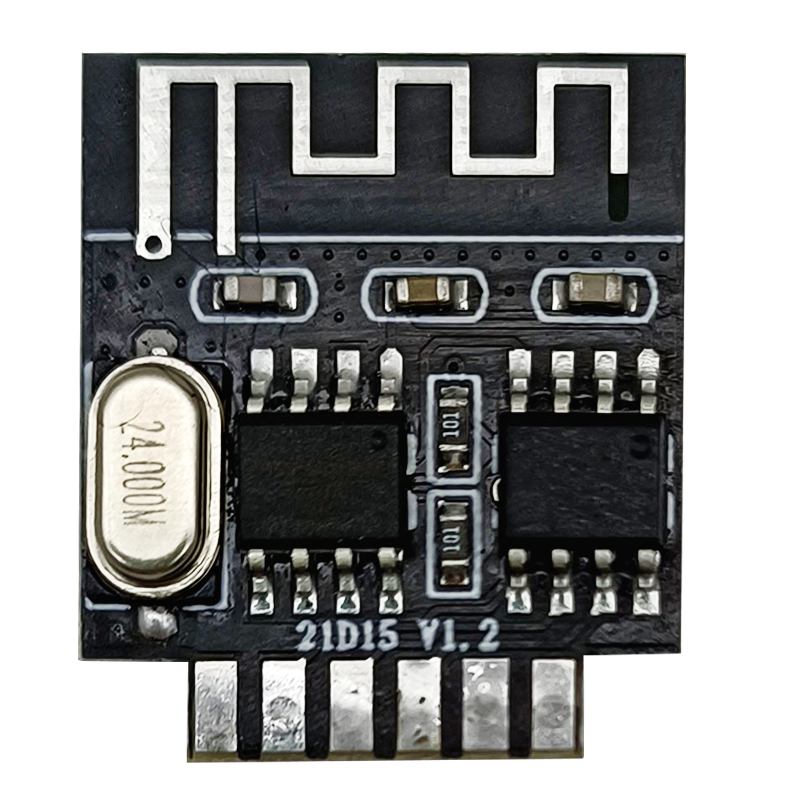

NY-6801-001 Bluetooth module is based on Bluetooth 5.1 version. It is small in size, equipped with display and voice driver. It is simple and convenient to develop. It is suitable for customers with R&D capabilities to add scan code payment functions to traditional devices.
After the user scans the code to pay, the D3 pin of the NY-6801-001 Bluetooth module outputs a high level. After the timer ends, the D3 pin outputs a low level. The MCU can determine whether the device needs to work through the level status of the D3 pin. It can also be made separately into a scan code payment controller to control the power on and off of the device.
Hardware parameters

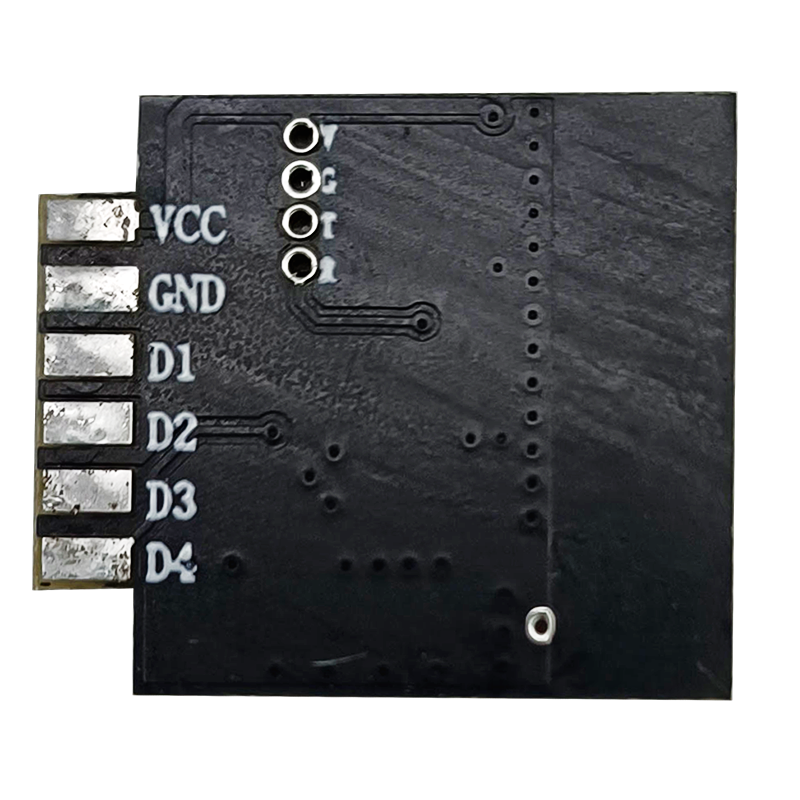

2.1 Pin description
|
Pin |
Pin name |
Pin description |
|
1 |
VCC |
Positive power supply, input voltage 2.7~3.4V, 3.3V power supply recommended. |
|
2 |
GND |
Power ground. |
|
3 |
D1 |
TM_SCL drives the TM1650 chip and is used to display the countdown time. |
|
4 |
D2 |
TM_SDA drives the TM1650 chip and is used to display the countdown time. |
|
5 |
D3 |
After payment, a high level (3.3V level) is output, and after the timer expires, a low level is output. |
|
6 |
D4 |
Voice chip output is suitable for the control of Jiaren CHD40 single-line voice chip. Voice playback timing: power on, successful payment, 1-minute reminder, end of timer. Voice storage order: 1 Timing end voice 2 Voice of successful payment 3 1 minute countdown reminder voice 4 5-minute countdown reminder voice 5 Power-on voice |
2.2 Performance parameters
|
Project |
Parameter |
Remark |
|
Bluetooth version |
Bluetooth version 5.1 |
|
|
Communication distance |
Within 15 meters |
|
|
Working voltage |
Voltage 2.7~3.4V, 3.3V power supply recommended. |
|
|
Working current |
Standby 40uA, broadcast 4mA |
|
|
Timing length |
Within 12 hours |
|
|
Working temperature |
-35℃~75℃ |
|
|
Module size |
18x20MM |
Platform usage instructions
1.Account registration : Follow Pay Now official account --> Account registration.
2.Bind the device: Pay the official account immediately --> Merchant login --> Bind the device and select the countdown type.
(Note: Bluetooth devices need to scan the QR code on the shell or packaging bag to add the device. The payment code and the addition code are different)
3.Set the package (the package needs to be set to countdown type).
4.Scan the QR code to pay: After the user scans the QR code to pay, he needs to turn on Bluetooth and positioning, click [Start Device], the D3 pin of the Bluetooth module will output a high level, and when the timer is over, it will output a low level.
Reference Application Plan

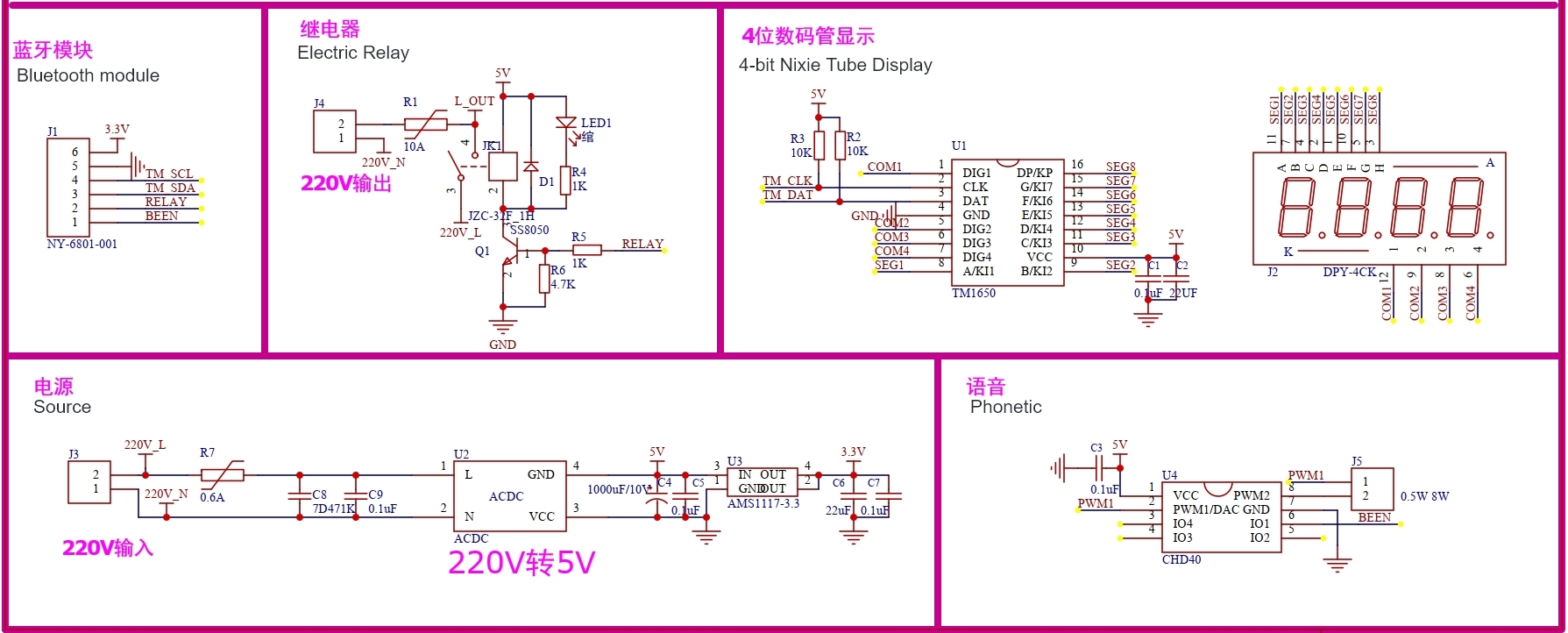

3.1 Scan code to pay socket (applicable to devices that control 220V electricity)

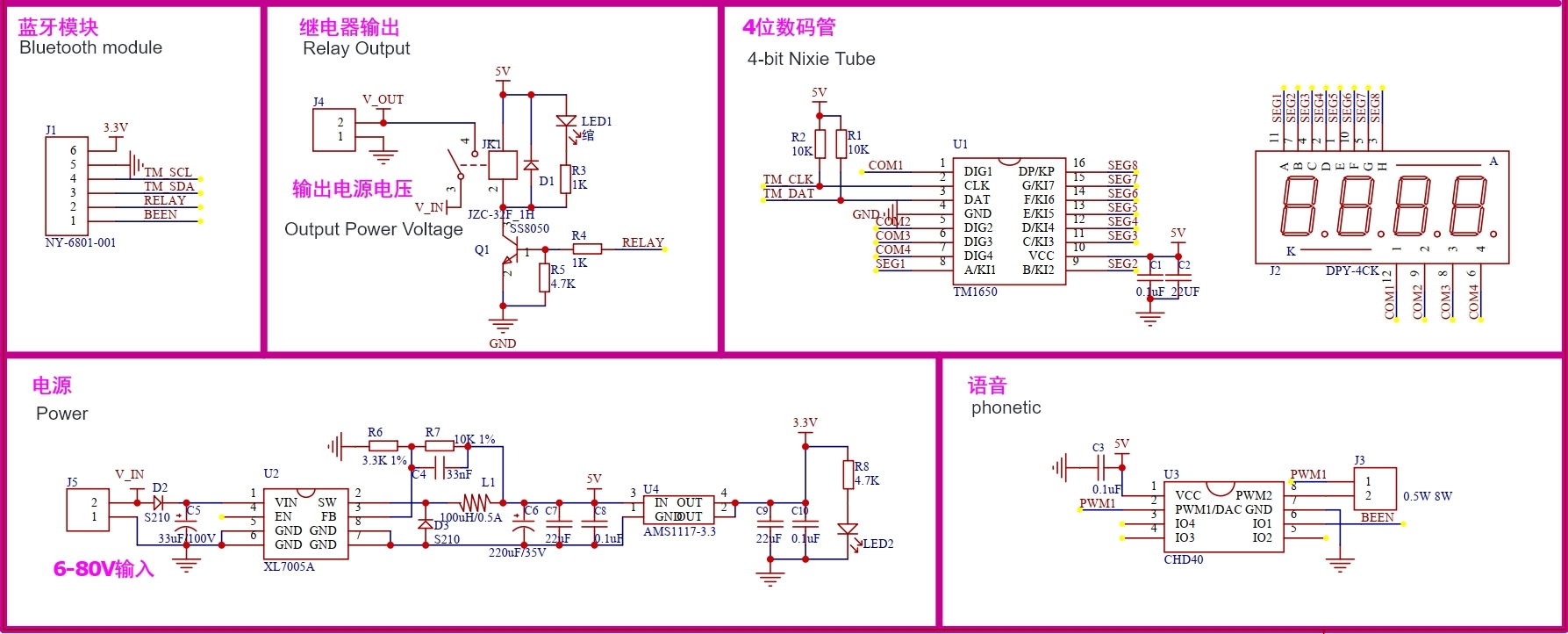

3.2 Scan the QR code to pay for children’s cars (applicable to equipment that controls DC power)
Designed by che180 (from OSHWHub)
Link:https://oshwhub.com/che180/di-cheng-ben-de-lan-ya-sao-ma-zh
