STD IOBus - Serial card (88-2SIO)
Profile：Serial interface (88-2SIO) for Altair 8800 Simulator I/O Bus
License: GPL 3.0
Project source: Cloned from 2SIO
Description
For more information see [https://github.com/dhansel/Altair8800-IOBus](https://github.com/dhansel/Altair8800-IOBus)
Design Drawing

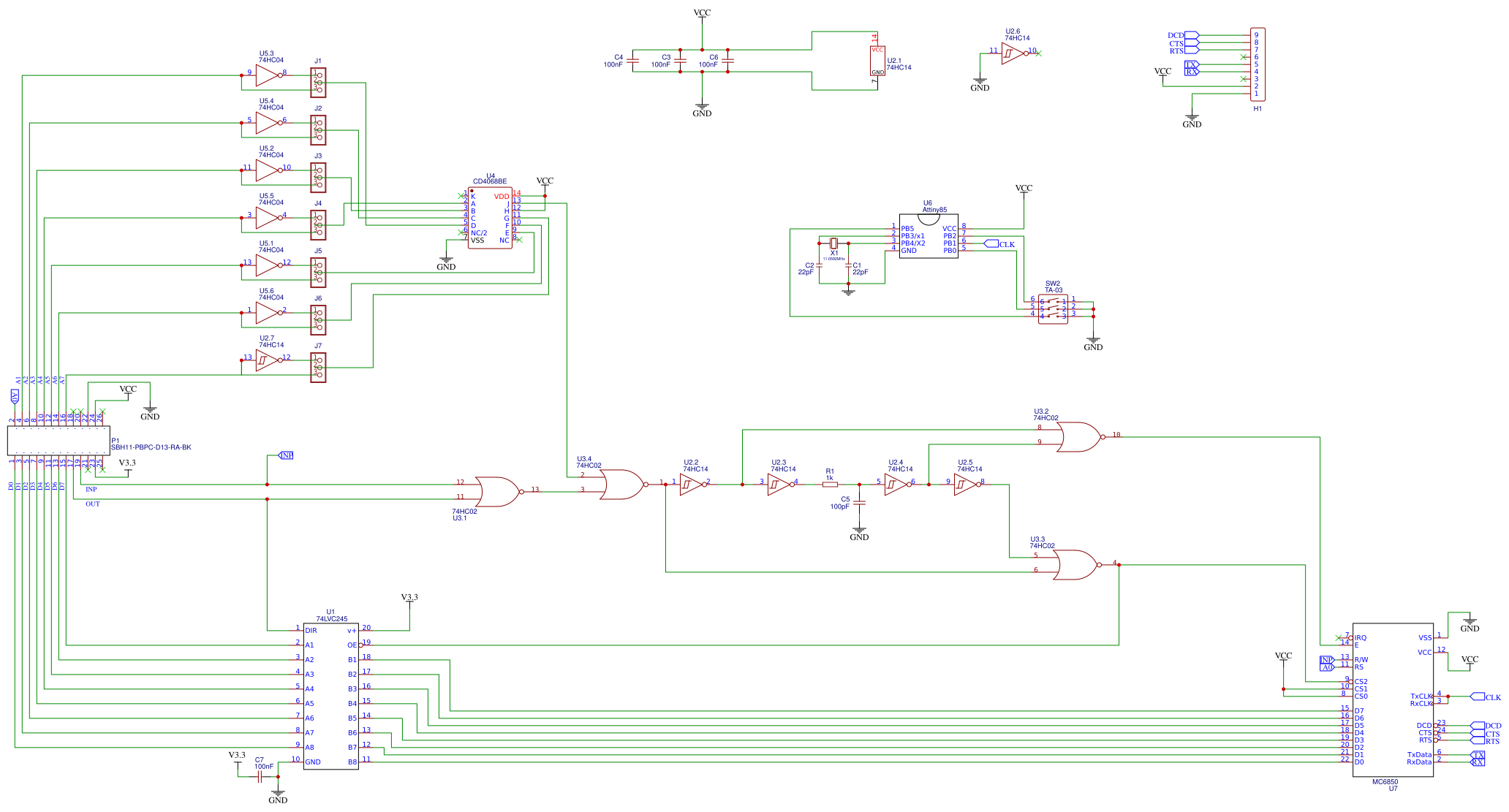

schematic diagram
（
1
/
）
PCB
（
1
/
）
Empty
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | 22pF | C1,C2 | CERAMIC-2.54 | 2 |
| 2 | 100nF | C3,C4,C6,C7 | PKG-CERAMIC CAPACITOR 6X2 | 4 |
| 3 | 100pF | C5 | PKG-CERAMIC CAPACITOR 6X2 | 1 |
| 4 | Header-Female-2.54_1x9 | H1 | HDR-TH_9P-P2.54-V | 1 |
| 5 | CON_HEADER_1X03-PTH | J1,J2,J3,J4,J5,J6,J7 | M1X3 | 7 |
| 6 | SBH11-PBPC-D13-RA-BK | P1 | SBH11-PBPC-D13-RA-BK | 1 |
| 7 | 1k | R1 | RTH025W | 1 |
| 8 | TA-03 | SW2 | SW-TH_6P-L9.2-W9.6-P2.54-LS7.62 | 1 |
| 9 | 74LVC245 | U1 | DIL20 | 1 |
| 10 | CD4068BE | U4 | DIP14 | 1 |
| 11 | Attiny85 | U6 | DIP8 | 1 |
| 12 | MC6850 | U7 | DIP24W | 1 |
| 13 | 11.0592MHz | X1 | HC-49S | 1 |
| 14 | 74HC14 | U2 | DIP-14_300MIL | 1 |
| 15 | 74HC02 | U3 | 74LS02 | 1 |
| 16 | 74HC04 | U5 | DIP14 | 1 |
