OngoingM7106B_Vince
STDM7106B_Vince
264
0
0
0
Mode:Full
License
：Public Domain
Creation time:2023-11-18 16:54:36Update time:2023-11-18 18:40:14
Description

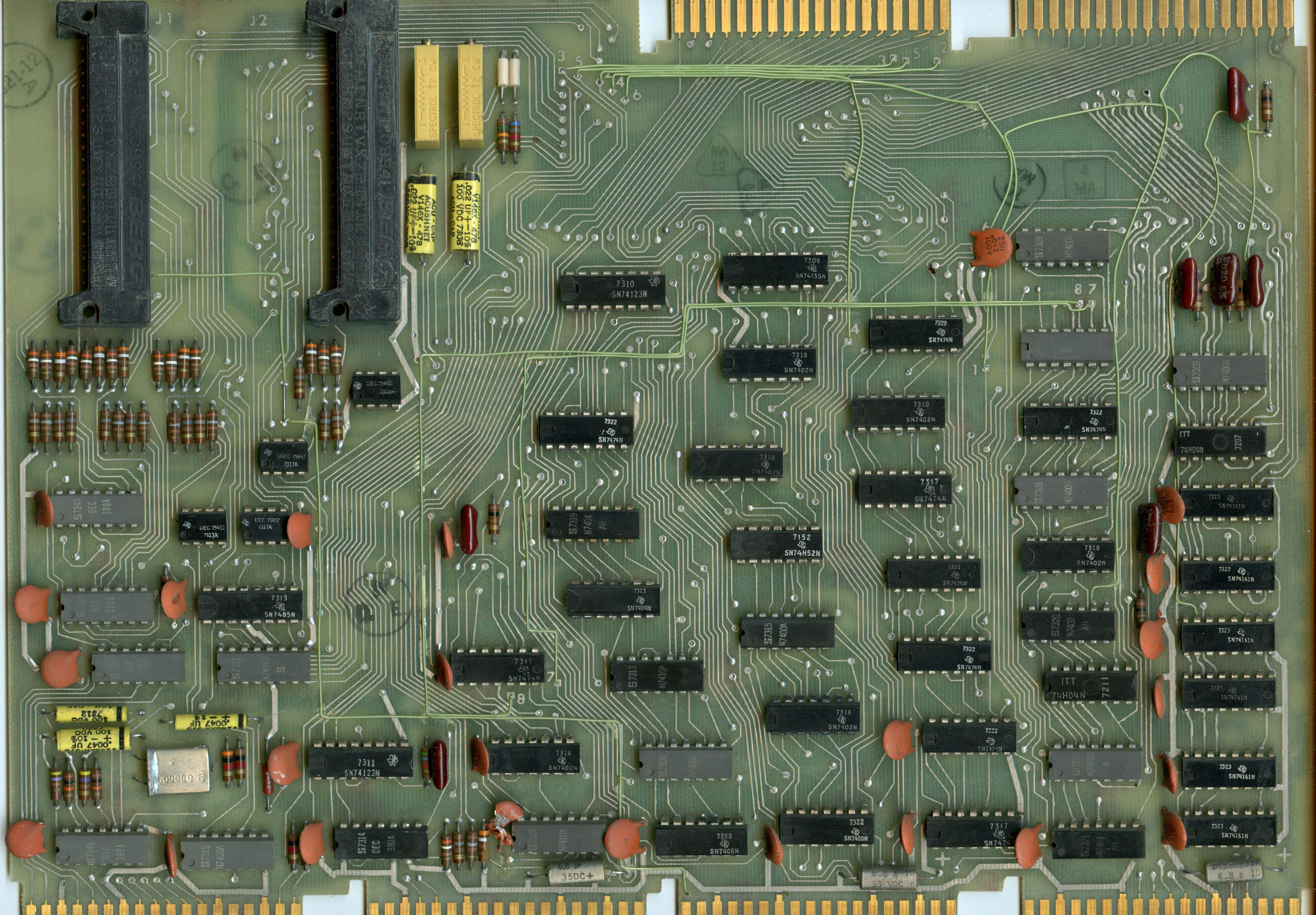

DEC M7106 version B PDP-8/e Omnibus RK8-E disk controller module for RK05 disk drive, 3rd of 3 board set
Board design captured by Vince Slyngstad
Original files are available from Vince's page: https://so-much-stuff.com/pdp8/flipchip/Mxxx.htm
I have only copied Vince's files into EasyEDA so people can more easily view them online.
Design Drawing
