Description

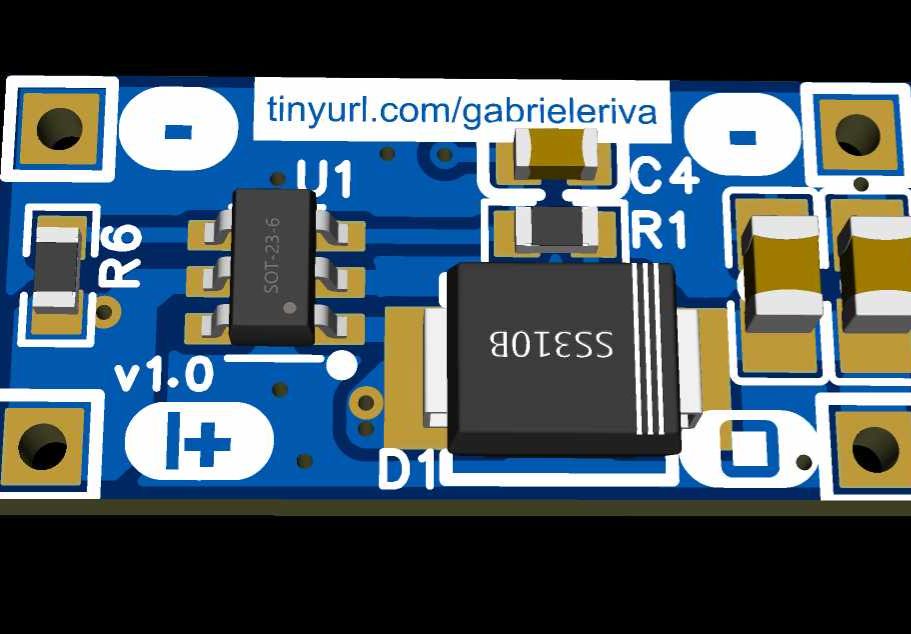

Step up converter with voltage selector 5V - 9V - 12V - 24V
Mini dimensions: 8,6mm x 18,2mm
Components in top and bottom side.
See PCB2 for another dimensions
Youtube video: https://youtu.be/hnXStiNwsbo
