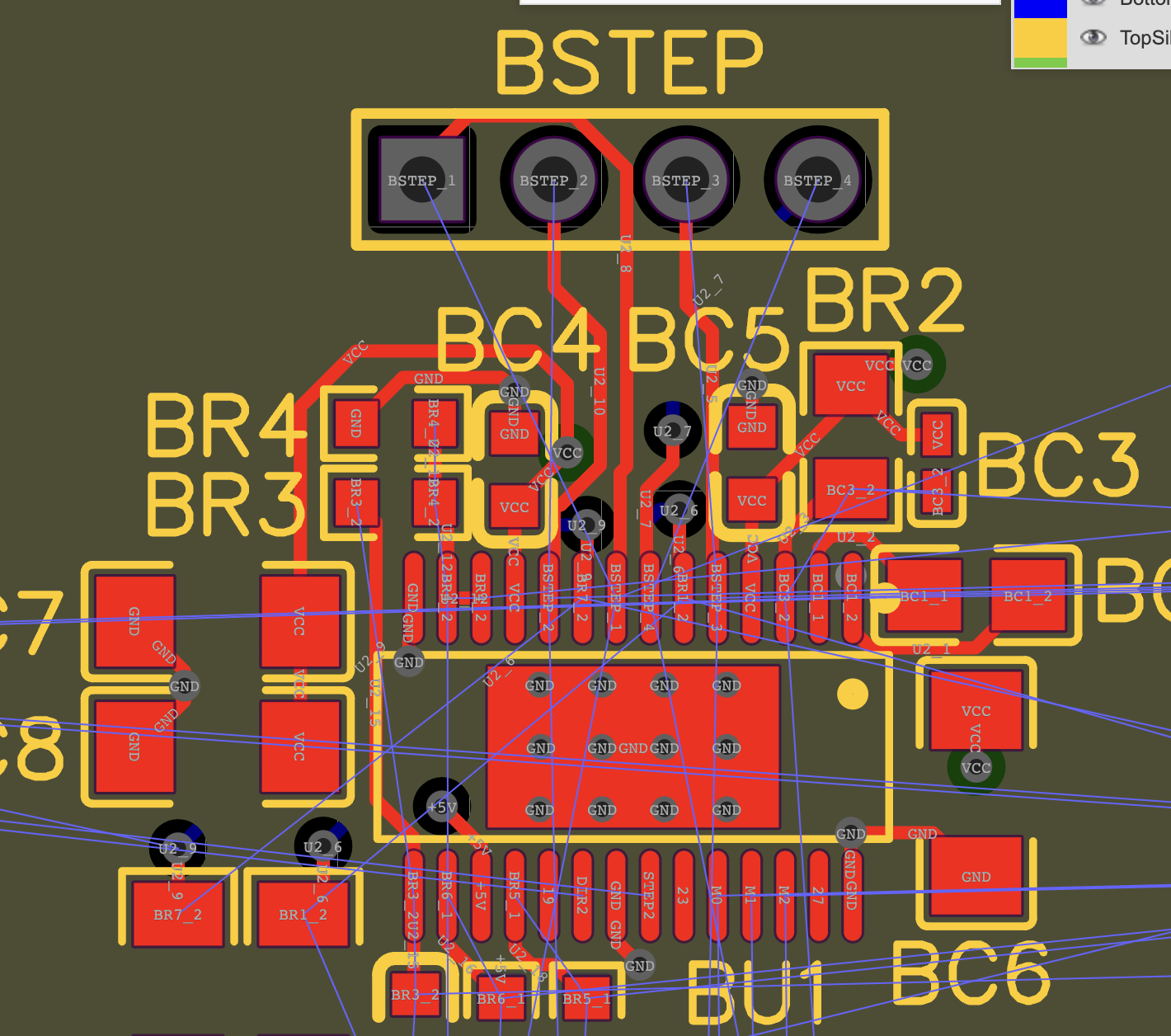

I need to place one component design 6 times within my PCB. Since it takes a while to layout and route the components within it I tried using a PCB module. The component names have a prefix applied, however, the wire names do not have the prefix applied. This leads to all these "unconnected" traces and clearance problems:

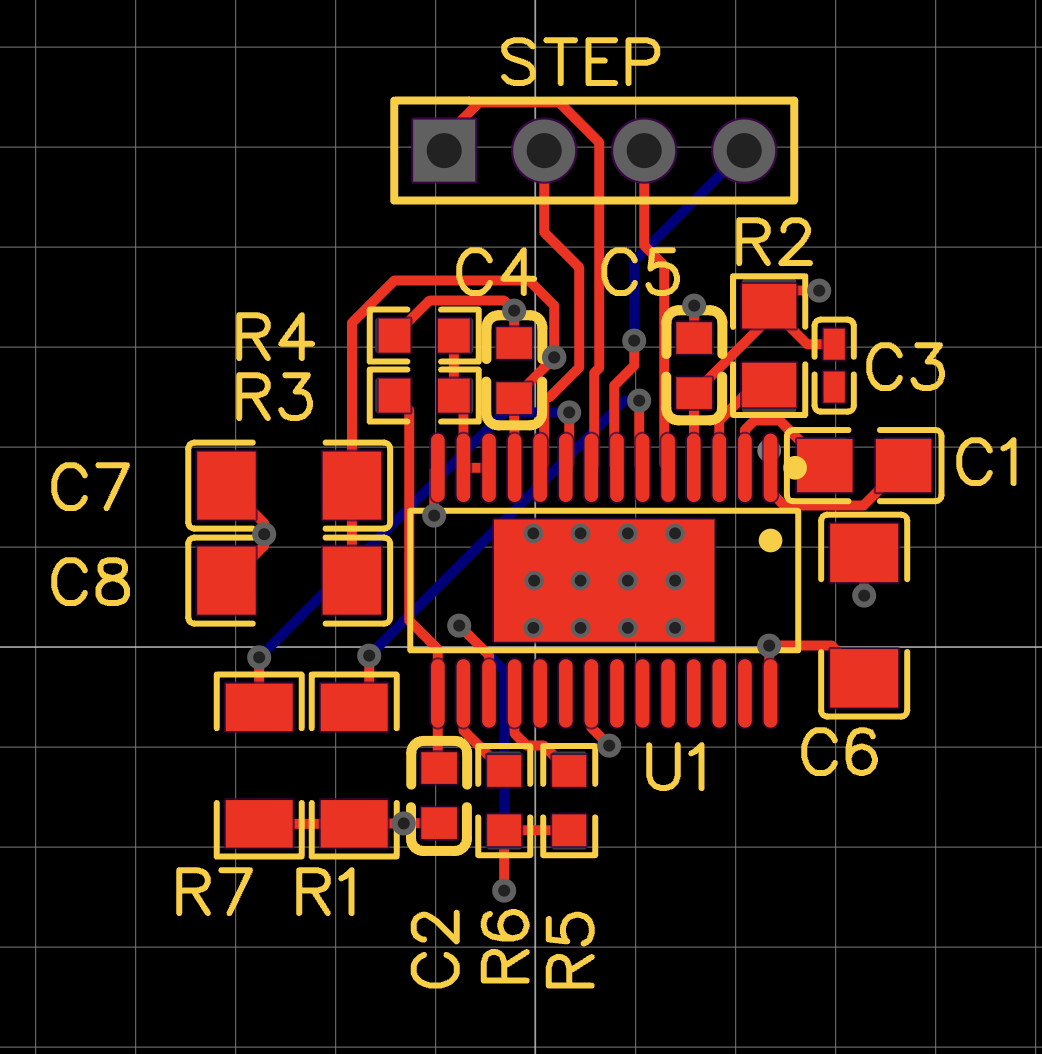

This is what the PCB module looks like:

How can I have the prefix added to the wire names, or is there a better way to have one PCB layout duplicated 6 times but with some separate nets?
