STD L293DD motor driver for Arduino mega
License: Public Domain
- 0
Description
It's driver, with piezo buzzer, for four brush or two steppers mottors
Design Drawing
schematic diagram
（
1
/
）

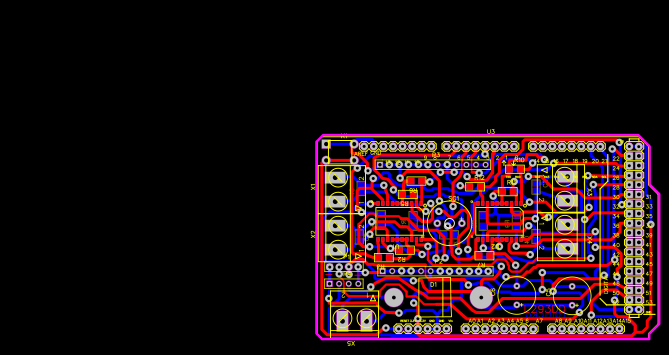

PCB
（
1
/
）
The preview image was not generated, please save it again in the
editor.
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | L293DD | U1,U2 | SOIC20-1.27-12.5X7.5MM | 2 |
| 2 | ARDUINO-MEGA | U3 | ARDUINO_MEGA-PRO-3.3V | 1 |
| 3 | 10k | R1,R2,R3,R4,R5,R6,R7,R8,R9,R10,R11,R12 | C1206 | 12 |
| 4 | AKL701_213 | X1,X2,X3,X4,X5 | AKL701_2_13 | 5 |
| 5 | 100nf | C1,C2,C3,C4 | C0805 | 4 |
| 6 | DIODE-D-5 | D1 | dioda | 1 |
| 7 | 470uf/35V | C5,C6 | RAD-394 | 2 |
| 8 | BUZZER | SG1 | BUZZER-12MM-KIT | 1 |
| 9 | 1M | R13 | C1206 | 1 |
| 10 | SIP4 | P1,P4 | HDR1X4 | 2 |
| 11 | SIP12 | P2,P3 | HDR1X12 | 2 |
| 12 | TS-1109 | K1 | SW4-6.0X6.0X5.0MM | 1 |
| 13 | CON_TERMINAL_BLOCK_02-5MM | J1 | TERMINAL_BLOCK_2P_5 | 1 |
