STD E bike

Project Status: Ongoing

License:

  • 404
  • 0
  • 0
Creation time: 2018-04-12 20:11:18
Update time: 2019-03-27 13:08:35
Description
Empty
Design Drawing

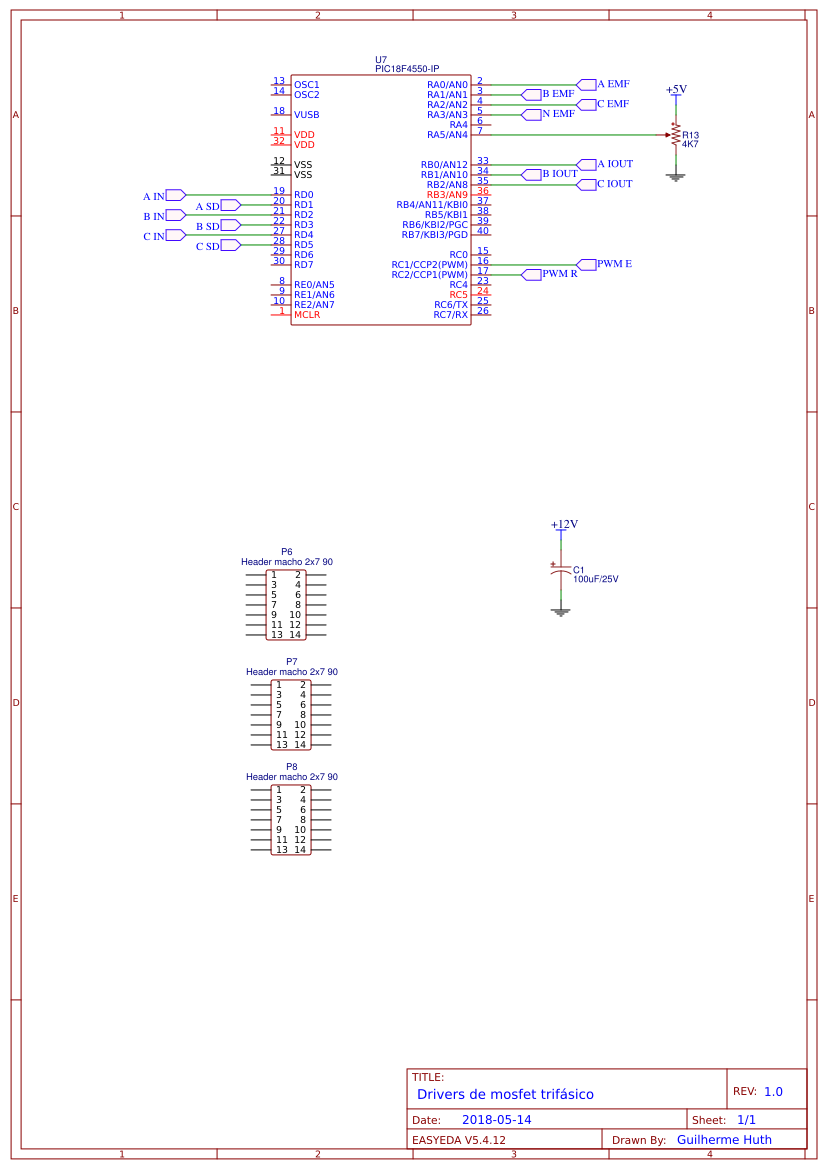

schematic diagram
1 /
PCB
1 /
The preview image was not generated, please save it again in the editor.
ID Name Designator Footprint Quantity
1 100uF/25V C1 CAP-D3.0XF1.5 1
2 PIC18F4550-IP U7 DIP40 1
3 4K7 R13 RES-ADJ_3386P 1
4 Header macho 2x7 90 P6,P7,P8,P2 HDR-7X2/2.54 4
5 IRFB4110 Q1,Q2,Q3,Q4,Q5,Q6 TO-220(TO-220-3) 6
6 ACS758LCB-100B-PFF-T U6,U4,U5 CB-5-PIN 3
7 Heatsink-1 KK1,KK2,KK3,KK4,KK5,KK6 531XXXXXXXX 6
8 100u/25V C9,C6,C3 CAP-D3.0XF1.5 3
9 1N4148 D1,D2,D3,D4,D5,D6,D7,D8,D9,D10 DO-35 10
10 22R R1,R2,R5,R6,R9,R10,R15 0805 7
11 100n C2,C4,C7,C5,C8,C14 0805 6
12 100nF C10 0805 1
13 Header femea 2x7 180 P1,P3,P4,P5 HDR-7X2/2.54 4
14 IR2101PBF U1,U2,U3,U12 DIP-8 4
