STD Projeto 5
Profile：Projeto 5
Description

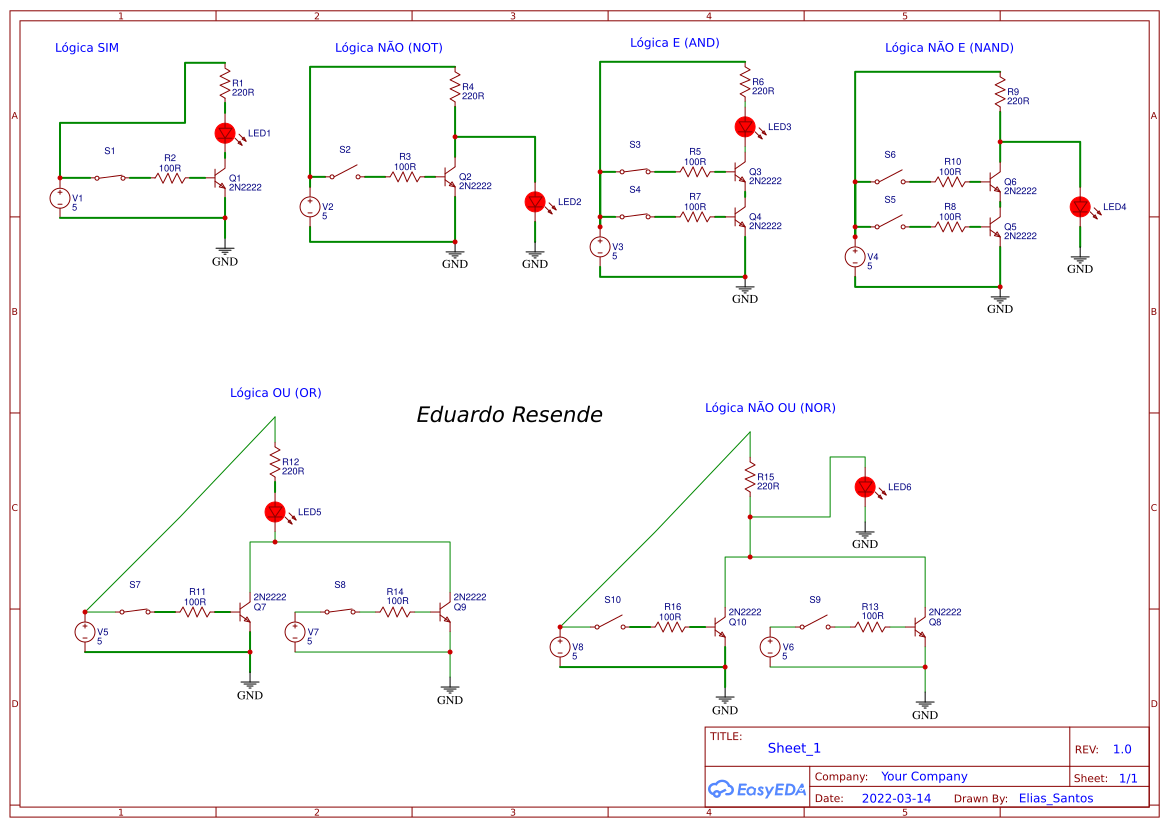

Representação de portas lógicas com circuitos com LED
Design Drawing
schematic diagram
（
1
/
）
PCB
（
1
/
）
Empty
| ID | Name | Designator | Quantity |
|---|---|---|---|
| 1 | LED | LED1,LED2,LED3,LED4,LED5,LED6 | 6 |
| 2 | 2N2222 | Q1,Q2,Q3,Q4,Q5,Q6,Q7,Q8,Q9,Q10 | 10 |
| 3 | 220R | R1,R4,R6,R9,R12,R15 | 6 |
| 4 | 100R | R2,R3,R5,R7,R8,R10,R11,R13,R14,R16 | 10 |
| 5 | SPST_Open | S1,S2,S3,S4,S5,S6,S7,S8,S9,S10 | 10 |
| 6 | 5 | V1,V2,V3,V4,V5,V6,V7,V8 | 8 |
