Project Status:
Ongoing
License: Domínio público
- 0
Description
Transceptor com nrf 24l01 Comunicação via rádio
Design Drawing

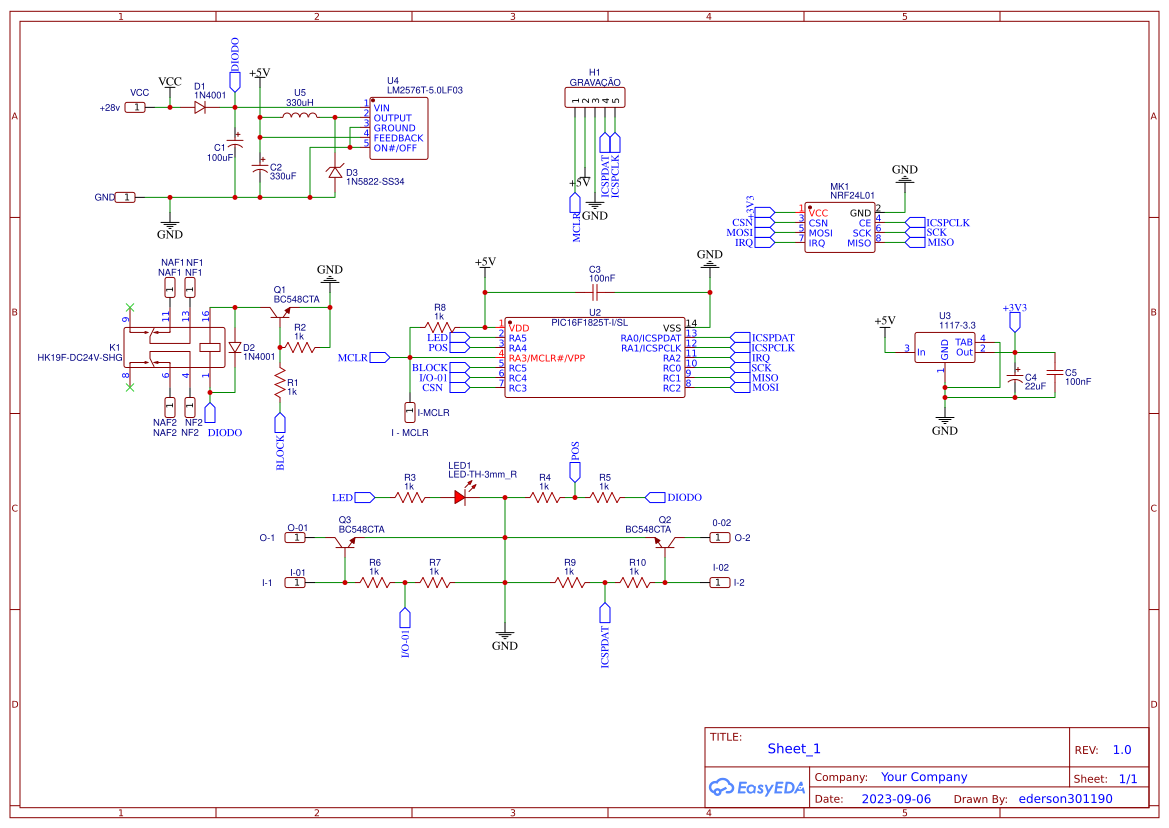

schematic diagram
（
1
/
）
PCB
（
1
/
）
The preview image was not generated, please save it again in the
editor.
| ID | Name | Designator | Footprint | Quantity | JLCPCB Part Class | |
|---|---|---|---|---|---|---|
| 1 | O-2 | 0-02 | HDR-M-2.54_1X1 | 1 | HDR-M-2.54_1x1 | |
| 2 | 100uF | C1 | CAP-TH_BD8.0-P3.50-D0.6-FD_1 | 1 | EGT227M1VF16RRSHP | https://lcsc.com/eda_search?q=C219694&%26type=1&ref=editor |
| 3 | 330uF | C2 | CAP-TH_BD8.0-P3.50-D0.6-FD_1 | 1 | EGT227M1VF16RRSHP | https://lcsc.com/eda_search?q=C219694&%26type=1&ref=editor |
| 4 | 100nF | C3,C5 | CAP-TH_L5.0-W2.5-P2.54-D0.7 | 2 | CC1H104ZA1FD3F5O10MF | https://lcsc.com/eda_search?q=C254088&%26type=1&ref=editor |
| 5 | 22uF | C4 | CAP-TH_BD8.0-P3.50-D0.6-FD_1 | 1 | EGT227M1VF16RRSHP | https://lcsc.com/eda_search?q=C219694&%26type=1&ref=editor |
| 6 | 1N4001 | D1,D2 | DO-41_BD2.4-L4.7-P8.70-D0.9-RD | 2 | 1N4001-C169150 | https://lcsc.com/eda_search?q=C169150&%26type=1&ref=editor |
| 7 | 1N5822-SS34 | D3 | SMB_L4.3-W3.6-LS5.4-RD | 1 | 1N5822-SS34 | https://lcsc.com/eda_search?q=C9900010596&%26type=1&ref=editor |
| 8 | GND | GND | HDR-M-2.54_1X1 | 1 | HDR-M-2.54_1x1 | |
| 9 | GRAVAÇÃO | H1 | HDR-F-2.54_1X5 | 1 | HDR-F-2.54_1x5 | |
| 10 | I-1 | I-01 | HDR-M-2.54_1X1 | 1 | HDR-M-2.54_1x1 | |
| 11 | I-2 | I-02 | HDR-M-2.54_1X1 | 1 | HDR-M-2.54_1x1 | |
| 12 | I - MCLR | I-MCLR | HDR-M-2.54_1X1 | 1 | HDR-M-2.54_1x1 | |
| 13 | HK19F-DC24V-SHG | K1 | RELAY-TH_HK19F-DC24V-SHG | 1 | HK19F-DC24V-SHG | https://lcsc.com/eda_search?q=C133040&%26type=1&ref=editor |
| 14 | LED-TH-3mm_R | LED1 | LED-TH_BD3.0_RED | 1 | LED-TH-3mm_R | |
| 15 | NRF24L01 | MK1 | WIRELM-SMD_NRF24L01 | 1 | NRF24L01 | https://lcsc.com/eda_search?q=C90751&%26type=1&ref=editor |
| 16 | NAF1 | NAF1 | HDR-M-2.54_1X1 | 1 | HDR-M-2.54_1x1 | |
| 17 | NAF2 | NAF2 | HDR-M-2.54_1X1 | 1 | HDR-M-2.54_1x1 | |
| 18 | NF1 | NF1 | HDR-M-2.54_1X1 | 1 | HDR-M-2.54_1x1 | |
| 19 | NF2 | NF2 | HDR-M-2.54_1X1 | 1 | HDR-M-2.54_1x1 | |
| 20 | O-1 | O-01 | HDR-M-2.54_1X1 | 1 | HDR-M-2.54_1x1 | |
| 21 | BC548CTA | Q1,Q2,Q3 | TO-92-3_L4.8-W3.7-P2.54-L | 3 | BC548CTA | https://lcsc.com/eda_search?q=C900802&%26type=1&ref=editor |
| 22 | 1k | R1,R2,R3,R4,R5,R6,R7,R8,R9,R10 | R_AXIAL-0.4 | 10 | R_AXIAL-0.4_US | |
| 23 | PIC16F1825T-I/SL | U2 | SOIC-14_L8.7-W3.9-P1.27-LS6.0-BL | 1 | PIC16F1825T-I/SL | https://lcsc.com/eda_search?q=C626865&%26type=1&ref=editor |
| 24 | 1117-3.3 | U3 | SOT-223-3_L6.4-W3.5-P2.30-LS7.0-BR | 1 | 1117-3.3 | https://lcsc.com/eda_search?q=C5125088&%26type=1&ref=editor |
| 25 | LM2576T-5.0LF03 | U4 | TO-220-5_L10.5-W15.5-P1.70-TL | 1 | LM2576T-5.0LF03 | https://lcsc.com/eda_search?q=C139420&%26type=1&ref=editor |
| 26 | 330uH | U5 | IND-TH_BD6.7-P3.00-D0.7 | 1 | RL0608N-331K | https://lcsc.com/eda_search?q=C962465&%26type=1&ref=editor |
| 27 | +28v | VCC | HDR-M-2.54_1X1 | 1 | HDR-M-2.54_1x1 |
