CompletedLivegrid Upcycled Primary Controller
STDLivegrid Upcycled Primary Controller
License
：GPL 3.0
Description

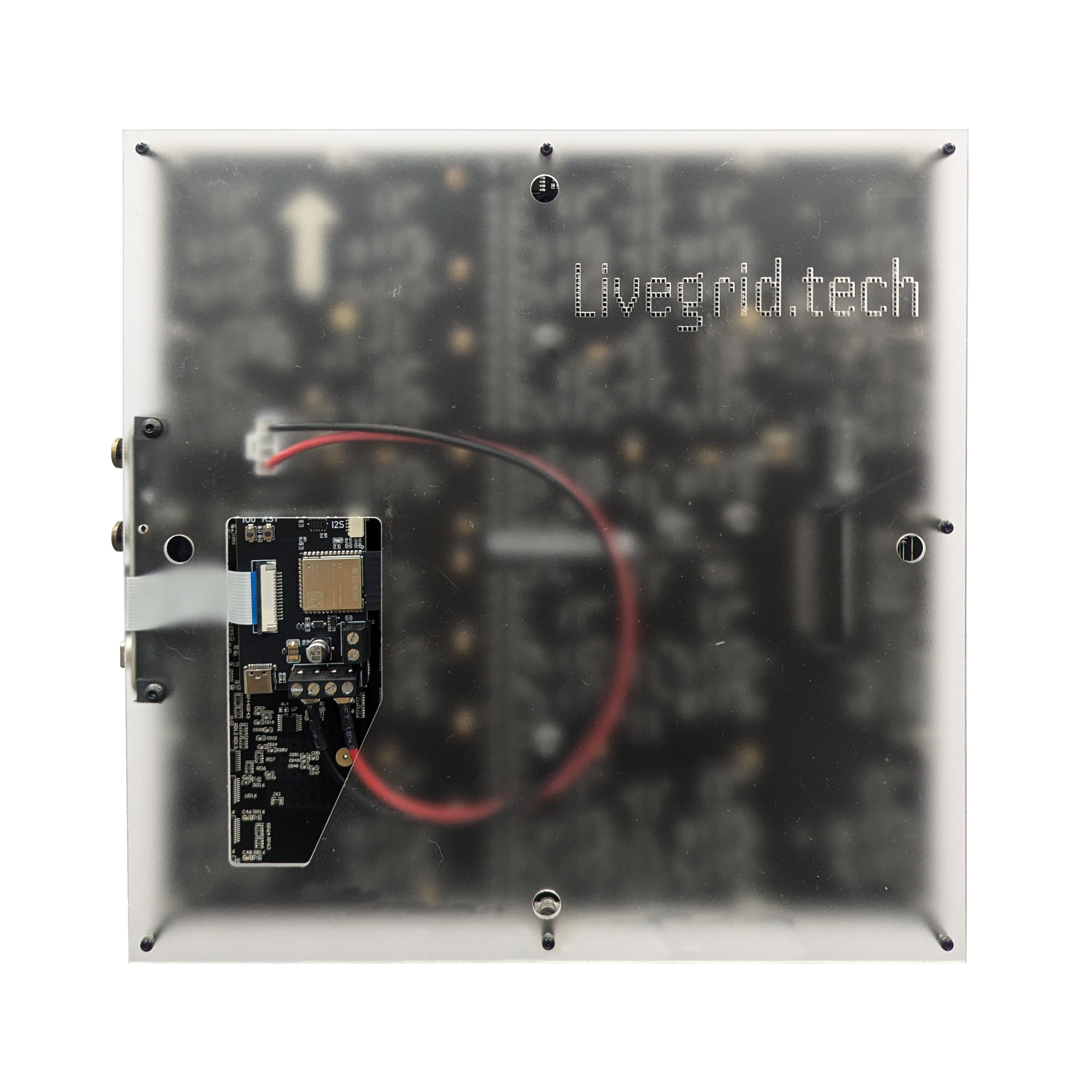

ESP32-S3 based board to control peculiar MBI5153 matrices and works with https://github.com/livegrid/OpenMatrix repo.
Can be powered via USB-C and capable of directly powering a limited number of LED matrices. Can also be powered directly via 5v.
A flat connector is designed to connect to a secondary sensor board which allows a front/side facing interface.
Design Drawing
