CompletedLivegrid-MainController
STDLivegrid-MainController
14
0
0
0
Mode:Full
Reproduction cost: $20
License
：GPL 3.0
Cloned fromLivegrid-ver3
Creation time:2024-04-23 14:31:11Update time:2025-12-02 00:31:03
Description

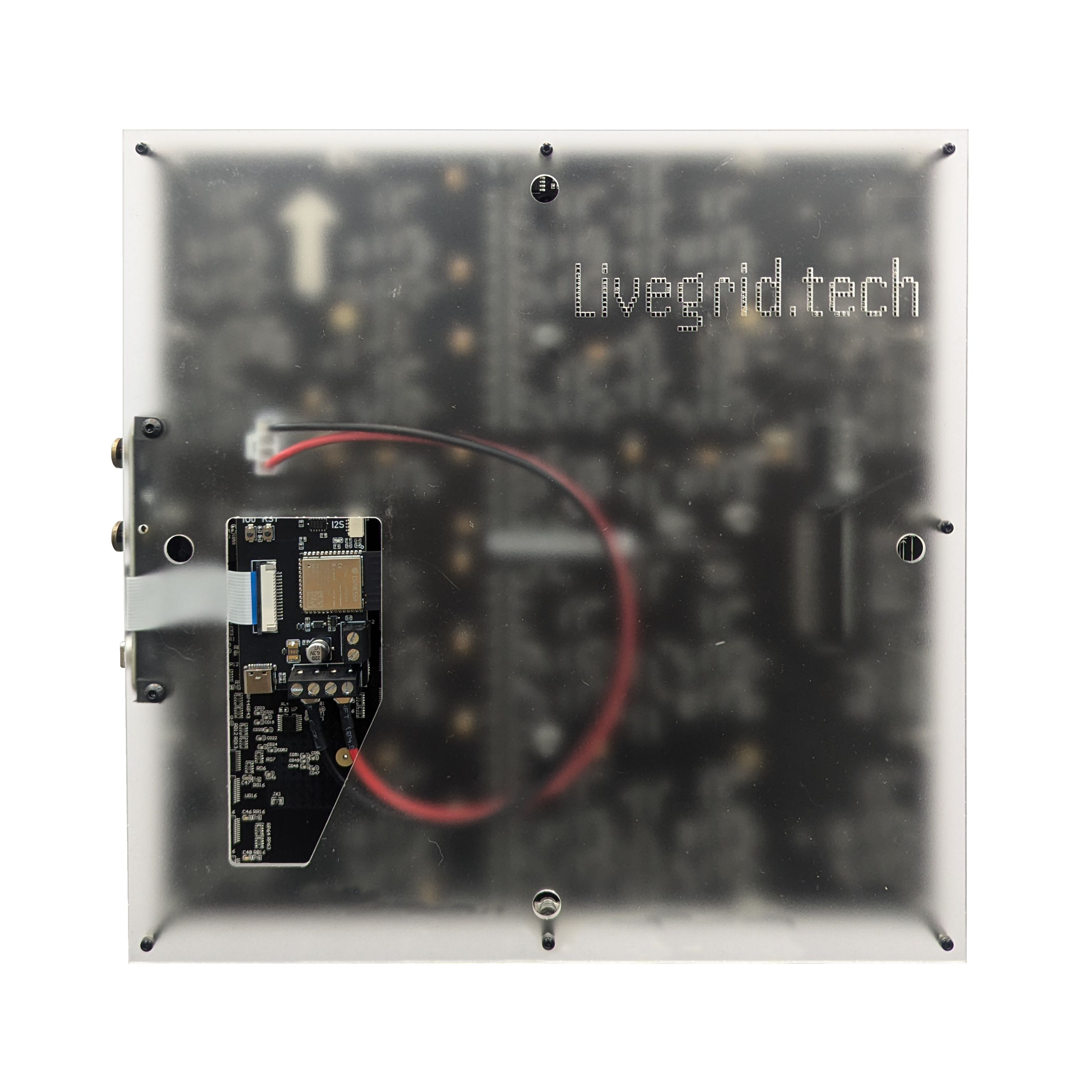

ESP32-S3 based board to control HUB75 LED matrices and works with https://github.com/livegrid/OpenMatrix repo based on https://github.com/mrfaptastic/ESP32-HUB75-MatrixPanel-DMA library.
Can be powered via USB-C and capable of directly powering a limited number of LED matrices. Can also be powered directly via 5v.
A flat connector is designed to connect to a secondary sensor board which allows a front/side facing interface.
Design Drawing
The preview image was not generated, please save it again in the editor.BOM
Bom empty
