STD atmega-asciugatrice
License: Public Domain
Mode: Editors' pick
- 0
Update time：
2019-08-10 19:49:31
Creation time：
2018-04-26 16:12:56
Description
Empty
Design Drawing

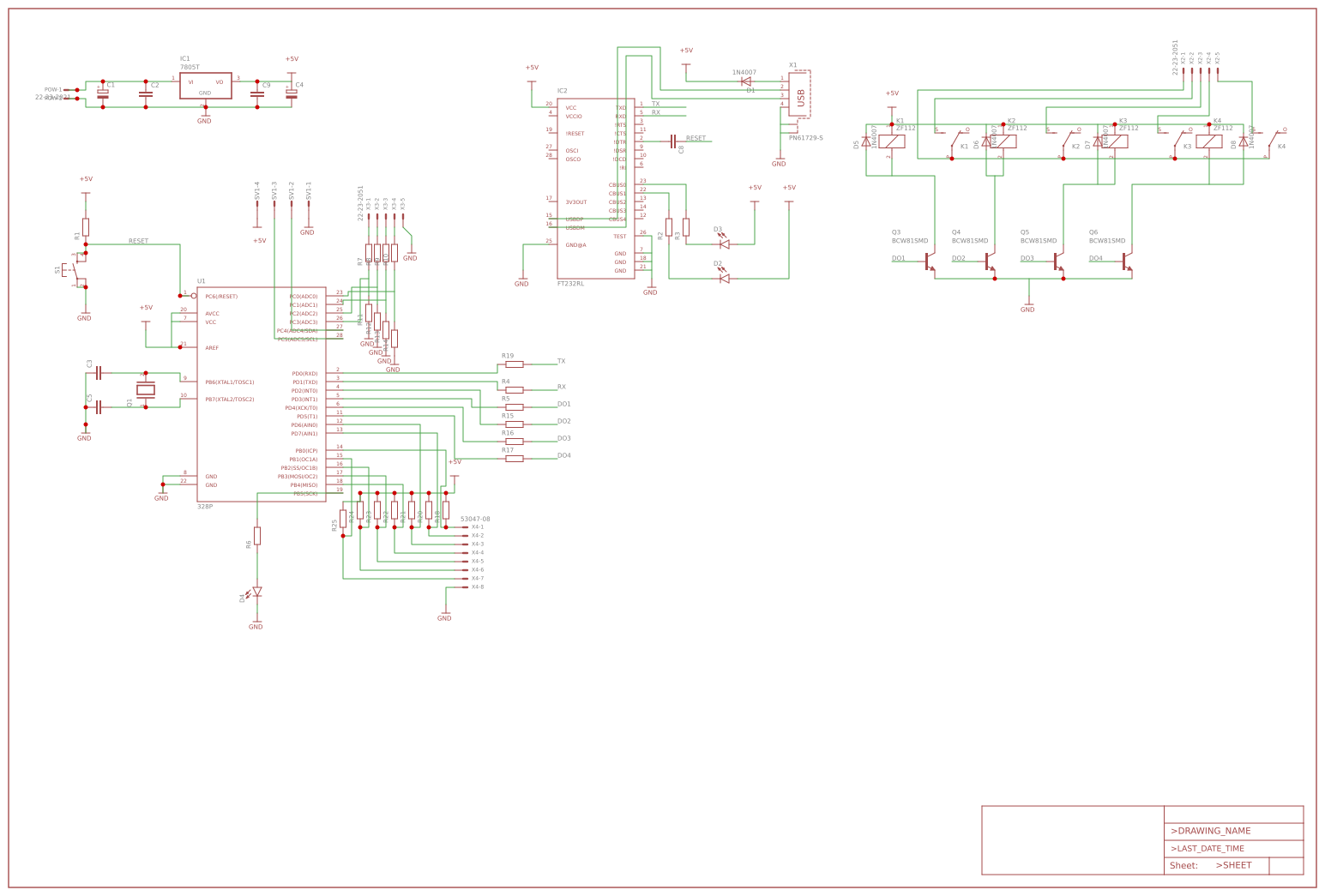

schematic diagram
（
1
/
）
PCB
（
1
/
）
The preview image was not generated, please save it again in the
editor.
| ID | Name | Designator | Quantity |
|---|---|---|---|
| 1 | 328P | U1 | 1 |
| 2 | 22-23-2021 | POW-1,POW-2 | 2 |
| 3 | 7805T | IC1 | 1 |
| 4 | MOMENTARY-SWITCH-SPST-2-SMD-5.2MM | S1 | 1 |
| 5 | XTAL/S | Q1 | 1 |
| 6 | PN61729-S | X1 | 1 |
| 7 | FT232RL | IC2 | 1 |
| 8 | LED-3MM-NO_SILK | D4,D2,D3 | 3 |
| 9 | 22-23-2051 | X3-1,X3-2,X3-3,X3-4,X3-5,X2-1,X2-2,X2-3,X2-4,X2-5 | 10 |
| 10 | L04P | SV1-1,SV1-2,SV1-3,SV1-4 | 4 |
| 11 | ZF112 | K11,K12,K21,K22,K31,K32,K41,K42 | 8 |
| 12 | A3L-LOC | FRAME1 | 1 |
| 13 | R-EU_R0805 | R19,R4,R5,R15,R16,R17,R11,R12,R13,R14,R7,R8,R9,R10,R2,R3,R1,R6,R18,R20,R21,R22,R23,R24,R25 | 25 |
| 14 | 1N4007 | D5,D7,D8,D6,D1 | 5 |
| 15 | BCW81SMD | Q3,Q4,Q5,Q6 | 4 |
| 16 | C-EUC0805 | C8,C9,C2,C3,C5 | 5 |
| 17 | CPOL-EU085CS-1AR | C1,C4 | 2 |
| 18 | 52745-0890 | X5-1,X5-2,X5-3,X5-4,X5-5,X5-6,X5-7,X5-8 | 8 |
