Std edition Computer Stereo Amp
No Profile
License: Public Domain
Description
Design Drawing

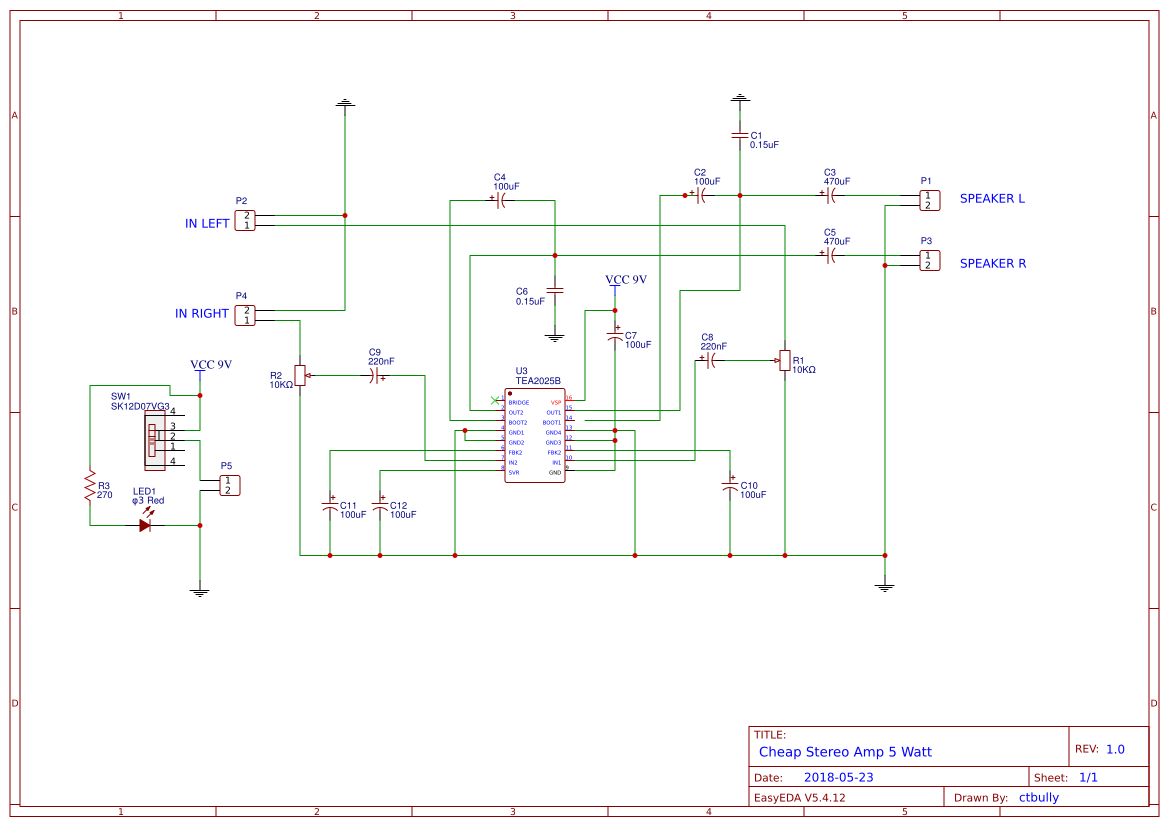

schematic diagram
（
1
/
）
PCB
（
1
/
）
Empty
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | 2.54-1*2PFemale | P4,P5,P1,P2,P3 | HDR-1X2/2.54 | 5 |
| 2 | 220nF | C9,C8 | CAP-D4.0XF1.5 | 2 |
| 3 | 100uF | C2,C11,C4,C12,C10,C7 | CAP-8*5 | 6 |
| 4 | 0.15uF | C1,C6 | CAP-3.5*8*7.2 | 2 |
| 5 | 10KΩ | R1,R2 | RES-ADJ_3296W | 2 |
| 6 | 470uF | C5,C3 | CAP-D8.0XF3.5 | 2 |
| 7 | SK12D07VG3 | SW1 | SWITCH-SK12D07VG3 | 1 |
| 8 | TEA2025B | U3 | DIP16 | 1 |
| 9 | φ3 Red | LED1 | LED3MM | 1 |
| 10 | 270 | R3 | AXIAL-0.3 | 1 |
