STD Shift Register Mosfet Driver
No Profile
License: GPL 3.0
Description
Drives 16 mosfets with 74hc595 registers. Includes diodes to allow for inductive loads such as solenoids and motors. All parts can be placed using JLC SMT. A suitable 3.3V mosfet could be chosen with the same package as well, if you want to drive this with 3.3V on the 5V rail.
I sell assembled versions of these boards. Go to [my website](http://www.calebmarting.com/shiftdriver) to get purchasing details. I am also making a video describing how to use it.
Design Drawing

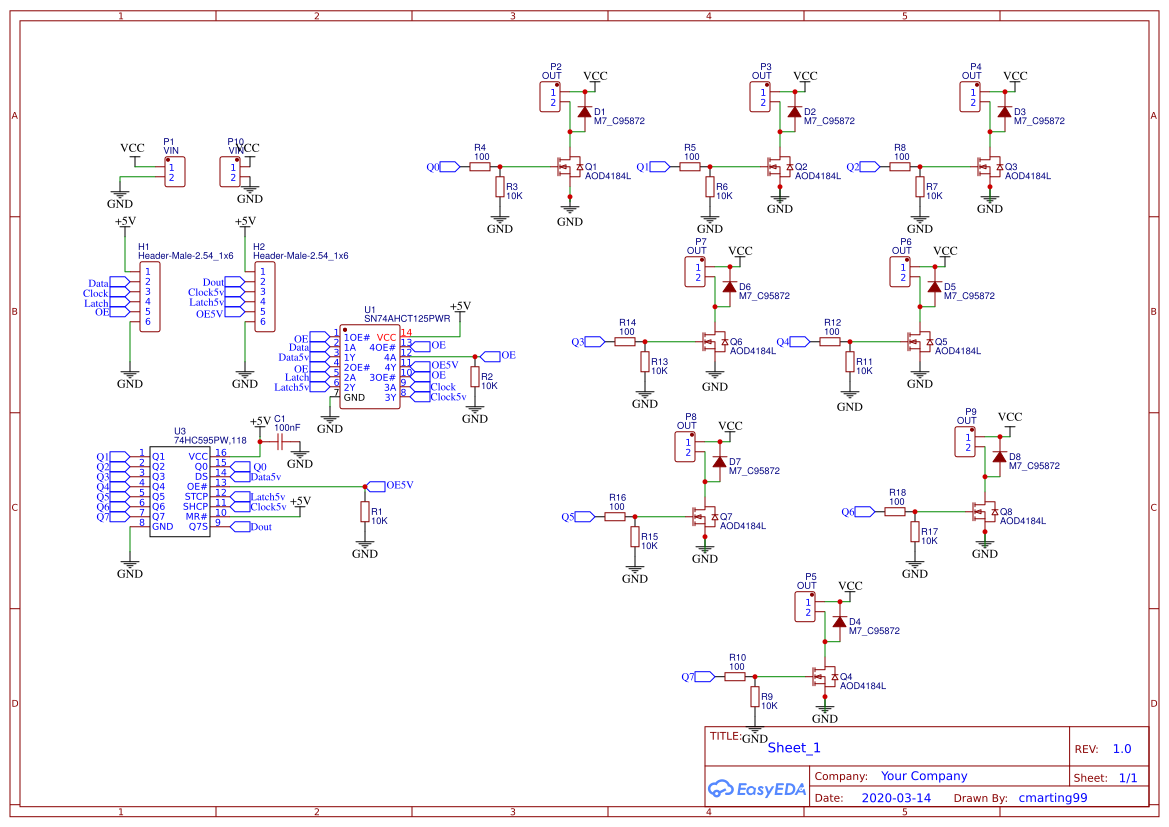

schematic diagram
（
1
/
）
PCB
（
1
/
）
-
PCB_2020-03-14 23:00:09
Open in Editor -
PCB_2020-08-02_16-26-30
Open in Editor -
PCB_2020-08-02_16-26-30 copy
Open in Editor
Empty
| ID | Name | Designator | Footprint | Quantity | BOM_Supplier | BOM_Manufacturer | BOM_Manufacturer Part | BOM_Supplier Part |
|---|---|---|---|---|---|---|---|---|
| 1 | 74HC595PW,118 | U3 | TSSOP-16_L5.0-W4.4-P0.65-LS6.4-BL | 1 | LCSC | Nexperia | 74HC595PW,118 | C5948 |
| 2 | 10K | R3,R6,R7,R9,R11,R13,R15,R17 | R0402 | 8 | LCSC | UniOhm | 0402WGF1002TCE | C25744 |
| 3 | Header-Male-2.54_1x6 | H1,H2 | HDR-TH_6P-P2.54-V | 2 | LCSC | BOOMELE | Header-Male-2.54_1x6 | C37208 |
| 4 | 100nF | C1 | C0603 | 1 | LCSC | YAGEO | CC0603KRX7R9BB104 | C14663 |
| 5 | 10K | R2,R1 | R0603 | 2 | LCSC | UniOhm | 0603WAF1002T5E | C25804 |
| 6 | AOD4184L | Q1,Q2,Q3,Q4,Q5,Q6,Q7,Q8 | TO-252-2_L6.6-W6.1-P4.57-LS9.9-BR-CW | 8 | LCSC | Alpha & Omega Semicon | AOD4184L | C125866 |
| 7 | VIN | P1,P10 | WJ2EDGVC-5.08-2P | 2 | LCSC | ReliaPro | WJ2EDGVC-5.08-2P | C8445 |
| 8 | OUT | P2,P3,P4,P5,P6,P7,P8,P9 | WJ2EDGVC-5.08-2P | 8 | LCSC | ReliaPro | WJ2EDGVC-5.08-2P | C8445 |
| 9 | SN74AHCT125PWR | U1 | TSSOP-14_L5.0-W4.4-P0.65-LS6.4-BL | 1 | LCSC | TI | SN74AHCT125PWR | C36365 |
| 10 | M7_C95872 | D1,D2,D3,D4,D5,D6,D7,D8 | DO-214AC_L4.3-W2.7-LS5.3-RD | 8 | LCSC | MDD | M7 | C95872 |
| 11 | 100 | R4,R5,R8,R10,R12,R14,R16,R18 | R0402 | 8 | LCSC | UniOhm | 0402WGF1000TCE | C25076 |
