STD Placa Controle Semáforo

License:

Mode: Editors' pick

  • 287
  • 0
  • 0
Update time: 2022-03-04 21:27:37
Creation time: 2021-08-15 04:00:25
Description
.
Design Drawing

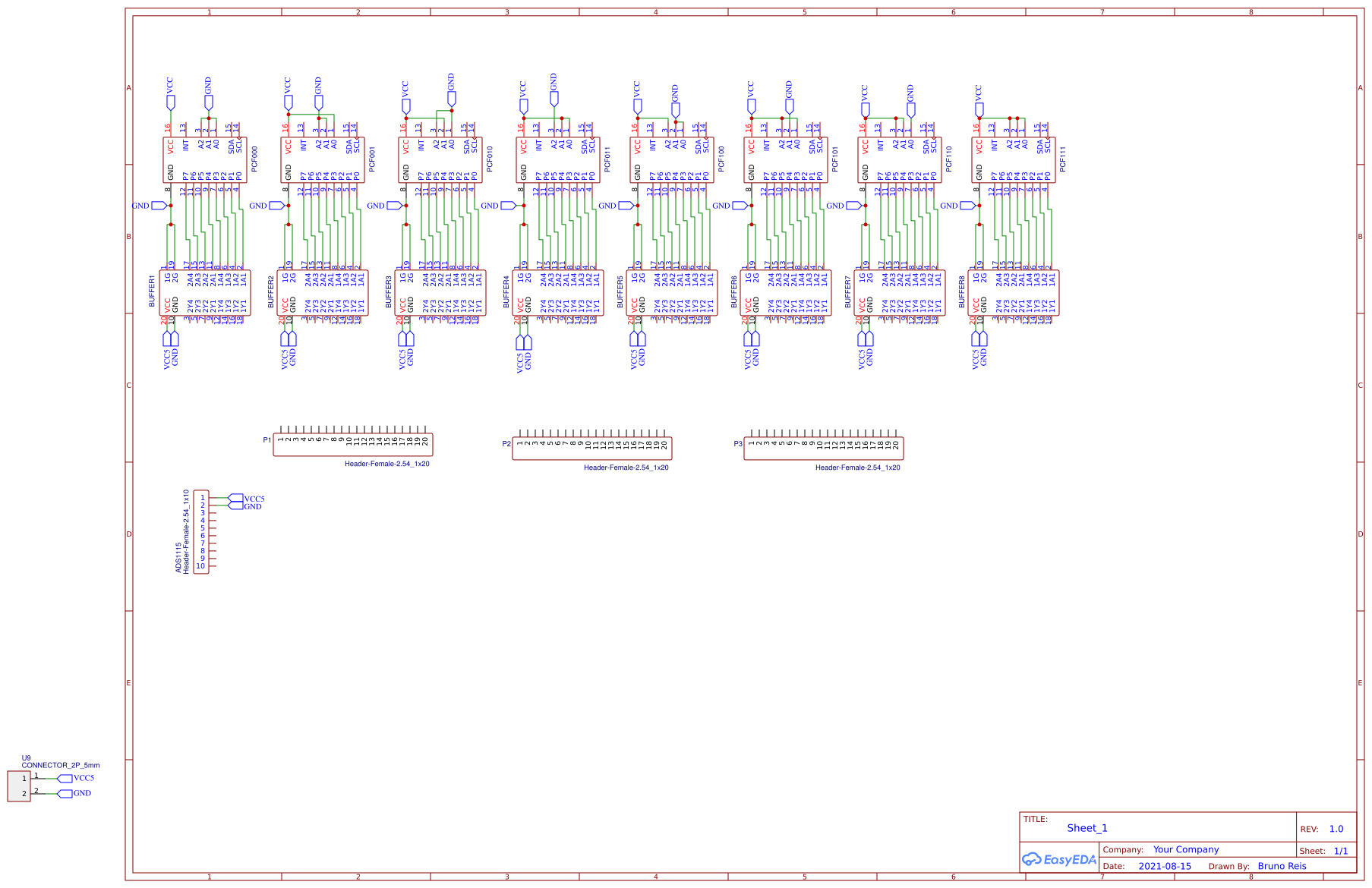

schematic diagram
1 /
PCB
1 /
The preview image was not generated, please save it again in the editor.
ID Name Designator Footprint Quantity
1 Header-Female-2.54_1x10 1-ADS1115,2-ADS1115,J2,J3,J4,J5,J6,J7 HDR-TH_10P-P2.54-V-F 8
2 74HC244 BUFFER1,BUFFER2,BUFFER3,BUFFER4,BUFFER5,BUFFER6,BUFFER7,BUFFER8,BUFFER10,BUFFER11 DIP20 10
3 HDR-F-2.54_1x6 H1,H2,H3 HDR-F-2.54_1X6 3
4 HDR-F-2.54_1x4 H4 HDR-F-2.54_1X4 1
5 HDR-F-2.54_1x2 H5 HDR-F-2.54_1X2 1
6 HDR-M-2.54_2x3 J1 HDR-M-2.54_2X3 1
7 VER LED1 LED 5MM 1
8 Header-Female-2.54_1x3 P1,P2,P3,P5,P6 HDR-TH_3P-P2.54-V-F 5
9 Header-Female-2.54_1x8 P4 HDR-TH_8P-P2.54-V-F-1 1
10 PCF8574AN PCF000,PCF001,PCF010,PCF011,PCF100,PCF101,PCF110,PCF111 DIP16 8
11 1k PULL-UP1,PULL-UP2,R1,R2,R3,R4,R5,R6,R7,R8,R9,R10,R11,R12,R13,R14,R15,R16,R17,R18,R19,R20,R21,R22,R23,R24,R25,R26,R27,R28,R29,R30,R31,R32,R33,R34,R35,R36,R37,R38,R39,R40,R41,R42,R43,R44,R45,R46,R47,R48,R49,R50,R51,R52,R53,R54,RLED R_AXIAL-0.3 57
12 CONNECTOR_2P_5mm U9 CONNECTOR_2P_5MM_2 1
13 5MM CONNECTOR VCC5 5MM CONNECTOR 1
