Layout Assessment

1 month ago

Profile:*

Open source license: null

  • 154
  • 0
  • 0

Description

Simply Layout Engineer Assessment

Documents

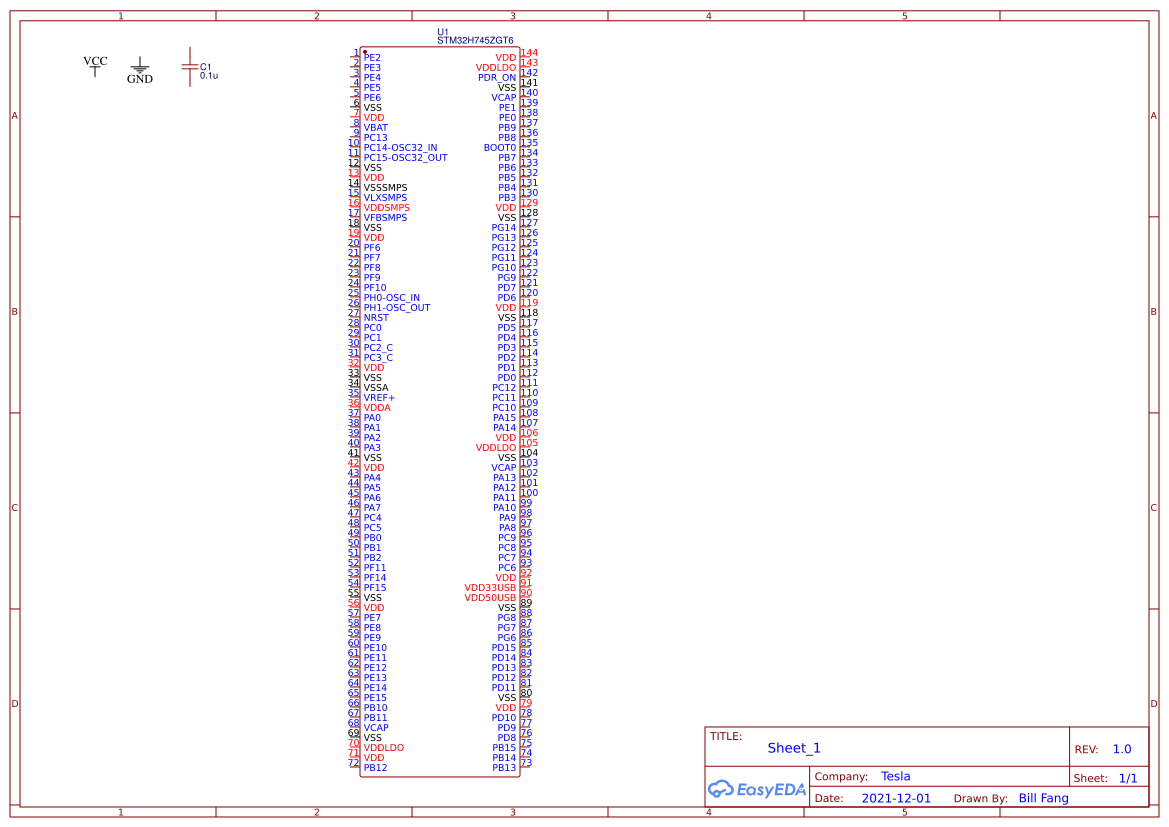

Decoupling Cap

Open in editor

Input Protection

Open in editor

High Voltage Placement

Open in editor

High Current

Open in editor

Polygon and Vias

Open in editor

BOM

ID Name Designator Footprint Quantity
1 2.2u C1,C2 C0603 2
2 12p C3,C4 C0603 2
3 10n C8 C0603 1
4 10u C9 C0603 1
5 22U C10 C0603 1
6 USBLC6-4SC6Y D2 SOT-23-6_L2.9-W1.6-P0.95-LS2.8-BL 1
7 B5819W_C8598 D4,D5 SOD-123_L2.7-W1.6-LS3.7-RD-1 2
8 HDR-M-2.54_1x1 J1,J2 HDR-M-2.54_1X1 2
9 FTSH-105-01-F-DV J3 FTSH-105-01-L-DV-K 1
10 39n L1 L0603 1
11 600Ω @600MHz L4 L0805 1
12 4.7U L5 L0603 1
13 2N7002 Q2 SOT-23_L2.9-W1.3-P0.95-LS2.4-BR 1
14 NVTFS4C05NTAG Q3,Q6 WDFN-8_L3.3-W3.3-P0.65-BL 2
15 NVMFS3D0P04M8L Q4,Q5 WDFN-8_L3.3-W3.3-P0.65-BL 2
16 AO3401 Q7 SOT-23-3_L2.9-W1.3-P1.90-LS2.4-BR 1
17 10k R1 R0603 1
18 47 R2 R0603 1
19 180 R11 R0603 1
20 1k R12,R13 R0603 2
21 100k R14 R0603 1
22 62k R15 R0603 1
23 16.2K R16 R0603 1
24 49.9K R17 R0603 1
25 SK-12D02-VG5 SW1 SW-TH_SK-12D02VG3 1
26 STM32F405RGT6 U1 LQFP-64_L10.0-W10.0-P0.50-LS12.0-BL 1
27 AQV258H5AZ U3 SMD-6_5P-L8.8-W6.4-P2.54-LS9.6-TR 1
28 XT90 U4 XT90 1
29 [JLCSMT]-MP2359DJ-LF-Z U5 TSOT-23-6_L2.9-W1.6-P0.95-LS2.8-BL 1
30 GT-USB-7070A USB1 USB-C-SMD_GT-USB-7070A 1
31 16MHz X1 OSC-SMD_4P-L3.2-W2.5-BL 1
