STD Boost Converter Raspberry Pi 4
No Profile
License: CC-BY-NC 3.0
Description
LiPo battery to 5V 3.5 Amp DC for use in Raspberry Pi 4 with peripherals such as screen and arduino powered controller. Battery charge and protect circuitis integrated as well on a small SMT PCB
Design Drawing

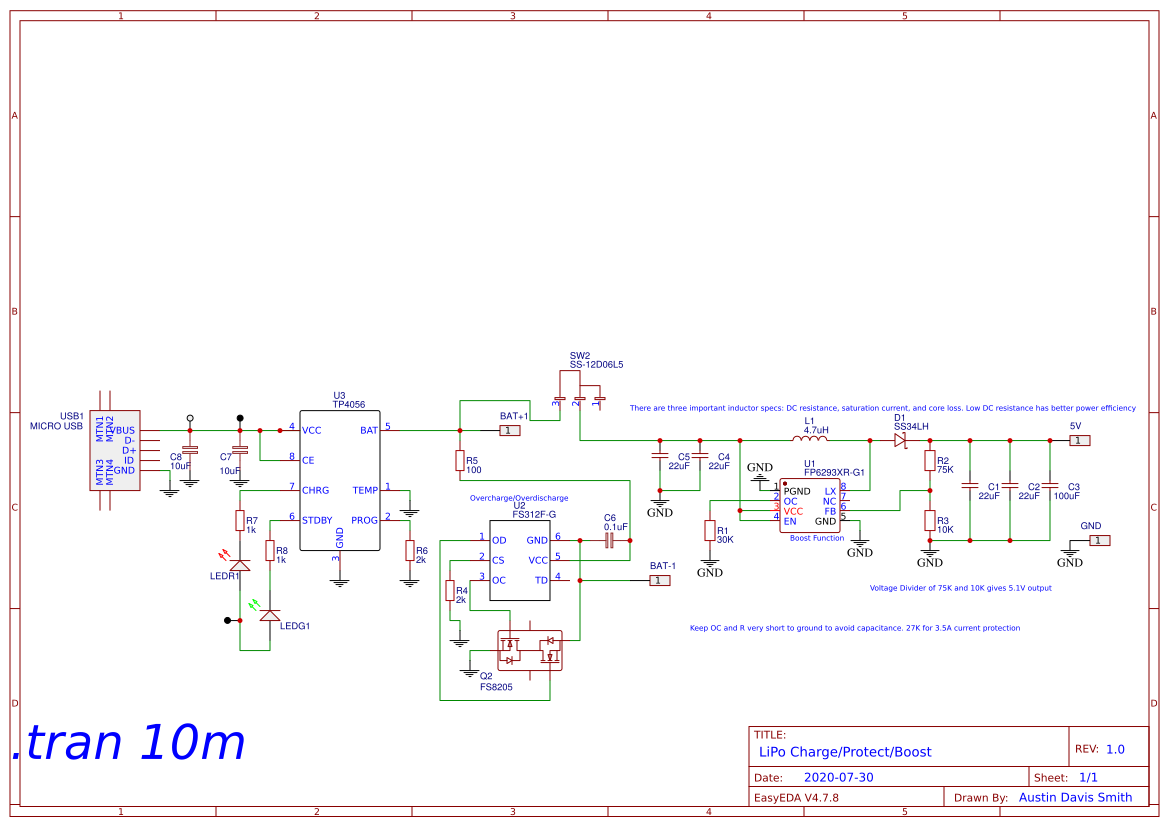

schematic diagram
（
1
/
）
PCB
（
1
/
）
-
PCB_2020-08-02_11-06-09
Open in Editor -
PCB_2020-08-02_20-58-57
Open in Editor -
PCB_2020-08-03_18-29-09
Open in Editor -
-
V2-2
Open in Editor
Empty
| ID | Name | Designator | Footprint | Quantity | BOM_Supplier | BOM_Manufacturer | BOM_Manufacturer Part | BOM_Supplier Part |
|---|---|---|---|---|---|---|---|---|
| 1 | 4.7uH | L1 | 7*7*4 | 1 | LCSC | ShunXiang Connaught Elec | SMNR6028-4R7MT | C266428 |
| 2 | 22uF | C1,C2,C4,C5 | 1812 MODIFIED | 4 | LCSC | SAMSUNG | CL31A226KOHNNNE | C90146 |
| 3 | 100uF | C3 | 1812 MODIFIED | 1 | LCSC | TAIYO YUDEN | JMK316BJ107ML-T | C87164 |
| 4 | 5V | 5V,GND | HDR-1X1/2.54 | 2 | LCSC | LCSC | Header-Male-2.54_1x1 | C81276 |
| 5 | 2k | R4,R6 | 0603 | 2 | LCSC | UniOhm | TC0325F2001T5E | C133627 |
| 6 | BAT- | BAT-1 | HDR-1X1/2.54 | 1 | LCSC | LCSC | Header-Male-2.54_1x1 | C81276 |
| 7 | 0.1uF | C6 | 0603 | 1 | LCSC | SAMSUNG | CL05B104KO5NNNC | C1525 |
| 8 | BAT+ | BAT+1 | HDR-1X1/2.54 | 1 | LCSC | LCSC | Header-Male-2.54_1x1 | C81276 |
| 9 | FS8205 | Q2 | SOT-23-6 | 1 | LCSC | FORTUNE | FS8205 | C32254 |
| 10 | FS312F-G | U2 | SOT-23-6 | 1 | LCSC | FORTUNE | FS312F-G | C82736 |
| 11 | 100 | R5 | 0603 | 1 | LCSC | Viking Tech | ARG05FTC1000 | C217766 |
| 12 | 1k | R7,R8 | 0603 | 2 | LCSC | Viking Tech | ARG05FTC1001 | C218388 |
| 13 | 19-217/GHC-YR1S2/3T | LEDG1 | LED-0603 | 1 | LCSC | EVERLIGHT | 19-217/GHC-YR1S2/3T | C72043 |
| 14 | Red(0603) | LEDR1 | LED-0603 | 1 | LCSC | EVERLIGHT | 17-21SURC/S530-A3/TR8 | C72037 |
| 15 | 10uF | C7,C8 | C0805 | 2 | LCSC | WTC | 0805X106K100 | C105505 |
| 16 | TP4056 | U3 | SOP-8_EP_150MIL | 1 | LCSC | TPOWER | TP4056 | C382139 |
| 17 | MICRO USB | USB1 | MICRO-USB-SMD_5P-P0.65-H-F-C40943 | 1 | LCSC | ValuePro | micro 5PFour-legged board7.2There is a column card point0.4m | C40943 |
| 18 | SS34LH | D1 | SMA_L4.4-W2.8-LS5.4-RD | 1 | LCSC | LGE | SS34LH | C432141 |
| 19 | FP6293XR-G1 | U1 | SOP-8_L4.9-W3.9-P1.27-LS6.0-BL-EP | 1 | LCSC | Feeling Technology | FP6293XR-G1 | C83576 |
| 20 | SS-12D06L5 | SW2 | SW-TH_3P-P4.70_L11.1-W12.7 | 1 | LCSC | XKB Enterprise | SS-12D06L5 | C319015 |
| 21 | 30K | R1 | R0603 | 1 | LCSC | Viking Tech | AR05DTCW3002 | C319660 |
| 22 | 75K | R2 | R0603 | 1 | LCSC | UNI-ROYAL(Uniroyal Elec) | 0603WAF7502T5E | C23242 |
| 23 | 10K | R3 | R0603 | 1 | LCSC | Viking Tech | ARG05FTC1002 | C217770 |
