Description
This project includes demonstrations of EasyEDA schematic symbols, each of which have spice models - some of which are unique to EasyEDA - associated with them for the following devices:
**Bidirectional Optoisolator**
PS2505-1
PS2505-4
**TLE2426 Virtual Ground Device**
To view any of these spice models, search for the symbol using SHIFT+F, place the symbol in a schematic, save it and then do:
>**Super Menu > Miscellaneous > Netlist for Document > spice...**
To run these simulations, click on the little green pencil icon in the upper right of the view window then:
Ctrl+R
Save when prompted then:
Ctrl+R
Design Drawing
schematic diagram
（
1
/
）
-
AC sweep
Open in Editor -
Capacitance vs. DC bias test jigs
Open in Editor -
why unknown subckt error
Open in Editor -

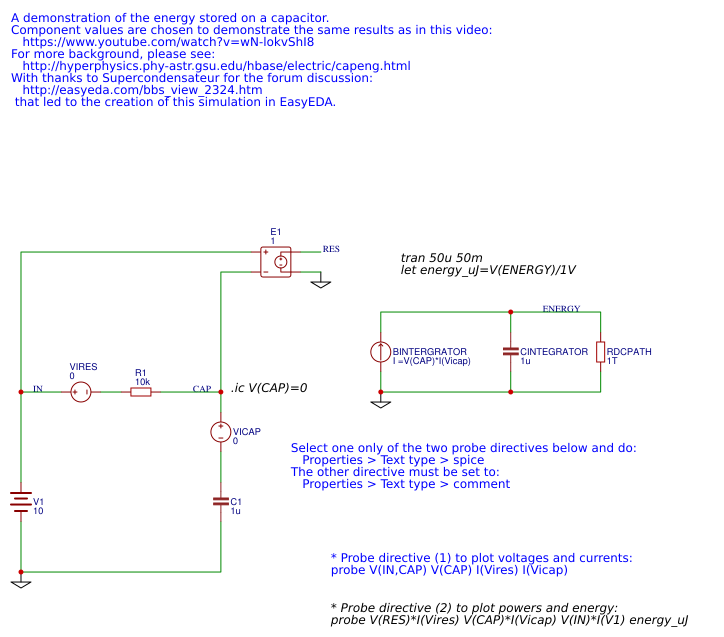

An example DPDT CO switch symbol
Open in Editor -
221102014 missing subckts
Open in Editor -
BJT Curve Tracer
Open in Editor -
Razavi Switched Capacitor Integrator
Open in Editor -
Opamp Colpitts Oscillator Startup 01
Open in Editor -
FM Modulator
Open in Editor -
tilde test
Open in Editor -
TLE2426 'Rail Splitter' demonstration jig
Open in Editor -
NMOS curve tracer
Open in Editor -
PS2505-1 test jig
Open in Editor -
PS2505-4 test jig
Open in Editor -
Energy on a capacitor
Open in Editor -
Comparing Schottky models
Open in Editor -
LM317 and Dual TIP36C fixed
Open in Editor -
How to build a spice model for a dual opamp
Open in Editor -
timer circuit fixed
Open in Editor -
PNP bjt curve tracer
Open in Editor -
TLV9302_DC test jig
Open in Editor -
Why BJTs need a base resistor
Open in Editor
