STD LiPoChargeProtectBoost copy copy
No Profile
Project source: Cloned from LiPoChargeProtectBoost copy
Description
Design Drawing

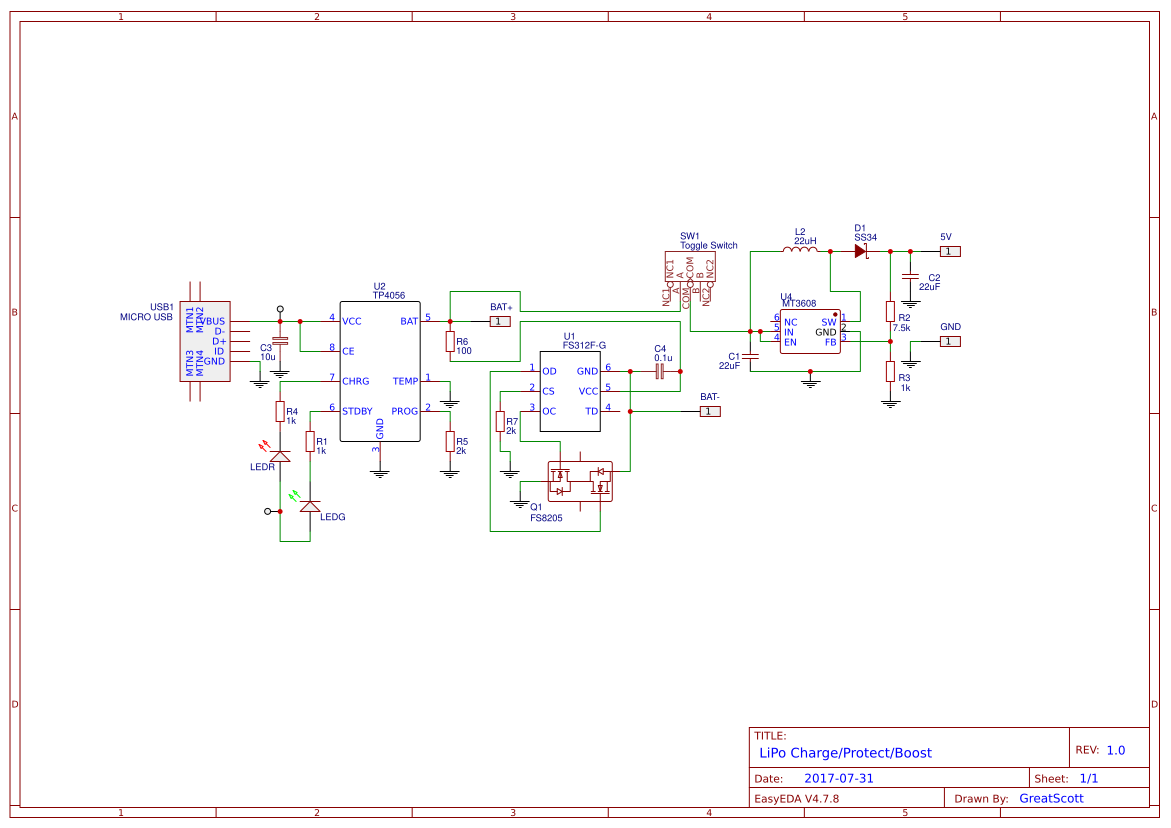

schematic diagram
（
1
/
）
PCB
（
1
/
）
Empty
| ID | Name | Designator | Footprint | Quantity | Mounted |
|---|---|---|---|---|---|
| 1 | FS312F-G | U1 | SOT-23-6 | 1 | Yes |
| 2 | MICRO USB | USB1 | MICRO-USB-1 | 1 | Yes |
| 3 | Toggle Switch | SW1 | SW5-2.0-8.8X4.4X4.7MM-90D | 1 | Yes |
| 4 | TP4056 | U2 | SOP-8_EP_150MIL | 1 | Yes |
| 5 | 1k | R1,R3,R4 | 0603 | 3 | Yes |
| 6 | 22uF | C1,C2 | 1812 | 2 | Yes |
| 7 | 10u | C3 | 0603 | 1 | Yes |
| 8 | Red(0603) | LEDR | LED-0603 | 1 | Yes |
| 9 | 19-217/GHC-YR1S2/3T | LEDG | LED-0603 | 1 | Yes |
| 10 | 7.5k | R2 | 0603 | 1 | Yes |
| 11 | 5V | 5V | HDR-1X1/2.54 | 1 | Yes |
| 12 | FS8205 | Q1 | SOT-23-6 | 1 | Yes |
| 13 | 2k | R5,R7 | 0603 | 2 | Yes |
| 14 | BAT+ | BAT+ | HDR-1X1/2.54 | 1 | Yes |
| 15 | 100 | R6 | 0603 | 1 | Yes |
| 16 | 0.1u | C4 | 0603 | 1 | Yes |
| 17 | BAT- | BAT- | HDR-1X1/2.54 | 1 | Yes |
| 18 | GND | GND | HDR-1X1/2.54 | 1 | Yes |
| 19 | MT3608 | U4 | SOT-23-6 | 1 | Yes |
| 20 | SS34 | D1 | SMA(DO-214AC) | 1 | Yes |
| 21 | 22uH | L2 | 7*7*4 | 1 | Yes |
