STD TRX_POLEVIK_6S_SI5351

  • 1.1k
  • 0
  • 2

No Profile

License: CC-BY 3.0

Creation time： 2020-08-06 13:43:38
Update time： 2020-11-07 12:04:53
Description
Трансивер "Полевик", авторства R2DNN. Обсуждение конструкции можно прочитать на форуме qrz.ru. Основная схема трансивера тут - http://qrp.ru/forum/9-%D0%A1%D0%B0%D0%BC%D0%BE%D0%B4%D0%B5%D0%BB%D1%8C%D0%BD%D0%B0%D1%8F-%D1%82%D0%B5%D1%85%D0%BD%D0%B8%D0%BA%D0%B0/13211-TRX-%D0%9F%D0%BE%D0%BB%D0%B5%D0%B2%D0%B8%D0%BA?start=10#50390 Сделана попытка заменить УНЧ на LM386 и добавлен синтезатор на Arduino Nano + SI5351. Это "заготовка" для дальнейшей доработки.
Design Drawing
schematic diagram
（ 1 / ）

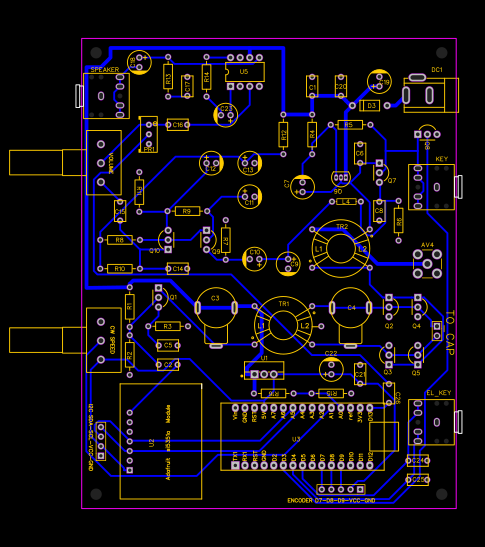

PCB
（ 1 / ）
Empty
BOM
BOM download Purchase Parts
ID Name Designator Footprint Quantity
1 5mH L4 AXIAL-03 1
2 PHONE SPEAKER,KEY,EL_KEY AUDIO-TH_PJ-307G5 3
3 BC547B Q1,Q9,Q10 TO-92-3_L4.9-W3.7-P2.54-L 3
4 2_COIL TR2 2_COILS_ON_FERRITE_RING 1
5 BS170 Q2,Q3,Q4,Q5,Q7,Q8 TO-92-3_L4.8-W3.7-P2.54-L 6
6 1N4001 D3 DO-41_BD2.4-L4.7-P8.70-D0.9-RD 1
7 LM7805 U1 TO-220F-3_L10.2-W4.7-P2.54-L 1
8 2uF C7 CAP-TH_BD6.3-P2.50-D1.0-FD 1
9 10uF C9,C10,C11,C12,C18,C23 CAP-TH_BD6.3-P2.50-D1.0-FD 6
10 100uF C13 CAP-TH_BD6.3-P2.50-D1.0-FD 1
11 470uF C19,C22 CAP-TH_BD6.3-P2.50-D1.0-FD 2
12 SMA connector AV4 CON-SMA-L 1
13 5-30 C3,C4 КПК-МП 2
14 ArduinoNano U3 ARDUINO NANO VINCENT 1
15 5-12V DC1 DC-IN-TH_DC005 1
16 100nf C1,C2,C5,C6,C8,C16,C24,C25,C26 CAP-HV-5.0*3.0 9
17 10nf C14,C20,C21 CAP-HV-5.0*3.0 3
18 1uf C15 CAP-HV-5.0*3.0 1
19 47nf C17 CAP-HV-5.0*3.0 1
20 BAND-C J1 HDR-M-2.54_1X2 1
21 ENCODER J6 HDR-M-2.54_1X5 1
22 SI5351_DDS_MODULE U2 SI5351 PCB LIB 1
23 47K R1 RES-TH_BD2.2-L6.5-P10.50-D0.6 1
24 4.7K R2 RES-TH_BD2.2-L6.5-P10.50-D0.6 1
25 100 R3,R7 RES-TH_BD2.2-L6.5-P10.50-D0.6 2
26 1.5K R4 RES-TH_BD2.2-L6.5-P10.50-D0.6 1
27 470 R5,R6,R12 RES-TH_BD2.2-L6.5-P10.50-D0.6 3
28 2K R8,R10,R11,R15 RES-TH_BD2.2-L6.5-P10.50-D0.6 4
29 200K R9 RES-TH_BD2.2-L6.5-P10.50-D0.6 1
30 10 R14,R13 RES-TH_BD2.2-L6.5-P10.50-D0.6 2
31 5.7K R16 RES-TH_BD2.2-L6.5-P10.50-D0.6 1
32 10K PR1 RES-ADJ_3296W 1
33 T50-6 TR1 TRANS_ON_FERRITE_RING 1
34 LM386N U5 DIP-8_L9.7-W6.4-P2.54-LS7.6-BL 1
35 2SA684L Q6 TO-92-3_L5.1-W4.1-P1.27-L 1
36 10K W2,W1 WH148-1A-2B 2
37 I2C-OLED J7 HDR-M-2.54_1X4 1
