OngoingCANbus Splitter V2.1 copy
STDCANbus Splitter V2.1 copy
616
0
0
0
Mode:Full
License
：Cloned fromCANbus Splitter V2.1
Creation time:2019-12-23 11:31:34Update time:2020-01-28 19:29:03
Description
Design Drawing

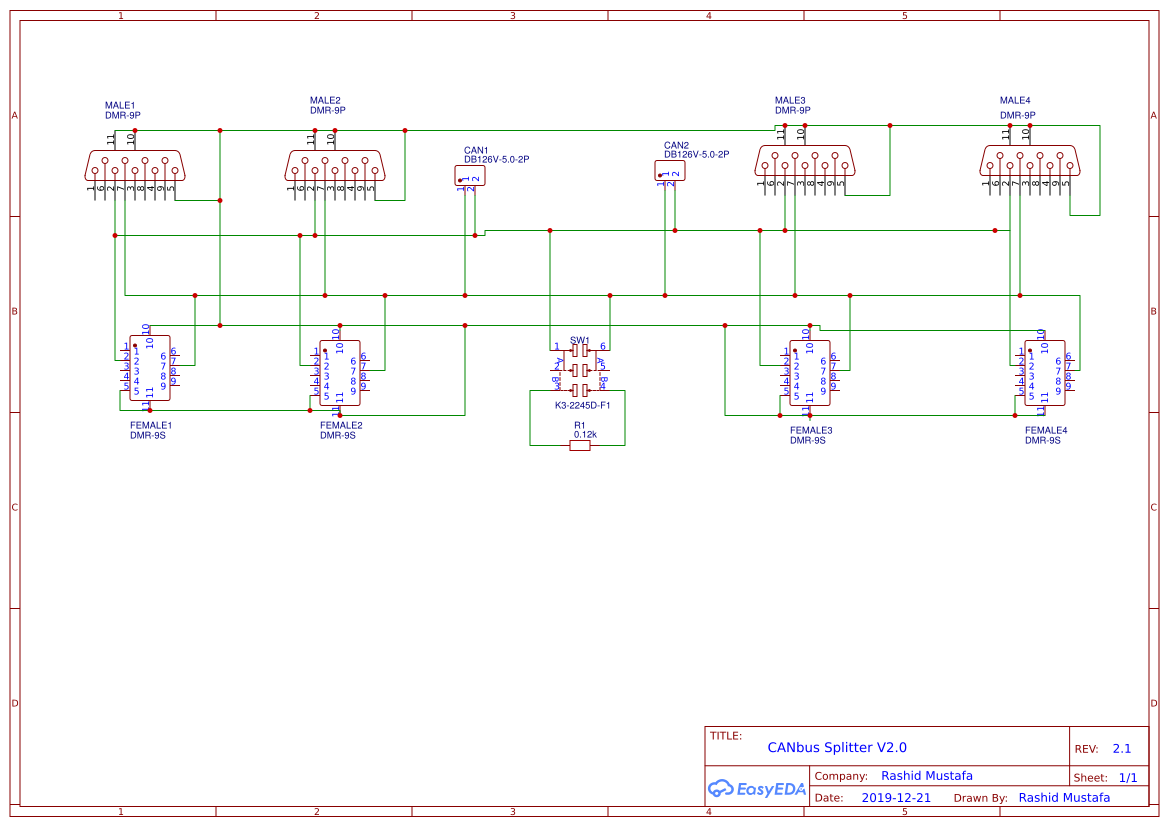

schematic diagram
Preview
CANbus Splitter V2.1 copyOpen in Editor
PCB
Preview
CANbus Splitter V2.1 PCB copyOpen in Editor
BOM
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | DMR-9P | MALE1,MALE3,MALE4,MALE2 | DMR-9P | 4 |
| 2 | 0.12k | R1 | AXIAL-0.4 | 1 |
| 3 | DMR-9S | FEMALE2,FEMALE1,FEMALE4,FEMALE3 | DSUB-TH_DMR-9S | 4 |
| 4 | DB126V-5.0-2P | CAN1,CAN2 | CONN-TH_2PIN-V-PITCH5.00-L_JL126-50002G01 | 2 |
| 5 | K3-2245D-F1 | SW1 | SW-TH_K3-2245D-F1 | 1 |
