STD Drive board 2021
Profile：SJSU Robotic Drive 2021
Description
Design Drawing
schematic diagram
（
1
/
）

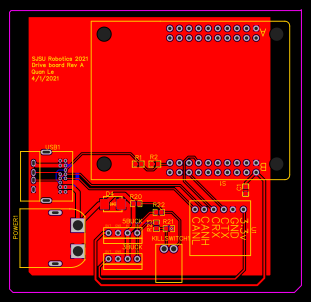

PCB
（
1
/
）
Empty
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | Terminal Block 2.54mm 2 pin | KILLSWITCH1 | TERMINAL BLOCK 2.54MM 2 PIN | 1 |
| 2 | Header-Male-2.54_1x3 | H2 | HDR-TH_3P-P2.54-V | 1 |
| 3 | XT60PW-M | POWER1 | XT60PW-M PCBLIB | 1 |
| 4 | P6SMB27CA | D4 | SMB_L4.6-W3.6-LS5.3-BI | 1 |
| 5 | Header-Male-2.54_1x4 | H1 | HDR-TH_4P-P2.54-V | 1 |
| 6 | STM32 Black Board Half Shield | S1 | STM32_BLACK_BOARD_WITHBOARD COPY | 1 |
| 7 | 10K | R21,R20 | 0603 | 2 |
| 8 | 0 | R23,R22 | 0603 | 2 |
| 9 | 5.6K | R1,R2,R3 | R0603 | 3 |
| 10 | Buck Converter | 5BUCK | BUCK CONVERTER PATTERN | 1 |
| 11 | SN65HVD230 | U1 | SN65HVD230 | 1 |
| 12 | TYPE-C-31-M-10 | LEG_A,LEG_B,LEG_C | USBC-TH_TYPE-C-31-M-10 | 3 |
