STD converter to v+=15v V-=15V
No Profile
Description
Design Drawing
schematic diagram
（
1
/
）
PCB
（
1
/
）
-

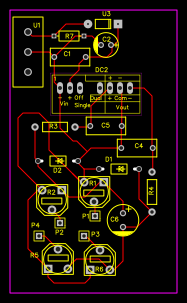

NEW_PCB
Open in Editor -
convcerter2.0
Open in Editor -
NEW_PCB second time 4 pot
Open in Editor -
4 pot transformator
Open in Editor
Empty
| ID | Name | Designator | Footprint | Quantity |
|---|---|---|---|---|
| 1 | 0.1UF | C1,C5,C4 | CAP-CBB-10.0*4.5 | 3 |
| 2 | 3 pin 5.08mm | U1 | 5.08 3X | 1 |
| 3 | 10K | R1,R2,R5,R6 | RM065-V1 | 4 |
| 4 | 1k | R3 | AXIAL-0.4 | 1 |
| 5 | 470 | R4 | AXIAL-0.4 | 1 |
| 6 | Header-Male-2.54_1x1 | P1,P2,P3,P4 | HDR-1X1/2.54 | 4 |
| 7 | VARISTOR-7,5 | R7 | R-7,5 | 1 |
| 8 | TMR 3-2423WI | DC2 | DCDC-CONV_TRACO_TMR_XXXX | 1 |
| 9 | 1N4007 | U3 | 1N4007 | 1 |
| 10 | ZENER-DIODEDO41Z10 | D1,D2 | DO41Z10 | 2 |
| 11 | 10uF | C2 | CAP-D6.3XF2.5 | 1 |
| 12 | 10uF | C6 | CAP-D8.0XF3.5 | 1 |
