STD sd-rtc_demo

License:

Mode: Editors' pick

  • 473
  • 0
  • 0
Update time: 2020-11-26 10:30:26
Creation time: 2020-11-18 07:33:58
Description
sdfdsfsdfsdf
Design Drawing

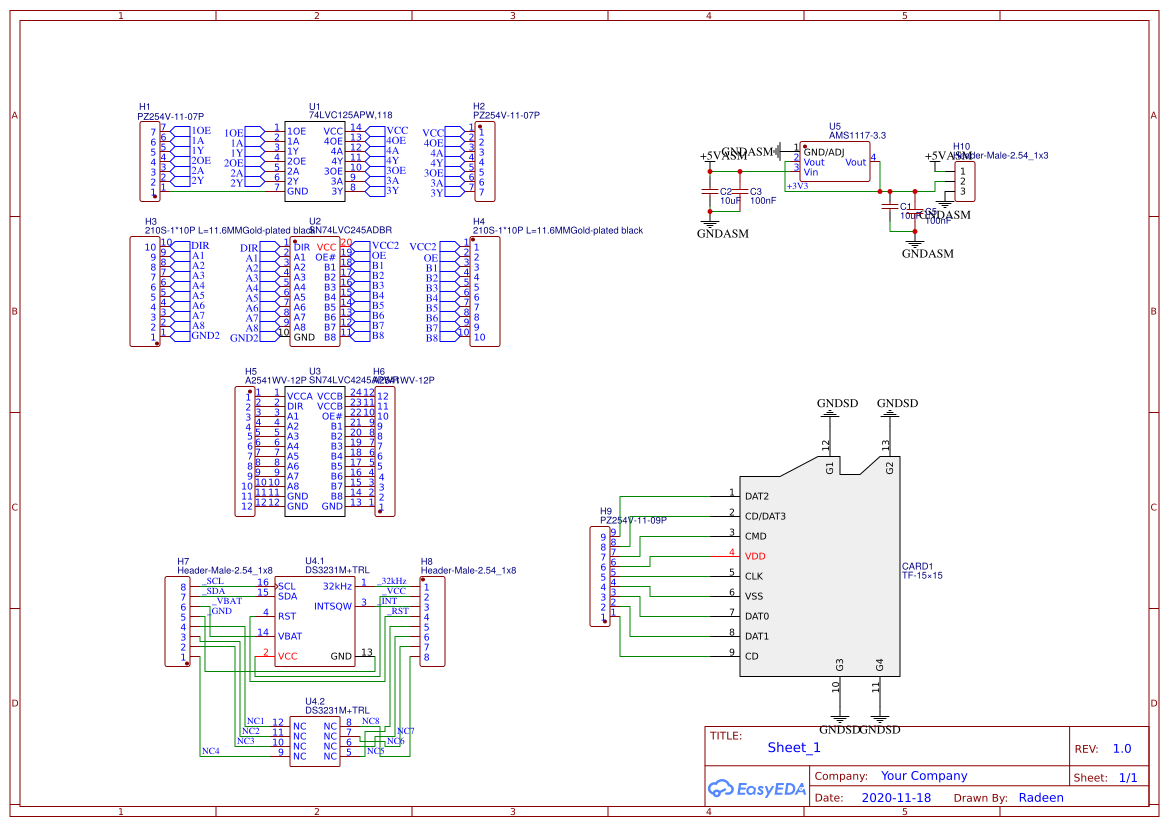

schematic diagram
1 /
PCB
1 /
The preview image was not generated, please save it again in the editor.
ID Name Designator Footprint Quantity BOM_Supplier BOM_Manufacturer Part BOM_Manufacturer BOM_Supplier Part
1 10uF C2,C1 C0805 2 LCSC CL21A106KAYNNNE SAMSUNG C15850
2 210S-1*10P L=11.6MMGold-plated black H3,H4 HDR-TH_10P-P2.54-V 2 LCSC 210S-1*10P L=11.6MMGold-plated black Ckmtw C124372
3 Header-Male-2.54_1x3 H10 HDR-TH_3P-P2.54-V 1 LCSC Header2.54mm 1*3P BOOMELE C49257
4 100nF C3,C5 C0603 2 LCSC CC0603KRX7R9BB104 YAGEO C14663
5 SN74LVC4245APWR U3 TSSOP-24_L7.8-W4.4-P0.65-LS6.4-BL 1 LCSC SN74LVC4245APWR TI C7859
6 AMS1117-3.3 U5 SOT-223-3_L6.5-W3.4-P2.30-LS7.0-BR 1 LCSC AMS1117-3.3 AMS C6186
7 PZ254V-11-09P H9 HDR-TH_9P-P2.54-V-M 1 LCSC PZ254V-11-09P XFCN C492408
8 SN74LVC245ADBR U2 SSOP-20_L7.5-W5.2-P0.65-LS8.0-BL 1 LCSC SN74LVC245ADBR Texas Instruments C393617
9 PZ254V-11-07P H1,H2 HDR-TH_7P-P2.54-V-M 2 LCSC PZ254V-11-07P XFCN C492406
10 A2541WV-12P H5,H6 HDR-TH_12P-P2.54-V_A2541HWV-12P 2 LCSC A2541WV-12P Changjiang Connectors C225487
11 Header-Male-2.54_1x8 H7,H8 HDR-TH_8P-P2.54-V-M 2 LCSC 210S-1*8P L=11.6MMGold-plated black Ckmtw C124381
12 74LVC125APW,118 U1 TSSOP-14_L5.0-W4.4-P0.65-LS6.4-BL 1 LCSC 74LVC125APW,118 Nexperia C6059
13 TF-15×15 CARD1 TF-SMD_TF-15×15 1 LCSC TF-15×15 SOFNG C111196
14 DS3231M+TRL U4 SOIC-16_L10.3-W7.5-P1.27-LS10.3-BL 1 LCSC DS3231M+TRL MAXIM C37663
