6Axis_PK - EasyEDA open source hardware lab

Std edition 6Axis_PK

Profile：CNC Controlller with ESP32

License: GPL 3.0

Published Time: 2022-05-16 00:10:08

Description

CNC Controlller with ESP32

Design Drawing

schematic diagram

（ 1 / ）

0_ESP32
Open in editor
1_Outputs_I2S
Open in editor
3_Inputs
Open in editor
2_Outputs_Others
Open in editor
5_Power
Open in editor
4_Inputs
Open in editor

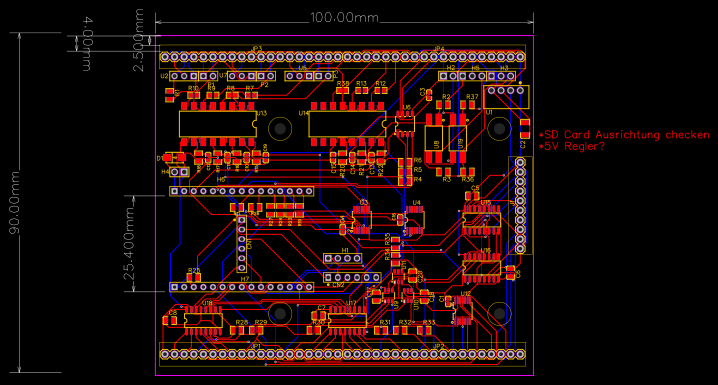

PCB

（ 1 / ）

PCB_2020-11-30_16-12-53
Open in editor
PCB_AutoRouter_2021-02-25
Open in editor
PCB_Backup_2021-02-25
Open in editor
PCB_AutoRouter_2021-02-26
Open in editor
PCB_Backup_2021-03-15
Open in editor
PCB_AutoRouter_2021-03-15
Open in editor
PCB_AutoRouter_2021-03-19
Open in editor
PCB_2021-03-21
Open in editor
PCB_AutoRouter_2021-03-22
Open in editor
PCB_2021-03-25_Manual
Open in editor
PCB_2021-01-25_Manual_Backup
Open in editor
PCB_2021-03-25_Manual_AUTO
Open in editor
PCB_2021-03-25_Manual_AUTO_2x
Open in editor
PCB_2021-04-02_Manual_AUTO
Open in editor
PCB_2021-04-02_Manual_AUTO backup
Open in editor
PCB_2021-04-05_Manual_AUTO
Open in editor
PCB_2021-04-06_Opto
Open in editor
PCB_2021-04-06_Opto_Backup
Open in editor
PCB_2021-04-08_4Layers
Open in editor
PCB_2021-04-11_4LayersV2_FINAL
Open in editor
PCB_2021-04-11_4LayersV2_Backup210421
Open in editor
PCB_2021-04-11_4LayersV2_Backup210422
Open in editor

Empty

BOM

BOM download Purchase Parts

ID	Name	Designator	Footprint	Quantity
1	HEADER 6X1	CN1,CN2	1*6P	2
2	B340A-13-F	D1	SMA_L4.4-W2.6-LS5.0-RD	1
3	USB-5V	H4	HDR-TH_2P-P2.54-V	1
4	Header-Female-2.54_1x15	H6,H7	HDR-TH_15P-P2.54-V	2
5	10K	R47,R48,R49,R50,R3,R4,R5,R6,R14,R36,R39,R40,R43,R44,R45,R46,R15,R16,R17,R18,R20,R21,R22,R52,R28,R29,R30,R31,R32,R33	R0805	30
6	100nF	C5,C6,C7,C8,C17,C18,C20	C0805	7
7	Stpr_COM	H8	HDR-TH_3P-P2.54-V	1
8	CON10X01	J1	1X10	1
9	M191X19	JP1,JP2,JP3,JP4	1X19	4
10	74HCT595D,118	U15,U16,U17,U18	SOIC-16_L9.9-W3.9-P1.27-LS6.0-BL	4
11	100nF	C1,C3,C9,C21,C4,C10,C11,C12,C13,C14,C15,C16,C19,C22	C0603	14
12	UART Header	H1	HDR-TH_4P-P2.54-V	1
13	LSR_GND	H2	HDR-TH_2P-P2.54-V	1
14	LSR_EN	H3	HDR-TH_3P-P2.54-V	1
15	LSR_PWM	H5	HDR-TH_3P-P2.54-V	1
16	10V	H14	HDR-TH_2P-P2.54-V	1
17	DAC	H16	HDR-TH_2P-P2.54-V	1
18	220	R2,R37,R11,R19,R23,R24,R25,R26,R27,R53,R1,R54	R0805	12
19	4.99K	R41	R0805	1
20	20K	R42	RES-ADJ-SMD_VG039NCH	1
21	MAX3485ESA+T	U6	SOIC-8_L4.9-W3.9-P1.27-LS6.0-BL	1
22	EL817S1(C)(TU)-F	U8,U19	OPTO-SMD-4_L4.6-W6.5-P2.54-LS10.3-TL	2
23	74HCT125PW,118	U12	TSSOP-14_L5.0-W4.4-P0.65-LS6.4-BL	1
24	LM358DR2G	U20	SOIC-8_L5.0-W4.0-P1.27-LS6.0-BL	1
25	Header-Male-2.54_1x2	P1,P2,P3	HDR-2X1/2.54	3
26	300	R7,R8,R9,R10,R12,R13,R38,R51	R0603	8
27	15	R55	R0603	1
28	SN74HC14PWR	U3,U4	TSSOP-14_L5.0-W4.4-P0.65-LS6.4-BL	2
29	TLP521-4XSM	U13,U14	SMD-16_L20.0-W6.5-P2.54-LS10.2-BL	2
30	11K	R34	R0805	1
31	20K	R35	R0805	1
32	SN74LVC1G11DBVR	U9,U10,U11	SOT-23-6_L2.9-W1.6-P0.95-LS2.8-BR	3
33	19-217/BHC-ZL1M2RY/3T	3V3,5V,5V_ISO	LED0603-R-RD	3
34	2.2uF	C2	C1206	1
35	VIN	H9	HDR-TH_2P-P2.54-V	1
36	GND	H10,H11	HDR-TH_2P-P2.54-V	2
37	5V	H12	HDR-TH_2P-P2.54-V	1
38	VIN-5V	H13	HDR-TH_2P-P2.54-V	1
39	2nd Output VIN	H15	HDR-TH_2P-P2.54-V	1
40	56	R56	R0805	1
41	B0505S-1WR3	U1	PWRM-TH_B0503S-1WR2	1
